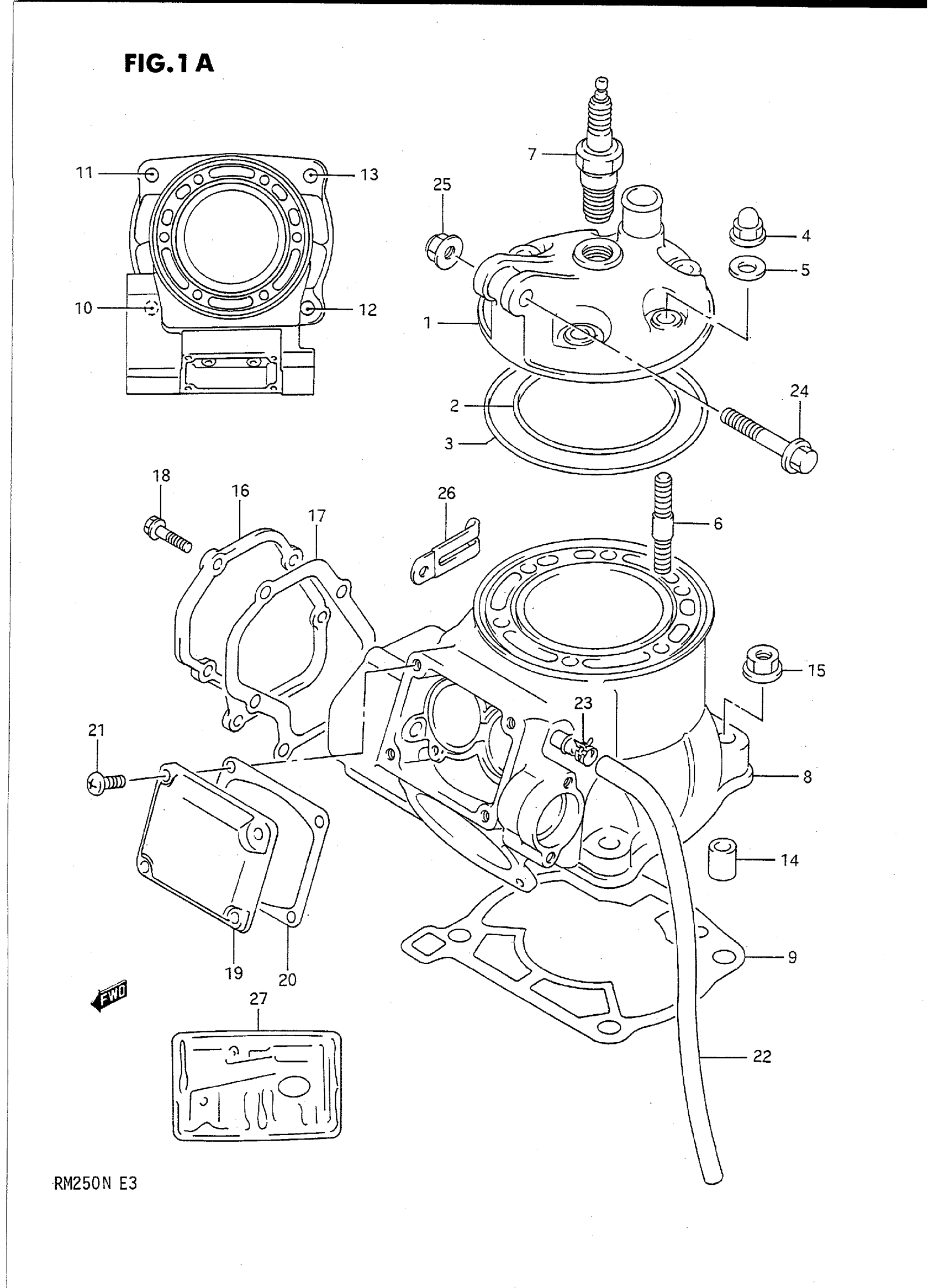

Suzuki RM250N (1992) CYLINDER (MODEL M/N) Diagram

#

Description
Price

1

HEAD, CYLINDER | MODEL M This part replaces 11111-28C20.

11111-28C30

Unavailable

1

HEAD, CYLINDER | MODEL N

11111-28C30

Unavailable

2

O RING, CYLINDER HEAD NO.1

11147-28C20

$12.63

3

O RING, CYLINDER HEAD NO.2

11148-28C20

$7.60

4

NUT

09159-08074

$5.36

5

WASHER

09168-08021

$2.61

6

STUD BOLT (8X38) This part replaces 09108-08227.

09108-08231

$3.42

7

SPARK PLUG (NGK,B8EGV) | MODEL M

09482-00208

Unavailable

7

SPARK PLUG (NGK,R4118S-8) | MODEL N

09482-00499

Unavailable

8

CYLINDER | MODEL M

11200-28830

Unavailable

8

CYLINDER | MODEL N This part replaces 11200-28840.

11200-28860

Unavailable

9

GASKET, CYLINDER | MODEL M This part replaces 11241-28C10.

11241-28C11

$17.40

9

GASKET, CYLINDER | MODEL N

11241-28C11

$17.40

10

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

11

BOLT,STUD This part replaces 01421-10358.

01421-1035A

$2.62

12

STUD BOLT (L:40) This part replaces 01421-10408.

01421-1040A

$2.62

13

STUD BOLT This part replaces 01421-10458.

01421-10457

$3.91

14

PIN This part replaces 09206-13006.

09206-13017

$7.61

15

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

16

COVER, CYLINDER NO.1

11231-28C20

Unavailable

17

GASKET, CYLINDER COVER NO.1 This part replaces 11233-28C20.

11233-28C21

Unavailable

18

BOLT

01547-06167

$1.65

19

COVER, CYLINDER NO.2

11248-28C20

Unavailable

20

GASKET, CYLINDER COVER NO.2 This part replaces 11238-28C00.

11238-05D01

Unavailable

21

SCREW This part replaces 02112-05168.

02112-05167

$1.97

22

HOSE, EX VALVE BREATHER

09343-09501

$11.61

23

CLIP This part replaces 09401-12407.

09401-12405

$2.26

24

BOLT (8X45)

09103-08043

$3.18

25

NUT | MODEL M

09159-08067

$5.57

25

NUT | MODEL N

09159-08034

$1.62

26

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

27

NO DESCRIPTION AVAILABLE | MODEL M OPT This part replaces 11401-28820.

11401-28824

Unavailable

27

NO DESCRIPTION AVAILABLE | MODEL N OPT This part replaces 11401-28821.

11401-28824

Unavailable
