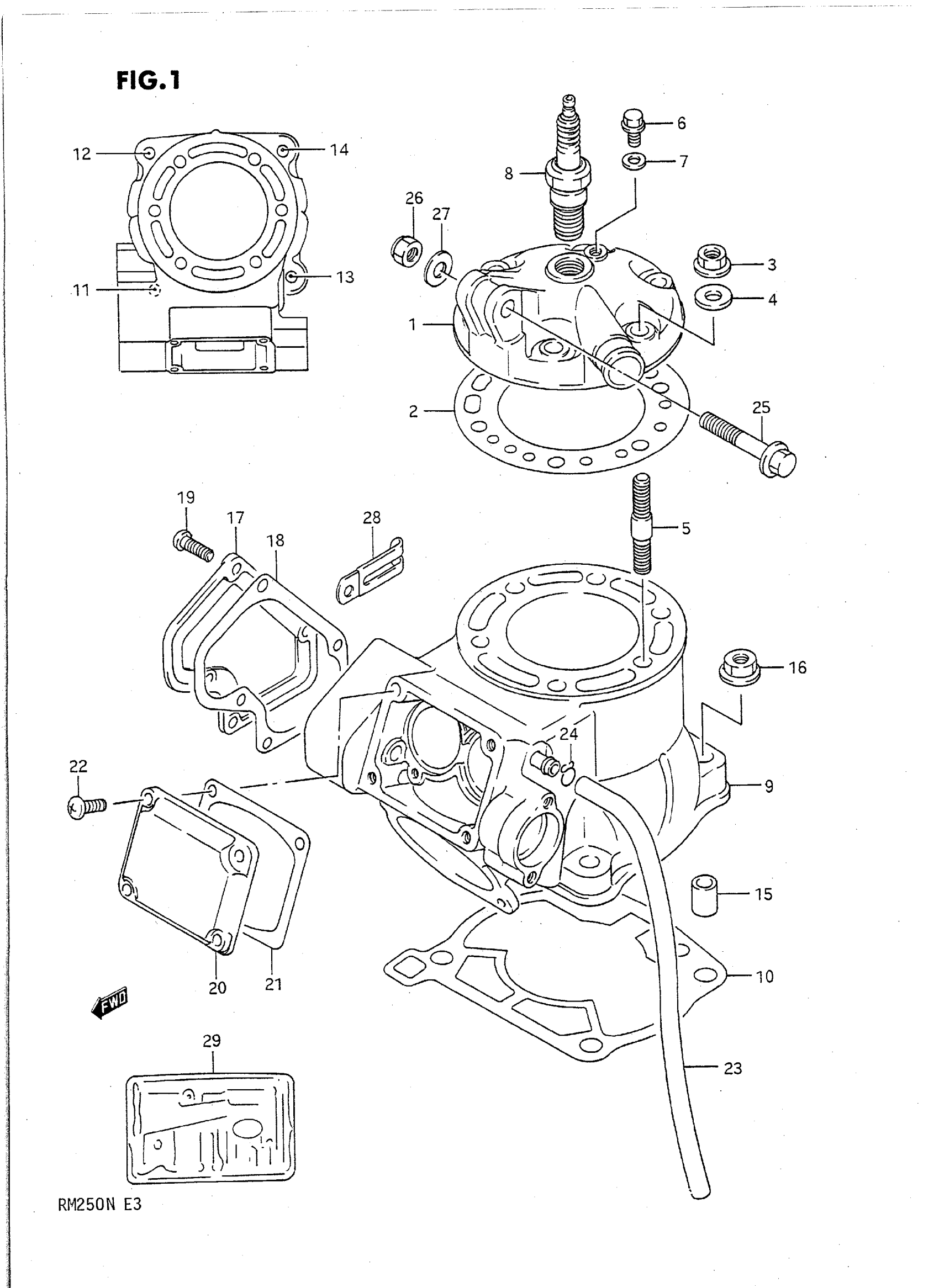

Suzuki RM250N (1992) CYLINDER (MODEL K/L) Diagram

#

Description
Price

1

HEAD, CYLINDER | MODEL K This part replaces 11111-28C00.

11111-28C10

Unavailable

1

HEAD, CYLINDER | MODEL L

11111-28C10

Unavailable

2

GASKET, CYLINDER HEAD | MODEL K This part replaces 11141-28C00.

11141-28C10

Unavailable

2

GASKET, CYLINDER HEAD | MODEL L

11141-28C10

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

WASHER (8.5X19X2.3) This part replaces 09160-08095.

09160-08039

$2.03

5

STUD BOLT (L:30)

09108-08224

Unavailable

6

BOLT, AIR DUCT

09360-06007

$2.30

7

GASKET

09168-06004

$1.49

8

SPARK PLUG (NGK,B8EGV)

09482-00208

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 11200-28810.

11200-28821

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 11200-28820.

11200-28821

Unavailable

10

GASKET, CYLINDER This part replaces 11241-28C00.

11241-28C11

$17.40

11

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

12

BOLT,STUD This part replaces 01421-10358.

01421-1035A

$2.62

13

STUD BOLT (L:40) This part replaces 01421-10408.

01421-1040A

$2.62

14

STUD BOLT This part replaces 01421-10458.

01421-10457

$3.91

15

PIN This part replaces 09206-13001.

04211-13189

$2.19

16

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

17

COVER, CYLINDER NO. 1 This part replaces 11231-28C00.

11231-29E01

Unavailable

18

GASKET, CYLINDER COVER NO. 1 This part replaces 11233-28C01.

11233-29E00

Unavailable

19

SCREW This part replaces 02112-05168.

02112-05167

$1.97

20

COVER, CYLINDER NO.2 This part replaces 11248-28C01.

11248-28C20

Unavailable

21

GASKET, CYLINDER COVER NO.2 This part replaces 11238-28C00.

11238-05D01

Unavailable

22

SCREW This part replaces 02112-05168.

02112-05167

$1.97

23

HOSE(7X10.2X600 | MODEL K This part replaces 09352-70103-300.

09352-70104-600

$5.63

23

HOSE | MODEL L

09343-09501

$11.61

24

CLIP

09401-13409

$2.12

25

BOLT, MUF SPRT,RR | MODEL K This part replaces 01517-08457.

01550-08457

$4.00

25

BOLT (8X45) | MODEL L

09103-08043

$3.18

26

NUT | MODEL K This part replaces 08319-21088.

08319-2108A

$2.12

26

NUT | MODEL L

09159-08067

$5.57

27

WASHER This part replaces 08322-11088.

08322-01087

$2.13

28

CLAMP (L:60) | MODEL L This part replaces 09404-05401.

09404-06429

$1.83

29

NO DESCRIPTION AVAILABLE | MODEL K OPT This part replaces 11400-28891.

11400-28898

Unavailable

29

NO DESCRIPTION AVAILABLE | MODEL L OPT This part replaces 11401-28810.

11401-28816

Unavailable
