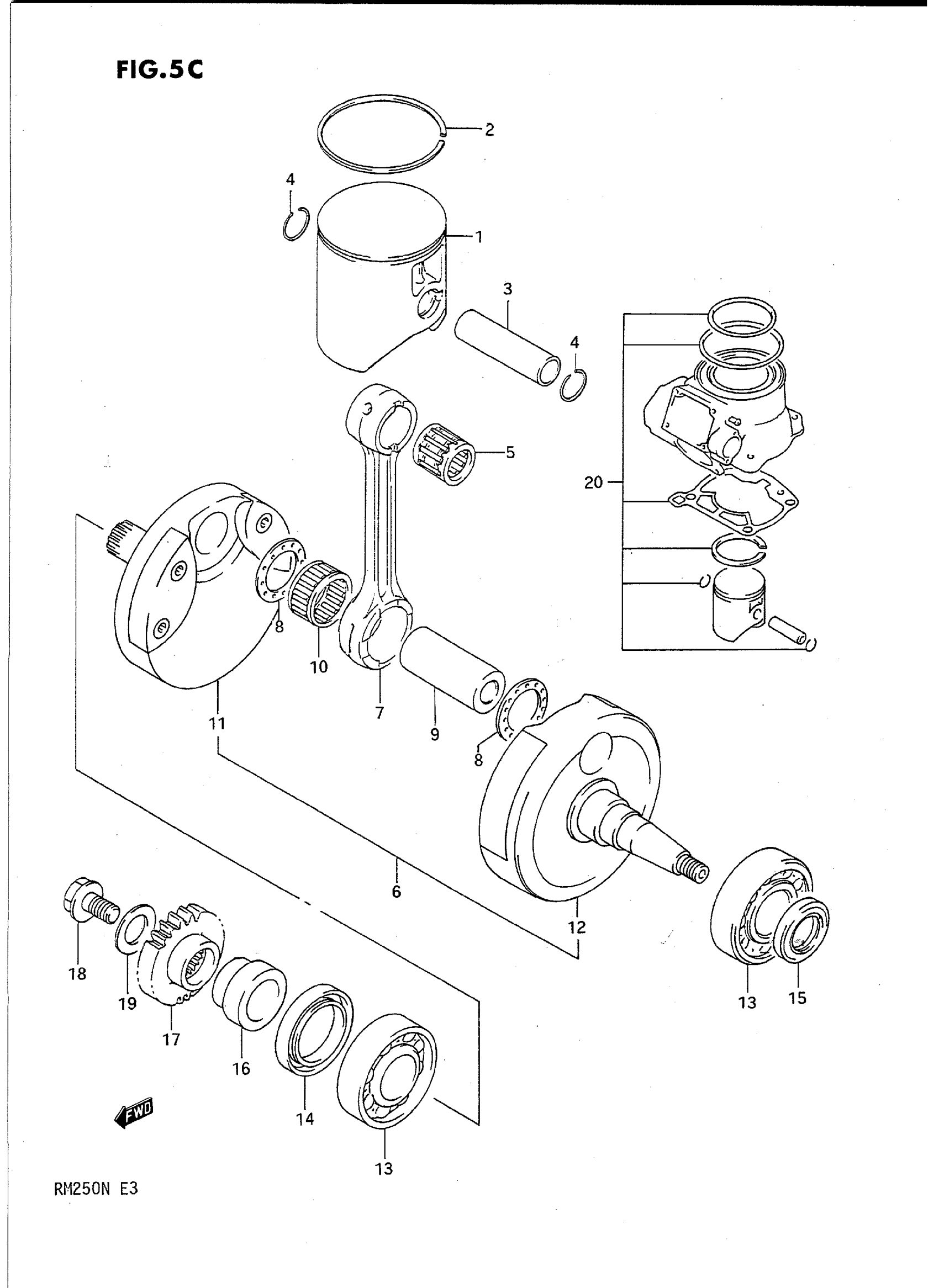

Suzuki RM250N (1992) CRANKSHAFT (MODEL N) Diagram

#

Description
Price

1

PISTON This part replaces 12110-28C40-0F0.

12110-29E20-0F0

Unavailable

2

RING, PISTON

12141-28C10

Unavailable

3

PIN, PISTON This part replaces 12151-28C00.

12151-37F00

$14.15

4

CIRCLIP

09381-18002

$1.67

5

BEARING, PISTON PIN

09263-18016

$19.93

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12 This part replaces 12200-28C30.

12200-28E00

Unavailable

7

ROD, CONNECTING

12161-28C30

Unavailable

8

WASHER

09160-24027

$23.13

9

PIN, CRANK This part replaces 12211-28C10.

12211-05D00

$43.33

10

BEARING

09263-24026

$69.90

11

CRANKSHAFT, RH This part replaces 12220-28C30.

12220-28E00

Unavailable

12

CRANKSHAFT, LH This part replaces 12260-28C30.

12260-28E00

Unavailable

13

BEARING

09262-25108

Unavailable

14

OIL SEAL, RH (36X52X7)

09283-36007

Unavailable

15

OIL SEAL, LH (20X37X6)

09283-20051

Unavailable

16

SPACER This part replaces 12359-28C20.

12359-00B20

Unavailable

17

GEAR, PRIMARY DRIVE (NT:23) This part replaces 21111-14310.

21111-14321

Unavailable

18

BOLT, PRIMARY DRIVE GEAR This part replaces 21141-27C11.

09103-10339

$9.32

19

WASHER

09164-11004

$5.47

20

TOP END KIT, EN | OPT This part replaces 12100-28881.

12101-28812

Unavailable
