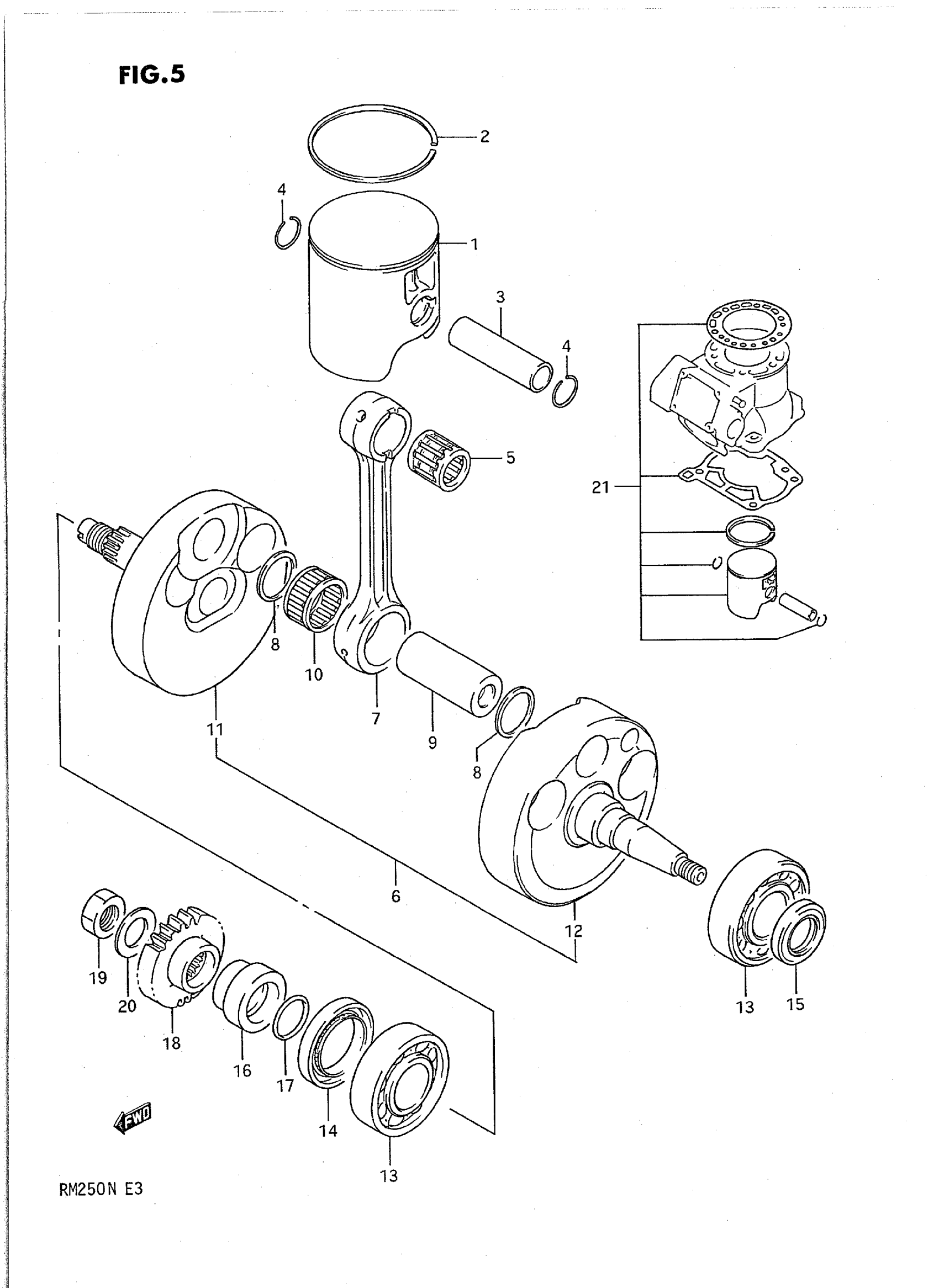

Suzuki RM250N (1992) CRANKSHAFT (MODEL K) Diagram

#

Description
Price

1

PISTON This part replaces 12110-28C11-0F0.

12110-29E20-0F0

Unavailable

2

RING, PISTON This part replaces 12141-41600.

12141-41620

$25.78

3

PIN, PISTON This part replaces 12151-28C00.

12151-37F00

$14.15

4

CIRCLIP

09381-18002

$1.67

5

BEARING, PISTON PIN

09263-18016

$19.93

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-28C00

Unavailable

7

ROD, CONNECTING This part replaces 12161-00B00.

12161-05D00

Unavailable

8

WASHER

09160-24015

Unavailable

9

PIN, CRANK

12210-00B20

Unavailable

10

BEARING This part replaces 09263-24023.

09263-24026

$69.90

11

CRANKSHAFT, RH

12221-28C00

Unavailable

12

CRANKSHAFT, LH This part replaces 12261-28C00.

12261-28C01

Unavailable

13

BEARING

09262-25066

Unavailable

14

OIL SEAL, RH (36X52X7) This part replaces 09283-36006.

09283-36007

Unavailable

15

OIL SEAL, LH (20X37X6) This part replaces 09283-20046.

09283-20051

Unavailable

16

SPACER

12359-00B20

Unavailable

17

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

18

GEAR, PRIMARY DRIVE (NT:23) This part replaces 21111-14310.

21111-14321

Unavailable

19

NUT

09140-16019

$3.70

20

WASHER

09164-16002

$3.16

21

NO DESCRIPTION AVAILABLE | OPT This part replaces 12100-28852.

12100-28855

Unavailable
