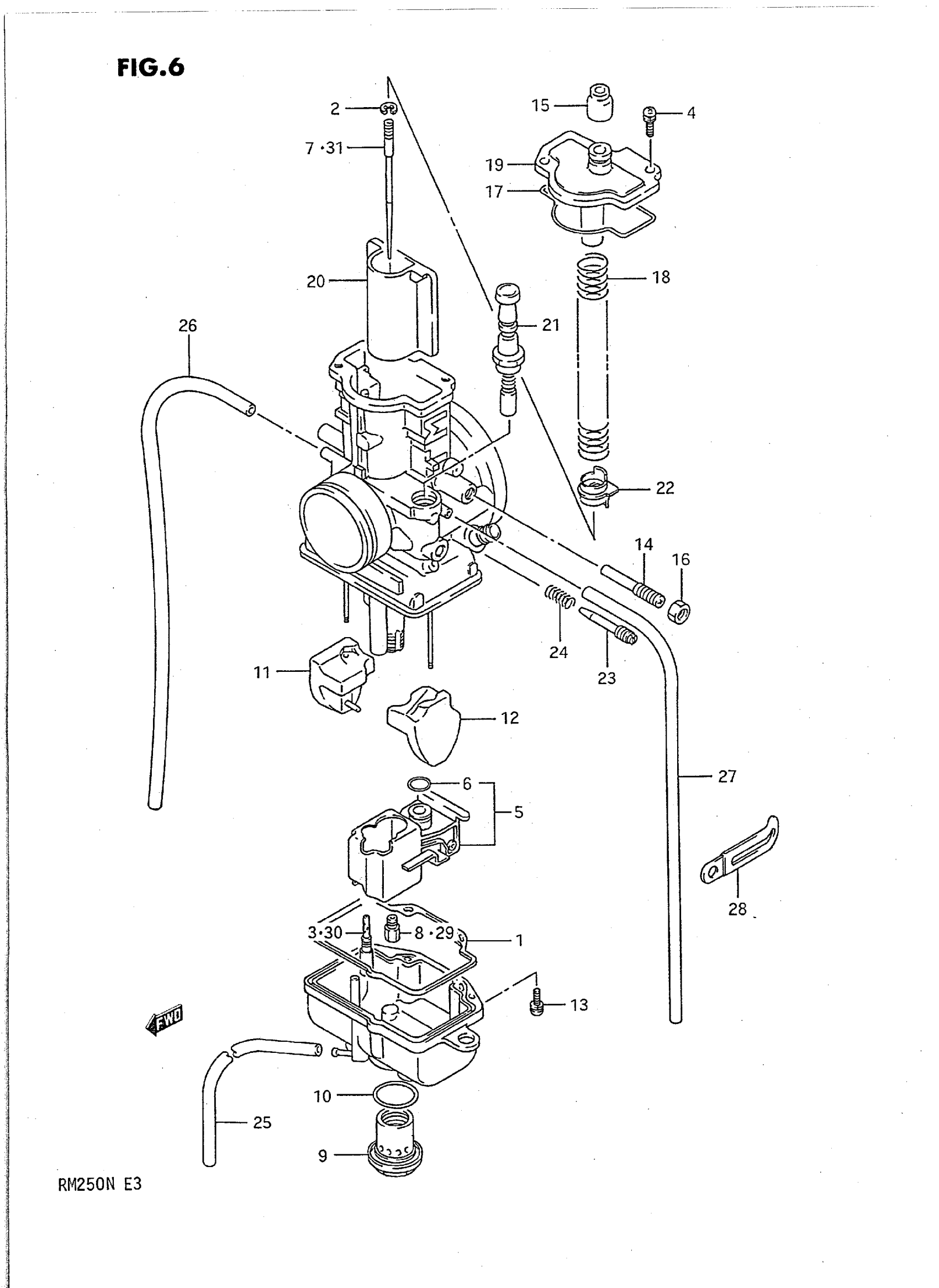

Suzuki RM250N (1992) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | MODEL K This part replaces 13200-28C00.

13200-28C10

Unavailable

CARBURETOR ASSY | MODEL L

13200-28C10

Unavailable

CARBURETOR ASSY | MODEL M This part replaces 13200-28C20.

13200-28C40

Unavailable

CARBURETOR ASSY | MODEL N; Includes Item(s) 1 - 24

13200-28C40

Unavailable

1

O RING, FLOAT CHAMBER

13696-26C00

Unavailable

2

E RING

13394-31210

$4.64

3

JET, PILOT (55) | MODEL K

09492-55013

Unavailable

3

JET, PILOT (50) | MODEL L/M

09492-50018

$17.37

3

JET, PILOT (45) | MODEL N

09492-45026

$17.88

4

SCREW This part replaces 13601-04128.

02112-3412B

$2.30

5

VALVE ASSY,NEED This part replaces 13370-26C00.

13370-26C01

Unavailable

6

O RING This part replaces 13374-44080.

13374-35C00

$5.99

7

NEEDLE, JET (6AEJ01-62-3) | MODEL K

13383-28C00

Unavailable

7

NEEDLE, JET (6AEJ01-63-4) | MODEL L

13383-28C20

Unavailable

7

NEEDLE, JET (6AEL01-60-3) | MODEL M

13383-28C70

Unavailable

7

NEEDLE, JET (6AFL01-60-3) | MODEL N

13383-28C90

Unavailable

8

JET, MAIN (370)

09491-74003

$11.38

9

CAP, DRAIN

13247-27C00

Unavailable

10

O RING

13389-27C00

Unavailable

11

FLOAT, RH

13252-01B20

$41.15

12

FLOAT, LH

13252-01B21

Unavailable

13

SCREW This part replaces 02112-33086.

02112-3308A

$2.23

14

ADJUSTER

13279-26C00

Unavailable

15

.CAP This part replaces 13681-04010.

13681-04011

$4.93

16

NUT

13607-47070

$3.13

17

O RING, TOP CAP

13251-26C00

$12.10

18

SPRING, THROTTLE VALVE

13573-26C00

Unavailable

19

CAP, TOP

13261-26C00

Unavailable

20

VALVE, THROTTLE (CA:3.5)

13551-26C00

Unavailable

21

PLUNGER

13411-26C00

Unavailable

22

RING

13424-26C00

Unavailable

23

SCREW, PILOT (1 1/2)

13267-09400

$7.02

24

SPRING

13268-35010

$4.48

25

HOSE | MODEL K/L/MMODEL N This part replaces 09351-30503-600.

09351-30001-600

$3.57

26

HOSE, AIR VENT, RH (L:600->440 | MODEL K/L/MMODEL N

09351-35653-600

$4.64

27

HOSE, AIR VENT, LH (L:600->400

09351-35653-600

$4.64

28

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

29

JET, MAIN (330) | OPT

09491-66002

$11.38

29

JET, MAIN (340) | OPT

09491-68002

$11.38

29

JET, MAIN (350) | OPT

09491-70011

$11.38

29

JET, MAIN (390) | OPT

09491-78005

$11.83

29

JET, MAIN (400) | OPT

09491-80010

$11.83

29

JET, MAIN (410) | OPT

09491-82007

$12.88

29

JET, MAIN (420) | OPT

09491-84004

Unavailable

29

JET, MAIN (430) | OPT

09491-86002

$11.83

29

JET, MAIN (440) | OPT

09491-88001

$18.02

30

JET, PILOT (35) | OPT

09492-35016

Unavailable

30

JET, PILOT (40) | OPT This part replaces 09492-40020.

09492-40021

$16.78

30

JET, PILOT (45) | OPT

09492-45026

$17.88

30

JET, PILOT (50) | OPT

09492-50018

$17.37

30

JET, PILOT (55) | OPT

09492-55013

Unavailable

30

JET, PILOT (60) | OPT

09492-60013

Unavailable

30

JET, PILOT (65) | OPT

09492-65007

Unavailable

30

JET, PILOT (70) | OPT

09492-70008

Unavailable

31

NEEDLE, JET (6AEJ01-59) | MODEL K/L OPT

13383-28C40

Unavailable

31

NEEDLE, JET (6AEJ01-60) | MODEL K/L OPT

13383-28C30

Unavailable

31

NEEDLE, JET (6AEJ01-61) | MODEL K/L OPT

13383-28C10

Unavailable

31

NEEDLE, JET (6AEJ01-62) | MODEL K/L OPT

13383-28C00

Unavailable

31

NEEDLE, JET (6AEJ01-63) | MODEL K/L OPT

13383-28C20

Unavailable

31

NEEDLE, JET (6AEJ01-64) | MODEL K/L OPT

13383-28C50

Unavailable

31

NEEDLE, JET (6AEL01-59) | MODEL M OPT

13383-28C60

Unavailable

31

NEEDLE, JET (6AEL01-61) | MODEL M OPT

13383-28C80

Unavailable

31

NEEDLE, JET (6AFL01-59) | MODEL N OPT

13383-28CA0

Unavailable

31

NEEDLE, JET (6AFL01-61) | MODEL N OPT

13383-28CB0

Unavailable
