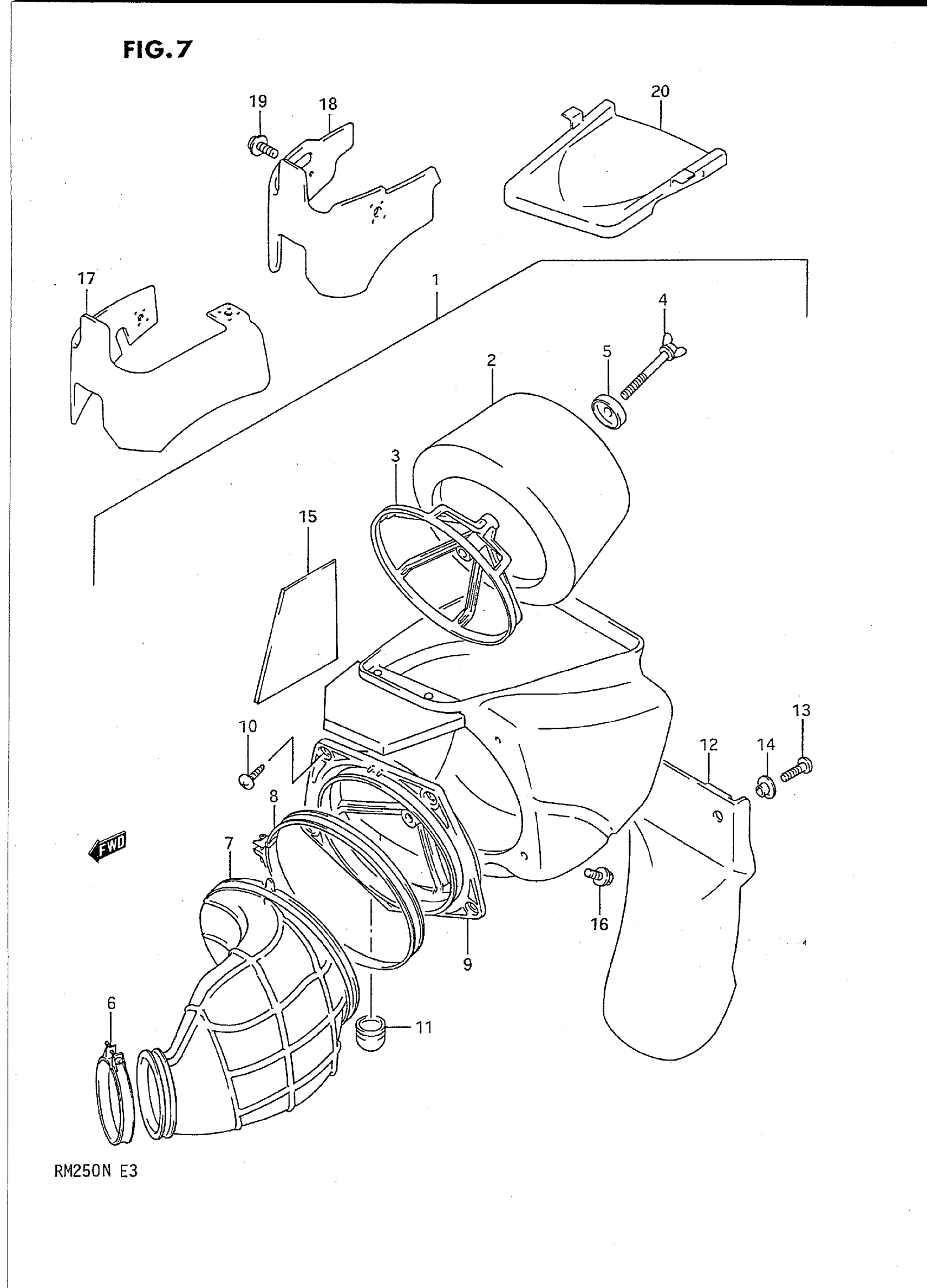

Suzuki RM250N (1992) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL K

13700-28C00

Unavailable

1

CLEANER ASSY, AIR | MODEL L

13700-28C10

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/N; Includes Item(s) 2 - 15 This part replaces 13700-28C30.

13700-28C32

Unavailable

2

FILTER | MODEL K This part replaces 13780-00B20.

13780-28C10

Unavailable

2

FILTER | MODEL L/M/N

13780-28C10

Unavailable

3

HOLDER, FILTER

13791-00B20

Unavailable

4

BOLT, WING

13831-02B00

$5.80

5

WASHER

13792-13A01

$4.34

6

CLAMP

09402-68208

$5.58

7

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 13881-28C00.

13881-28C01

Unavailable

7

TUBE, OUTLET | MODEL M/N

13881-28C20

Unavailable

8

CLAMP | MODEL K/L This part replaces 13826-01B20.

13826-43D00

Unavailable

8

CLAMP | MODEL M/N This part replaces 13826-01B21.

13826-43D00

Unavailable

9

BASE, FILTER This part replaces 13790-01B21.

13790-05D00

Unavailable

10

SCREW This part replaces 03242-05124.

03241-0512A

$1.49

11

TUBE, DRAIN | MODEL K/L

13878-00B20

Unavailable

12

GUARD, MUD

13738-01B00

Unavailable

13

SCREW

02142-06167

$1.49

14

SPACER

13838-02B00

$3.56

15

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 13815-28C30.

13815-28C31

Unavailable

16

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

17

GUARD, MUD | MODEL K

13739-27C00

Unavailable

18

GUARD, MUD | MODEL L/M This part replaces 13739-05D00.

13739-43D00

Unavailable

18

GUARD, MUD | MODEL N

13739-43D00

Unavailable

19

SCREW (6X12) | MODEL L/M/N

09136-06004

$2.15

20

CAP, AIR CLEANER | MODEL L/M/N

13741-27C10

Unavailable
