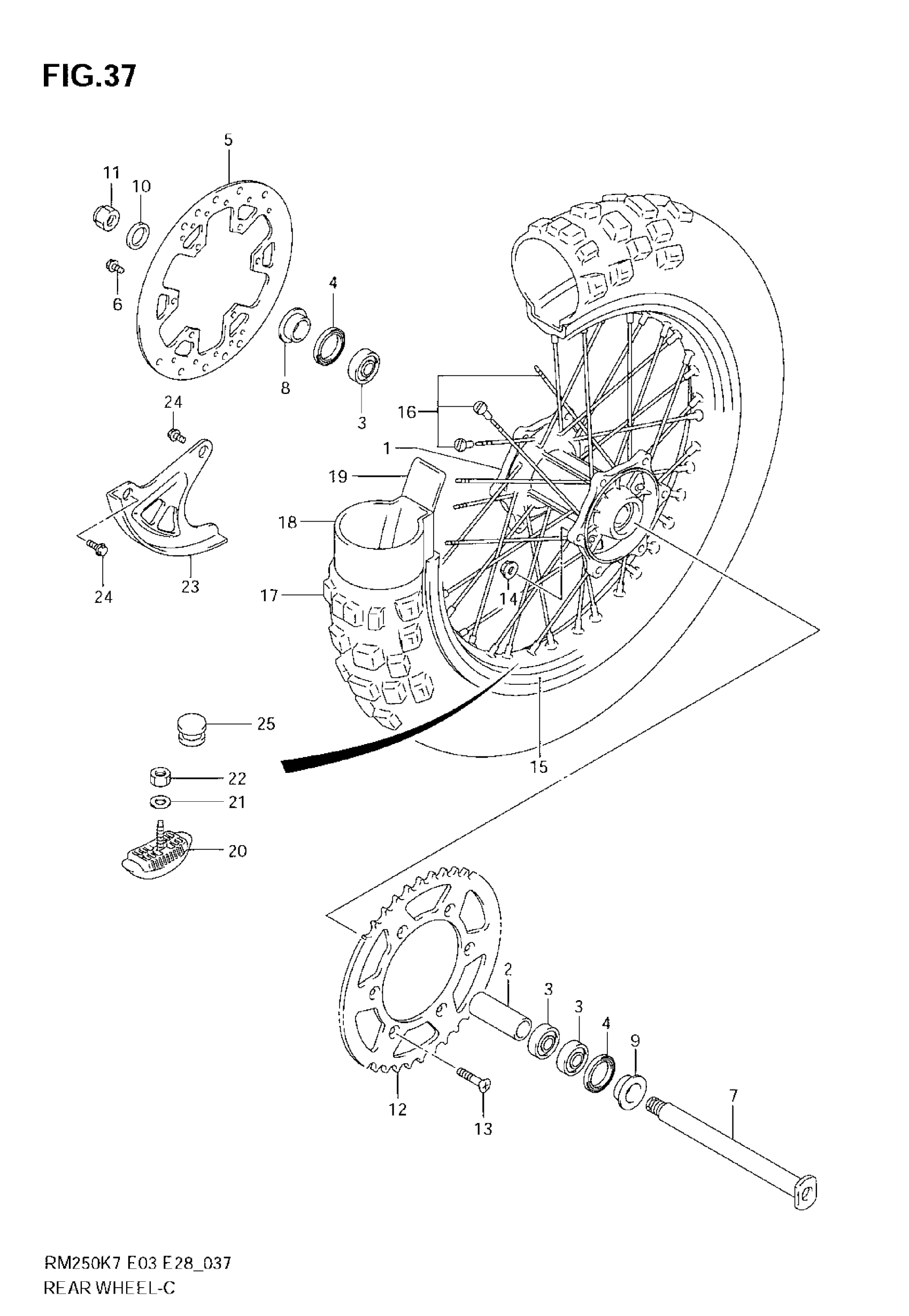

Suzuki RM250 (2008) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-36E00

$463.55

2

SPACER, BEARING (22.5X30X102)

64731-36E00

$39.37

3

BEARING (22X44X12)

09262-22033

$31.73

4

SEAL, DUST (30X44X7)

09283-30023

$7.25

5

DISC, REAR BRAKE

69211-37F20

$213.37

6

BOLT

09103-06280

$3.03

7

AXLE, REAR

64711-37F00

$110.77

8

SPACER, RH

64751-36E00

$32.12

9

SPACER, LH

64751-36E00

$32.12

10

WASHER

09160-19022

$4.90

11

NUT

09159-18007

$19.68

12

SPROCKET,RR (NT:50)

64511-36E00

$126.60

12

SPROCKET,RR (NT:49) | OPT

64511-28E00

$120.85

12

SPROCKET,RR (NT:48) | OPT

64511-37E00

$175.05

12

SPROCKET, REAR (NT:51) | OPT

64511-40261

$155.22

13

SCREW (8X30.5)

09120-08017

$2.62

14

NUT

09159-08067

$5.57

15

RIM, REAR WHEEL (2.15X19)

65311-37E00

Unavailable

16

SPOKE SET, WHEEL

65320-37F20

$195.10

17

TIRE, REAR (110/90-19) (BRIDGESTONE) | E3

65110-37F60

Unavailable

17

TIRE, REAR (110/90-19) (BRIDGESTONE) | E28

65110-37F40

Unavailable

18

TUBE This part replaces 65200-28C20.

55200-44611

$33.73

19

PROTECTOR,WHL I This part replaces 65261-28C20.

65261-28C21

$6.00

20

STOPPER, BEAD

65270-28E00

$58.75

21

WASHER

08322-0108B

$2.34

22

NUT

08310-0008B

$2.70

23

COVER, REAR DISC This part replaces 69231-37F11.

69231-37F12

$14.65

24

BOLT

09116-06197

$2.71

25

CAP

09250-08013

$2.68
