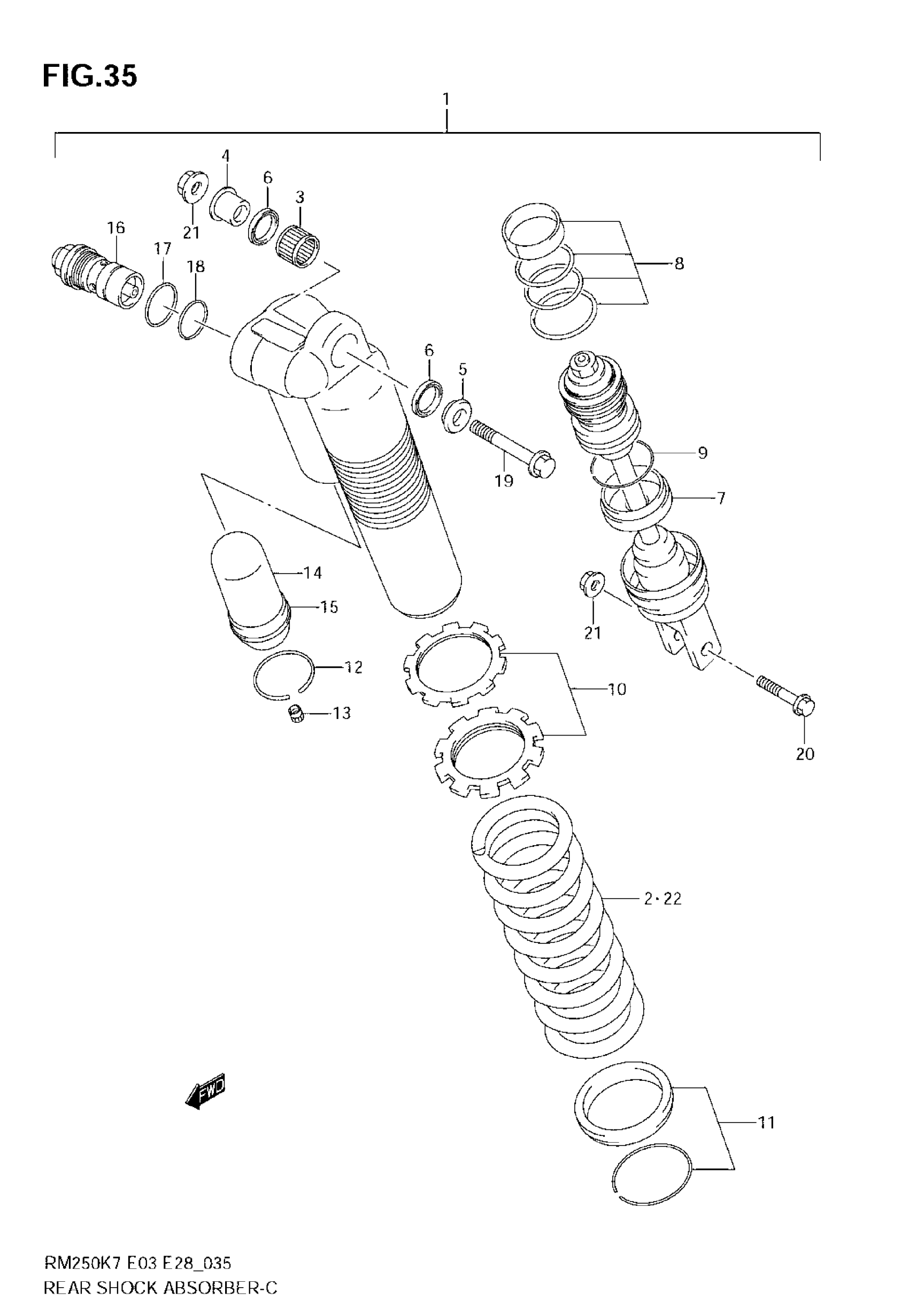

Suzuki RM250 (2008) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, RR SHOCK (RED) | E3

62100-37FL0-YKS

Unavailable

1

ABSORBER ASSY, RR SHOCK (RED) | E28; Includes Item(s) 2 - 18

62100-37FK0-YKS

Unavailable

2

SPRING (K=5.3)

62211-37FK0

Unavailable

3

BEARING (16X22X12)

09263-16033

$20.26

4

.SPACER,UPPER BRG,R

62684-36F00

$23.07

5

.SPACER,UPPER BRG,L

62685-36F00

$13.36

6

OIL SEAL (16X22X2.5)

09284-16005

$6.95

7

ROD, PISTON

62120-37FJ0

Unavailable

8

O RING SET

62150-36EB0

$71.38

9

RING, STOPPER

62279-36E80

$6.85

10

ADJUSTER SET

62190-36F00

$116.65

11

SPRING SEAT SET

62220-36F00

$86.03

12

RING, STOPPER

62278-36E00

$8.60

13

CAP

51294-20400

$7.37

14

BLADDER

62273-36F00

$63.97

15

CAP, CHAMBER

62275-36E00

$64.30

16

BOLT, PLUG

62130-37FJ0

Unavailable

17

O RING

62131-28E00

$5.00

18

O RING

51174-43D00

$4.82

19

BOLT

09103-10360

$5.52

20

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

21

NUT

09159-10067

$6.11

22

SPRING (SOFT,K=4.8) | OPT

62211-37FH0

Unavailable

22

SPRING (SOFT,K=5.1) | OPT

62211-37FJ0

Unavailable

22

SPRING (HARD,K=5.5) | OPT

62211-37FL0

Unavailable

22

SPRING (HARD,K=5.6) | OPT

62211-37FM0

Unavailable
