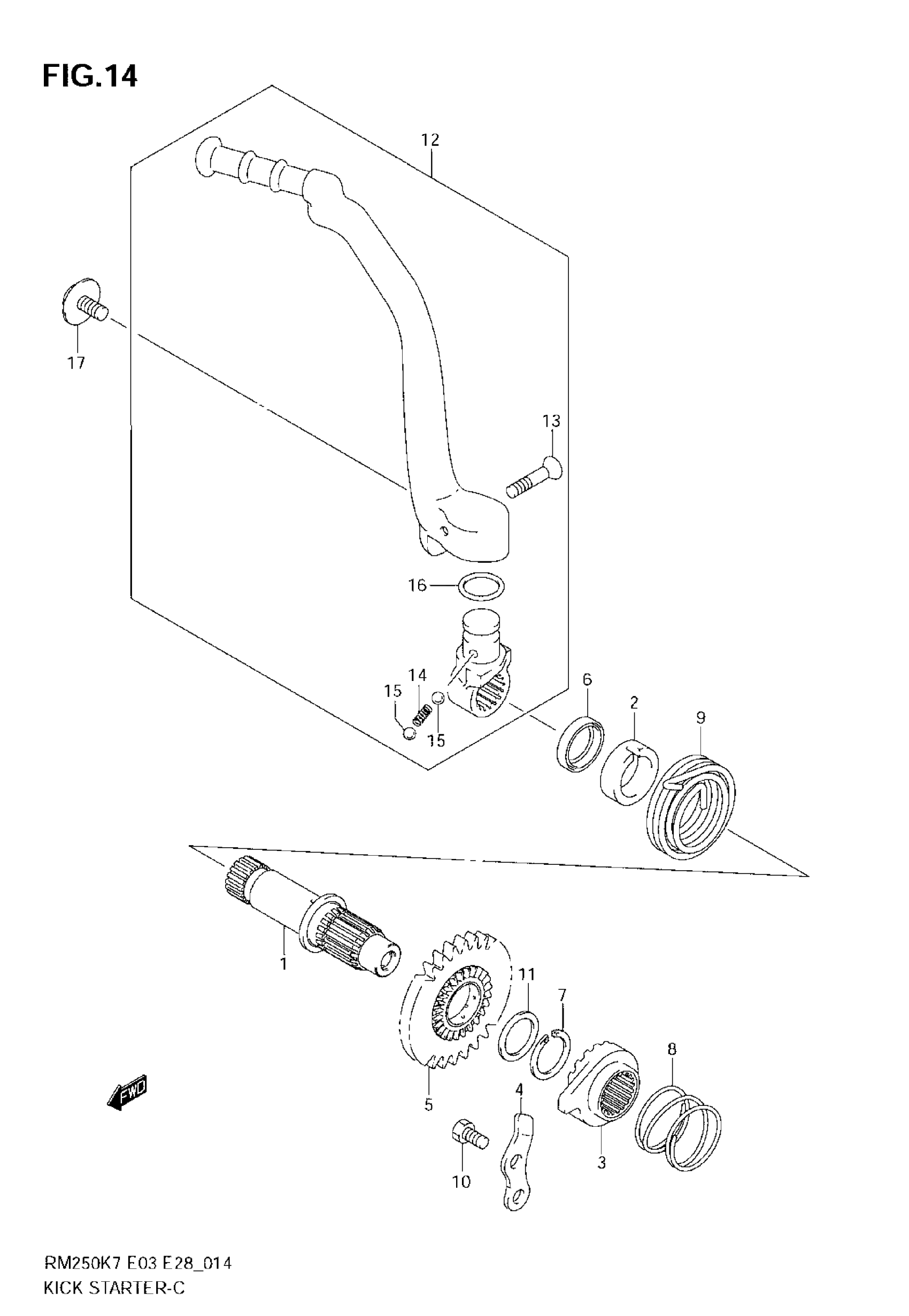

Suzuki RM250 (2008) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-37F00

$117.48

2

GUIDE, KICK STARTER

26221-01B01

$4.35

3

STARTER, KICK

26231-37F00

Unavailable

4

GUIDE, KICK STARTER

26232-40200

$7.08

5

GEAR, KICK STARTER DRIVE | NT:28

26240-37F00

Unavailable

6

SEAL, KICK SHAFT OIL | 20X27X5

09283-20031

$5.24

7

CIRCLIP, KICK GEAR

09380-22006

$3.10

8

SPRING, KICK STOPPER

09440-32002

$2.27

9

SPRING, KICK STARTER SHAFT

09448-48012

$13.59

10

BOLT, KICK STOPPER

01500-0612B

$2.47

11

WASHER, KICK DRIVE GEAR

09181-22139

$3.48

12

LEVER ASSY,KICK | Includes Item(s) 13 - 16 This part replaces 26300-37F20.

26300-37F21

$298.57

13

SCREW, KICK STARTER LEVER | 6X27.5

09127-06016

$2.96

14

SPRING, KICK STARTER LEVER

09440-05031

$1.49

15

BALL

06111-07004

$1.49

16

.O-RING This part replaces 26313-28E20.

26313-28E21

$2.17

17

BOLT, KICK STARTER LEVER

09103-08340

$4.17
