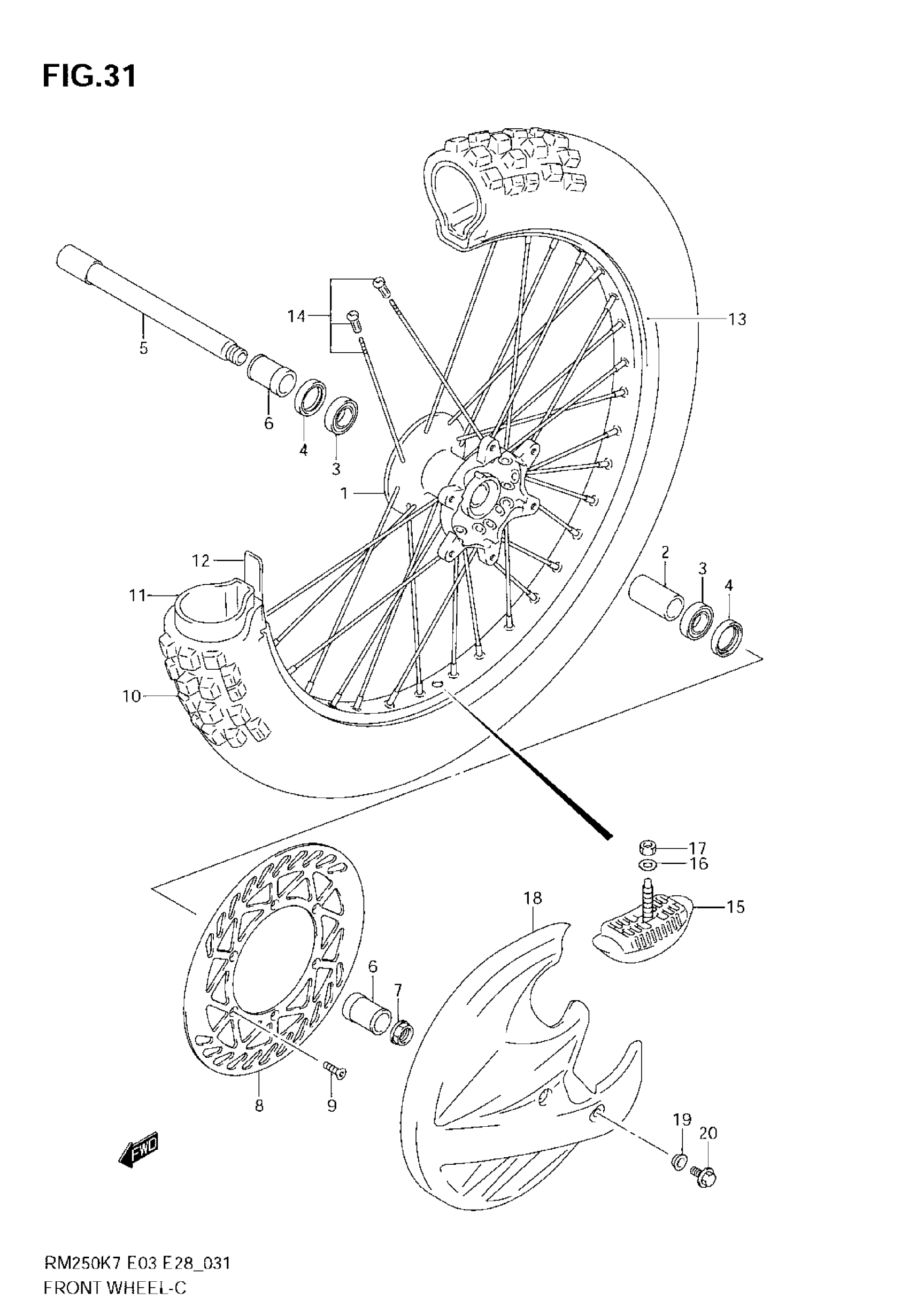

Suzuki RM250 (2008) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-36E00

$307.87

2

SPACER, FRONT HUB (20.5X27.3X50)

54731-36E00

$21.35

3

BEARING This part replaces 08130-69047.

08130-6904B

$43.88

4

SEAL, FRONT HUB (28X37X7)

09283-28023

$10.19

5

AXLE, FRONT

54711-37F00

$106.95

6

SPACER, AXLE (L:41)

54741-37F01

$29.10

7

NUT

09159-18016

$12.48

8

DISC, FRONT BRAKE

59220-37F20

Unavailable

9

SCREW

09120-06014

$2.45

10

TIRE, FRONT (80/100-21) (BRIDGESTONE) | E3

55110-37F60

Unavailable

10

TIRE, FRONT (80/100-21) (BRIDGESTONE) | E28

55110-37F40

Unavailable

11

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

12

PROTECTOR, INNER TUBE This part replaces 55261-28330.

55261-14540

$3.83

13

RIM, FRONT WHEEL (1.60X21)

55311-28C01

Unavailable

13

RIM, FRONT WHEEL (1.85X20) | OPT

55311-37F00

Unavailable

14

SPOKE SET, FRONT WHEEL

55320-37F10

$165.58

14

SPOKE SET, FRONT WHEEL (20 INCH) | OPT

55320-37F00

Unavailable

15

STOPPER, BEAD

65270-14300

$52.73

16

WASHER

08322-0108B

$2.34

17

NUT

08310-0008B

$2.70

18

COVER, FRONT BRAKE DISC | OPT

59231-36E20-YU1

$68.80

19

WASHER (6.3X16X1) | OPT

09169-06053

$1.49

20

BOLT | OPT

09103-06233

$2.11
