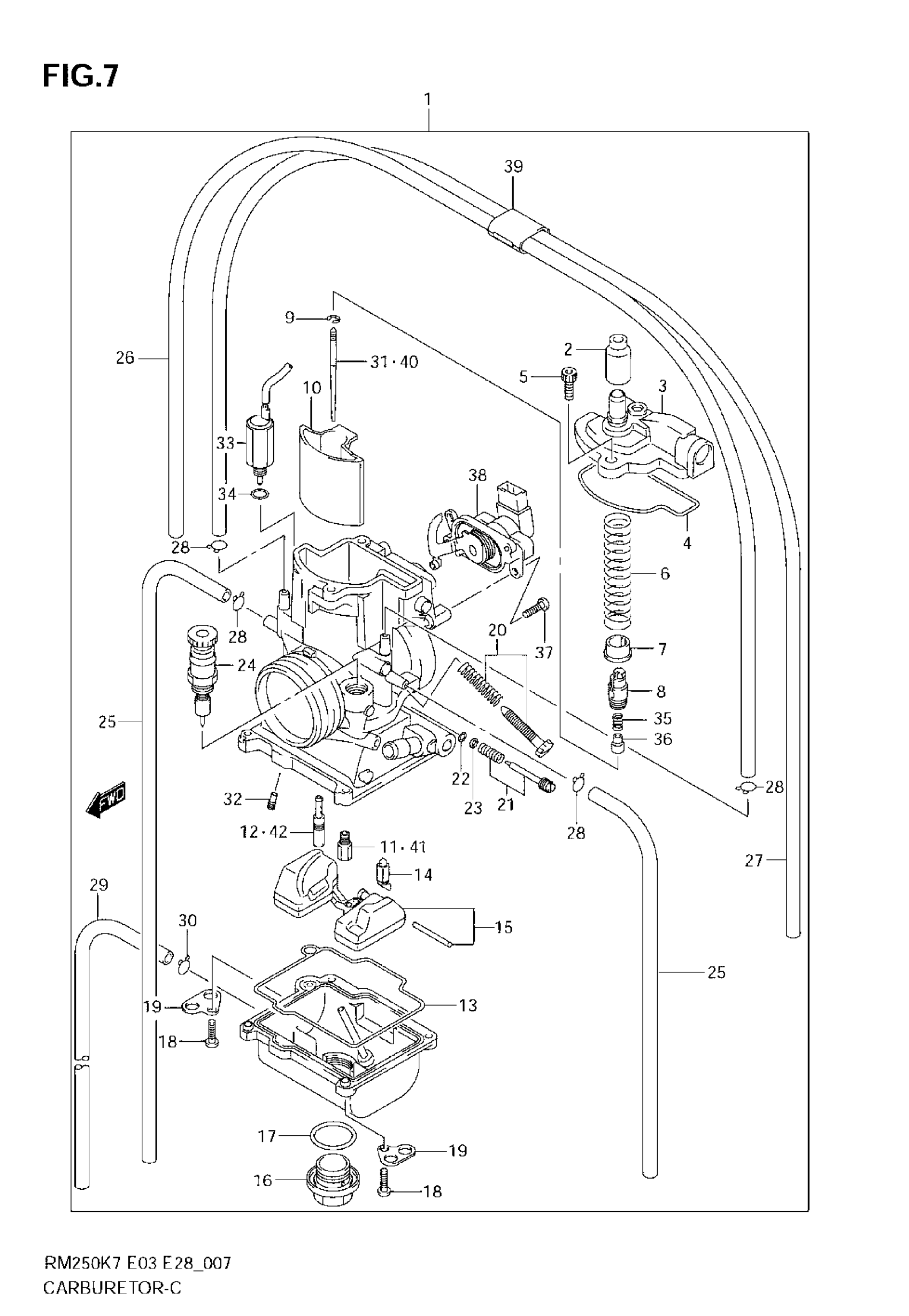

Suzuki RM250 (2008) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | E3

13200-37FA0

Unavailable

1

CARBURETOR ASSY | E28; Includes Item(s) 2 - 39

13200-37FB0

Unavailable

2

CAP, CARBURETOR

13681-43D30

$10.23

3

TOP

13261-37F80

Unavailable

4

O RING

13262-37F80

$9.55

5

SCREW

13262-37F00

$6.87

6

SPRING, THROTTLE VALVE

13573-37F00

$16.93

7

COLLAR, THROTTLE VALVE

13424-43D30

$6.00

8

HOLDER, CABLE

13581-37F80

$25.83

9

CLIP, NEEDLE

13394-28E00

$5.25

10

VALVE, THROTTLE

13551-37F80

Unavailable

11

JET, MAIN (168) | E3

09491-33010

$17.37

11

JET, MAIN (172) | E28

09491-34011

$17.37

12

JET, PILOT (48) | E3

09492-48013

$17.37

12

JET, PILOT (50) | E28

09492-50023

$17.37

13

GASKET, FLOAT CHAMBER

13696-44E00

$11.58

14

VALVE SET, FLOAT

13370-43D30

$53.17

15

FLOAT SET

13240-36E20

$76.88

16

BOLT, DRAIN

13247-28E00

$21.90

17

O RING

13246-28E00

$5.17

18

SCREW

13602-26E10

$4.62

19

PLATE

13693-36E00

$6.77

20

SCREW SET, STOP

13270-43D30

$19.13

21

SCREW SET, AIR | 1,1/2

13280-43D30

$25.75

22

O RING

13295-26E00

$4.34

23

WASHER

13291-26E00

$2.93

24

STARTER VALVE

13410-43D30

$91.08

25

HOSE (4X7X620) | RH L:620!400 LH L:620!360

13686-36E00

$10.28

26

HOSE (4X7X620) | L:620!600

13686-36E00

$10.28

27

HOSE (4X7X620) | L:620!550

13686-36E00

$10.28

28

CLIP

09401-06101

$2.03

29

HOSE (3.5X6.5X600) | L:600!300

09351-35653-600

$4.64

30

CLIP This part replaces 09401-05402.

09401-05402-XC0

$1.65

31

NEEDLE, JET | E3

13383-37FE0

$16.13

31

NEEDLE, JET | E28

13383-37FK0

$18.97

32

JET, POWER (45) | E3

13345-37F00

$17.37

32

JET, POWER (55) | E28

09492-55019

$18.02

33

SOLENOID ASSY

13160-37E01

$168.77

34

O RING

13453-37E00

$5.32

35

SPRING

13582-37F80

$5.10

36

COLLAR

13583-37F80

$5.98

37

SCREW

13602-37F00

Unavailable

38

SENSOR ASSY

13580-37F80

$297.98

39

CLIP

13451-37F00

$6.23

40

NEEDLE, JET (NECF) | OPT

13383-37FA0

$20.45

40

NEEDLE, JET (NECG) | OPT

13383-37FB0

$19.72

40

NEEDLE, JET (NECH) | OPT

13383-37FC0

$16.67

40

NEEDLE, JET (NECW) | OPT

13383-37FD0

$16.43

40

NEEDLE, JET (NECJ) | OPT

13383-37FE0

$16.13

40

NEEDLE, JET (NECK) | OPT

13383-37FF0

$19.72

40

NEEDLE, JET (NECL) | OPT

13383-37FG0

$20.45

40

NEEDLE, JET (NEDF) | OPT

13383-37FH0

$20.45

40

NEEDLE, JET (NEDG) | OPT

13383-37FJ0

$19.72

40

NEEDLE, JET (NEDH) | OPT

13383-37FK0

$18.97

40

NEEDLE, JET (NEDW) | OPT

13383-37FL0

$16.13

40

NEEDLE, JET (NEDJ) | OPT

13383-37FM0

$16.13

40

NEEDLE, JET (NEDK) | OPT

13383-37FN0

$19.72

40

NEEDLE, JET (NEDL) | OPT

13383-37FP0

$20.45

41

JET, MAIN (150) | OPT

09491-30018

$18.02

41

JET, MAIN (152) | OPT

09491-30019

$18.02

41

JET, MAIN (155) | OPT

09491-31012

$18.02

41

JET, MAIN (158) | OPT

09491-31013

$18.02

41

JET, MAIN (160) | OPT

09491-32010

$17.37

41

JET, MAIN (162) | OPT

09491-32011

$17.37

41

JET, MAIN (165) | OPT

09491-33009

$17.37

41

JET, MAIN (168) | OPT

09491-33010

$17.37

41

JET, MAIN (170) | OPT

09491-34010

$17.37

41

JET, MAIN (172) | OPT

09491-34011

$17.37

41

JET, MAIN (175) | OPT

09491-35009

$17.68

41

JET, MAIN (178) | OPT

09491-35010

$18.02

41

JET, MAIN (180) | OPT

09491-36008

$18.02

41

JET, MAIN (185) | OPT

09491-37008

Unavailable

41

JET, MAIN (190) | OPT

09491-38011

Unavailable

41

JET, MAIN (195) | OPT

09491-39001

Unavailable

41

JET, MAIN (200) | OPT

09491-40013

$18.02

41

JET, MAIN (205) | OPT

09491-41001

Unavailable

41

JET, MAIN (210) | OPT

09491-42006

Unavailable

42

JET, PILOT (35) | OPT

09492-35019

$17.68

42

JET, PILOT (40) | OPT

09492-40022

$17.37

42

JET, PILOT (42) | OPT

09492-42019

$14.76

42

JET, PILOT (45) | OPT

09492-45032

$17.37

42

JET, PILOT (48) | OPT

09492-48013

$17.37

42

JET, PILOT (50) | OPT

09492-50023

$17.37

42

JET, PILOT (52) | OPT

09492-52011

$17.68

42

JET, PILOT (55) | OPT

09492-55017

$18.02

42

JET, PILOT (58) | OPT

09492-58001

$18.02

42

JET, PILOT (60) | OPT

09492-60016

Unavailable
