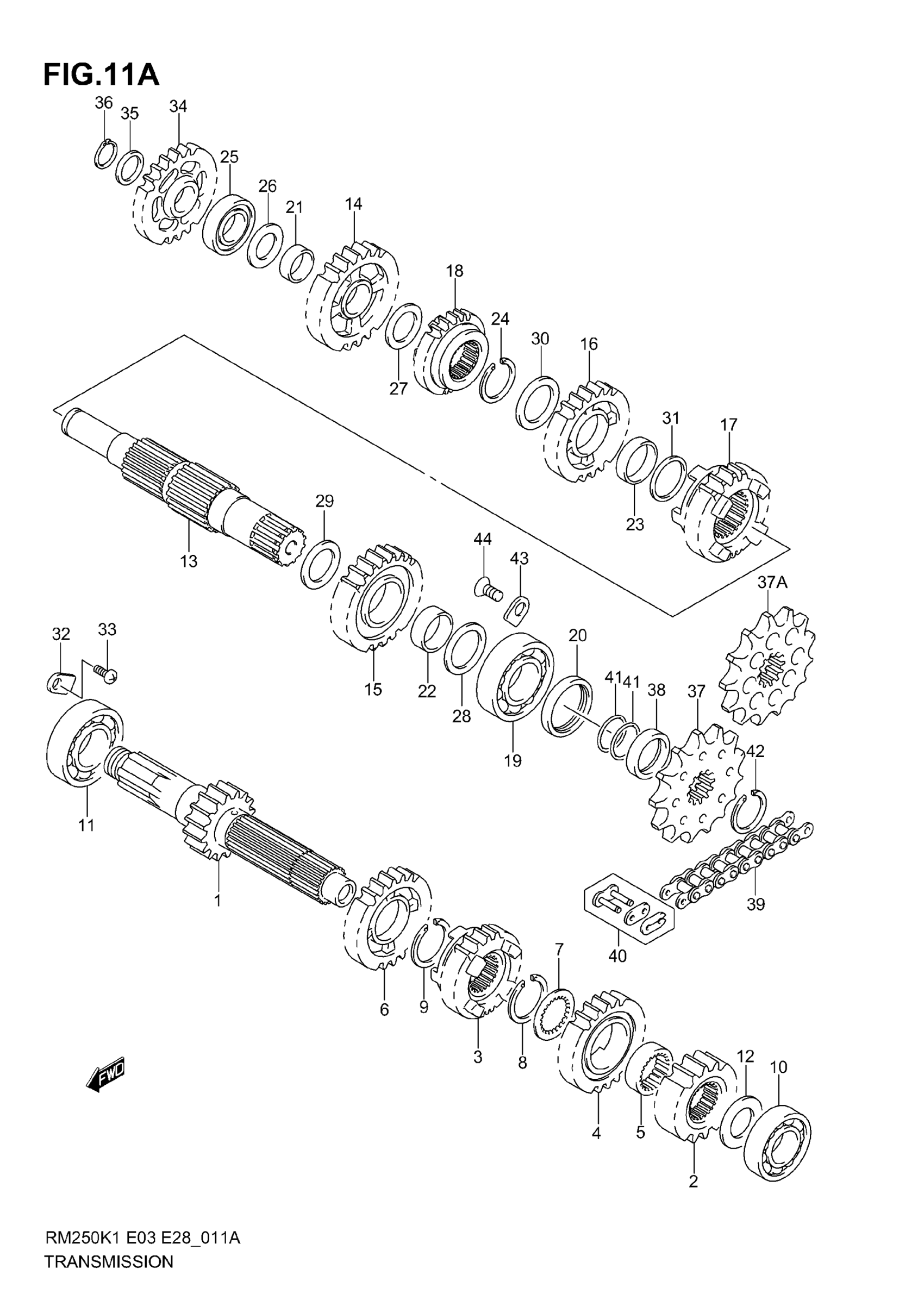

Suzuki RM250 (2006) TRANSMISSION (MODEL K4/K5/K6) Diagram

#

Description
Price

1

SHAFT,COUNTER | MODEL K4 This part replaces 24120-37F00.

24120-37F01

Unavailable

1

SHAFT,COUNTER(N | MODEL K5 This part replaces 24120-37F40.

24120-37F41

Unavailable

1

SHAFT,COUNTER(N | MODEL K6 This part replaces 24120-37F50.

24120-37F51

$211.35

2

GEAR, 2ND DRIVE (NT:17)

24221-37F00

$113.18

3

GEAR, 3RD DRIVE (NT:19) | %F.NO.42102085 This part replaces 24231-37F10.

24231-37F11

$136.78

3

GEAR, 3RD DRIVE (NT:19) | F.NO.42102086%

24231-37F11

$136.78

4

GEAR, 4TH DRIVE (NT:21)

24241-37E01

$114.82

5

BUSH, 4TH DRIVE GEAR

24242-37F00

$31.23

6

GEAR, 5TH DRIVE (NT:23)

24251-37E00

$115.65

7

WASHER, 4TH (25X31X1.0)

09167-25026

$3.72

8

CIRCLIP, 4TH DRIVE

09380-25010

$2.91

9

CIRCLIP, 5TH DRIVE

09380-25010

$2.91

10

BEARING, CNTR LH

08143-62037

$18.47

11

BEARING (25X52X15)

08143-62057

$24.40

12

WASHER, 2ND (17X30X1.0)

09181-17223

$2.96

13

SHAFT, DRIVE

24131-37F20

$204.72

14

GEAR, 1ST DRIVEN (NT:27)

24311-37E00

$101.29

15

GEAR, 2ND DRIVEN (NT:25)

24321-37E02

$118.05

16

GEAR, 3RD DRIVEN (NT:23)

24331-37F02

$115.80

17

GEAR, 4TH DRIVEN (NT:21)

24341-37F20

$134.85

18

GEAR, 5TH DRIVEN (NT:20)

24351-37F20

$121.55

19

BEARING, DRIVE SHAFT, LH | 22X56X15

09262-22030

$67.63

20

SEAL, DRIVE (28X38X7.5)

09289-28012

$9.68

21

BUSH, 1ST DRIVEN GEAR

09300-20037

$17.90

22

BUSH, 2ND DRIVEN GEAR

09300-25031

$19.13

23

BUSH, 3RD DRIVEN GEAR

09300-25031

$19.13

24

CIRCLIP, 3RD DRIVEN

09380-25010

$2.91

25

BEARING, DRIVE SHAFT, RH | 17X40X12

09262-17023

$16.75

26

WASHER, 1ST (17X30X1.0)

09181-17223

$2.96

27

WASHER, 1ST (20X30X1.0)

09181-20195

$2.60

28

WASHER, 2ND (22X34X1.5)

09181-22240

$3.49

29

WASHER, 2ND (25X34X1.0)

09181-25167

$3.12

30

WASHER, 3RD (25X34X1.0)

09181-25167

$3.12

31

WASHER, 3RD DRIVEN NO.2

08221-25305

$2.38

32

RETAINER, CNTR SHAFT BRG

24741-21A00

$2.81

33

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

34

GEAR, KICK STARTER (NT:27)

26260-37E01

$96.22

35

WASHER, KICK (17X24X0.5)

09181-17130

$2.96

36

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.90

37

SPROCKET, ENGINE (NT:13) | MODEL K4 This part replaces 27511-15D00.

27511-37F00

$25.05

37A

SPROCKET, ENGINE (NT:13) | MODEL K5/K6

27511-37F00

$25.05

38

SPACER, ENGINE SPROCKET

27531-28C00

$13.30

39

CHAIN ASSY,DRIVE This part replaces 27600-43D01-114.

27600-46K00-114

$140.88

40

.JOINT SET,CHAIN | OPT This part replaces 27620-43D00.

27620-46K00

$9.57

41

O RING (D:1.9,ID:19.8)

09280-20006

$1.78

42

CIRCLIP, ENGINE SPROCKET

09380-22006

$3.10

43

RETAINER

24741-20A00

$2.81

44

SCREW This part replaces 02122-06123.

02122-0612A

$1.49
