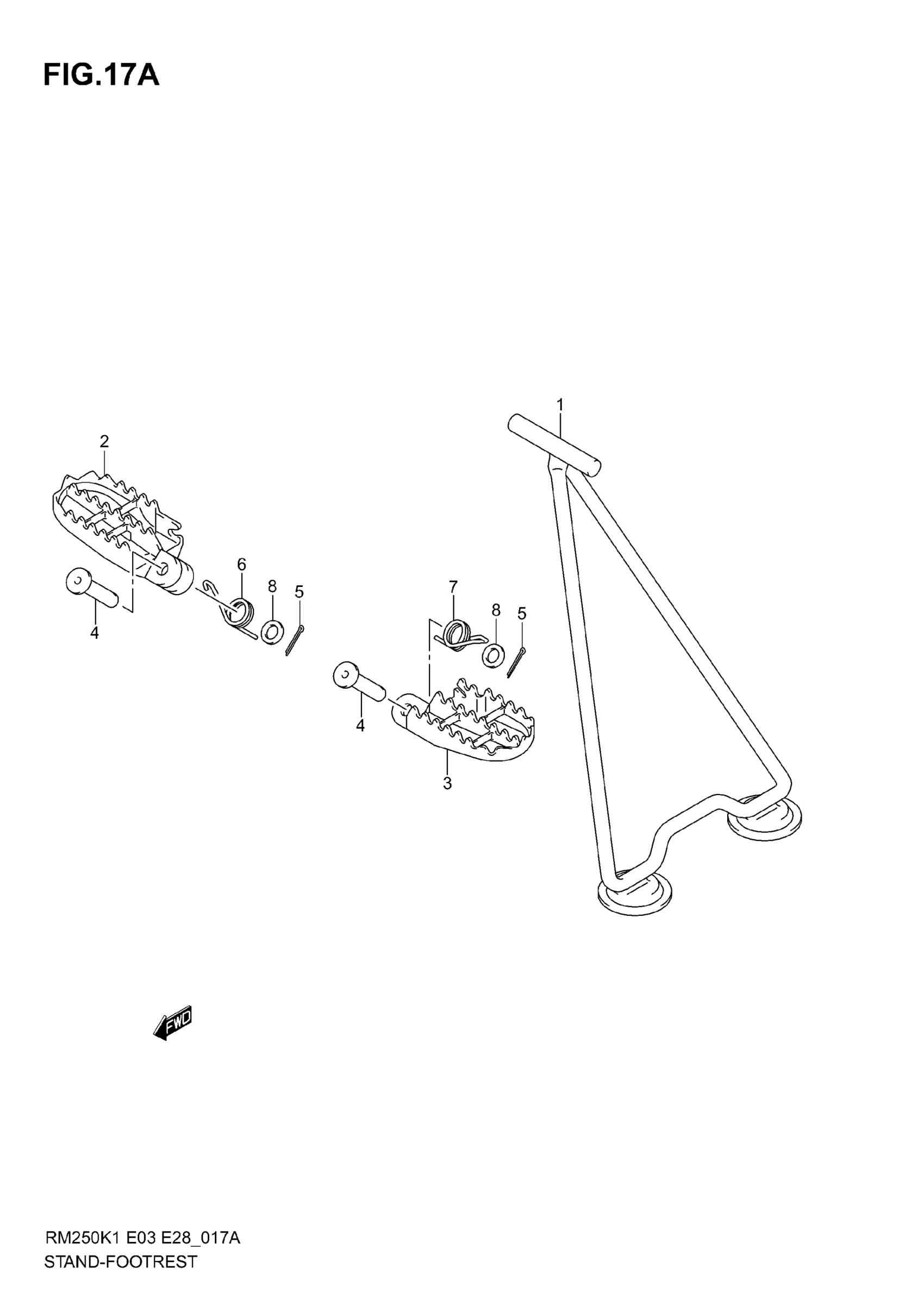

Suzuki RM250 (2006) STAND - FOOTREST (MODEL K3/K4/K5/K6) Diagram

#

Description

Price

1

STAND, PROP

42310-36E40

Unavailable

2

FOOTREST, RH (BLACK) | MODEL K3

43551-36F00-019

Unavailable

2

FOOTREST, RH (BLACK) | MODEL K4 This part replaces 43551-37F00-019.

43551-37F01-019

$161.72

2

FOOTREST, RH (BLACK) | MODEL K5/K6 This part replaces 43551-37F10.

43551-37F01-019

$161.72

3

FOOTREST, LH (BLACK) | MODEL K3

43561-36F00-019

Unavailable

3

FOOTREST, LH (BLACK) | MODEL K4

43561-37F00-019

$161.72

3

FOOTREST, LH (BLACK) | MODEL K5/K6 This part replaces 43561-37F10.

43561-37F00-019

$161.72

4

PIN

09200-10022

$9.30

5

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.25

6

SPRING, RH

09448-21007

$7.47

7

SPRING, LH

09448-21008

$7.50

8

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.89
