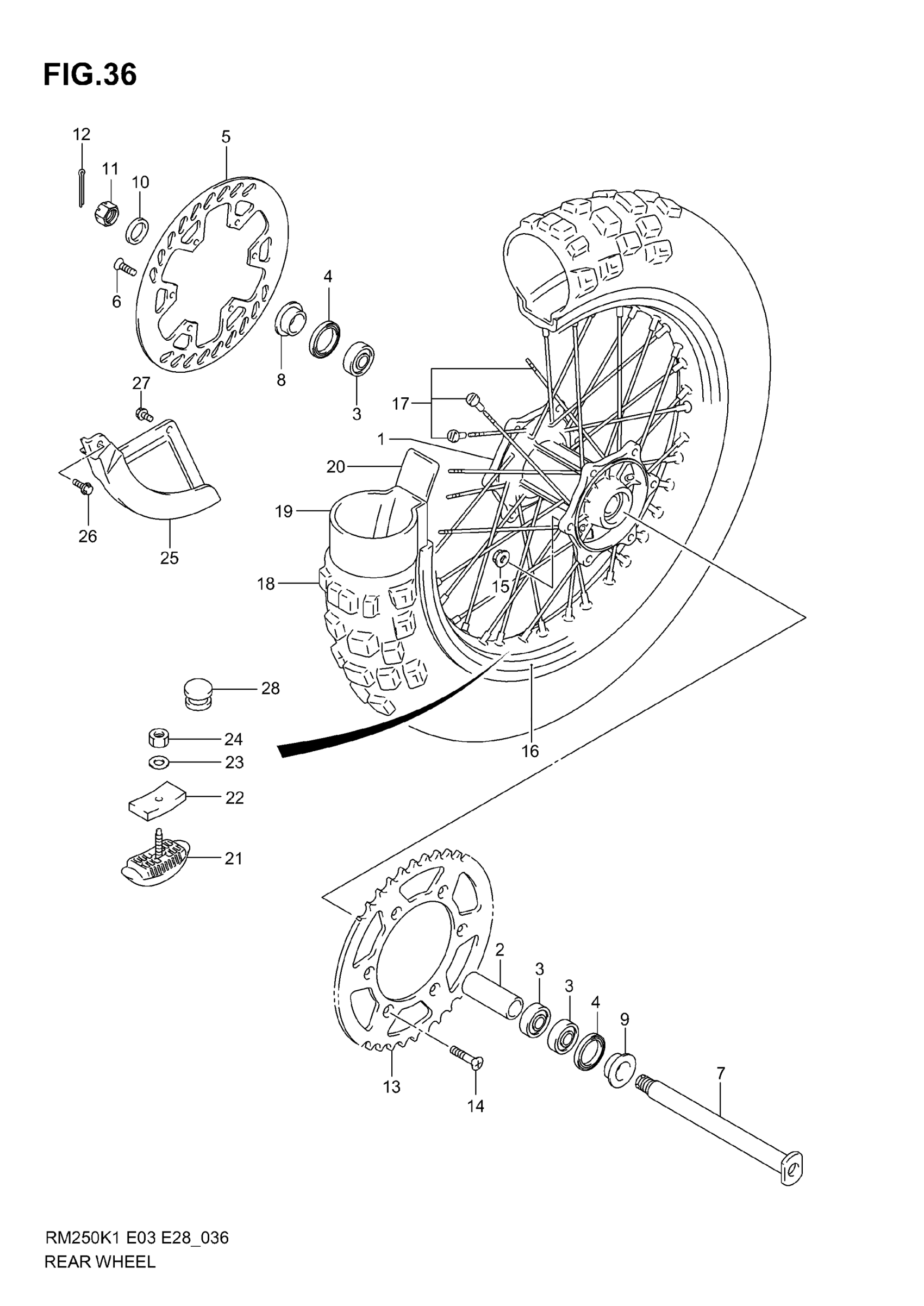

Suzuki RM250 (2006) REAR WHEEL (MODEL K1/K2) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-36E00

$463.55

2

SPACER, BEARING (22.5X30X102)

64731-36E00

$39.37

3

BEARING (22X44X12)

09262-22033

$31.73

4

SEAL, DUST (30X44X7)

09283-30023

$7.25

5

DISC, REAR BRAKE

69211-37F00

Unavailable

6

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

$2.45

7

AXLE, REAR

64711-37F10

Unavailable

8

SPACER, RH

64751-36E00

$32.12

9

SPACER, LH

64751-36E00

$32.12

10

WASHER

09160-19022

$4.90

11

NUT This part replaces 08314-40183.

08314-4018A

$4.64

12

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

13

SPROCKET,RR (NT:49)

64511-28E00

$120.85

13

SPROCKET,RR (NT:50) | OPT

64511-36E00

$126.60

13

SPROCKET,RR (NT:48) | OPT

64511-37E00

$175.05

13

SPROCKET, REAR (NT:51) | OPT

64511-40261

$155.22

14

SCREW (8X30.5)

09120-08010

$2.36

15

NUT

09159-08067

$5.57

16

RIM, REAR WHEEL (2.15X19)

65311-37E00

Unavailable

17

SPOKE SET, WHEEL

65320-37F00

$188.73

18

TIRE, REAR (110/90-19) (BRIDGESTONE)

65110-37E10

Unavailable

19

TUBE This part replaces 65200-28C20.

55200-44611

$33.73

20

PROTECTOR,WHL I This part replaces 65261-28C20.

65261-28C21

$6.00

21

STOPPER, BEAD

65270-28E00

$58.75

22

CUSHION, BEAD STOPPER

65271-27C00

$7.42

23

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

24

NUT This part replaces 08310-00083.

08310-0008A

$1.84

25

COVER, REAR DISC This part replaces 69231-36E00.

69231-37F01

$47.40

26

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

27

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

28

CAP

09250-08013

$2.68
