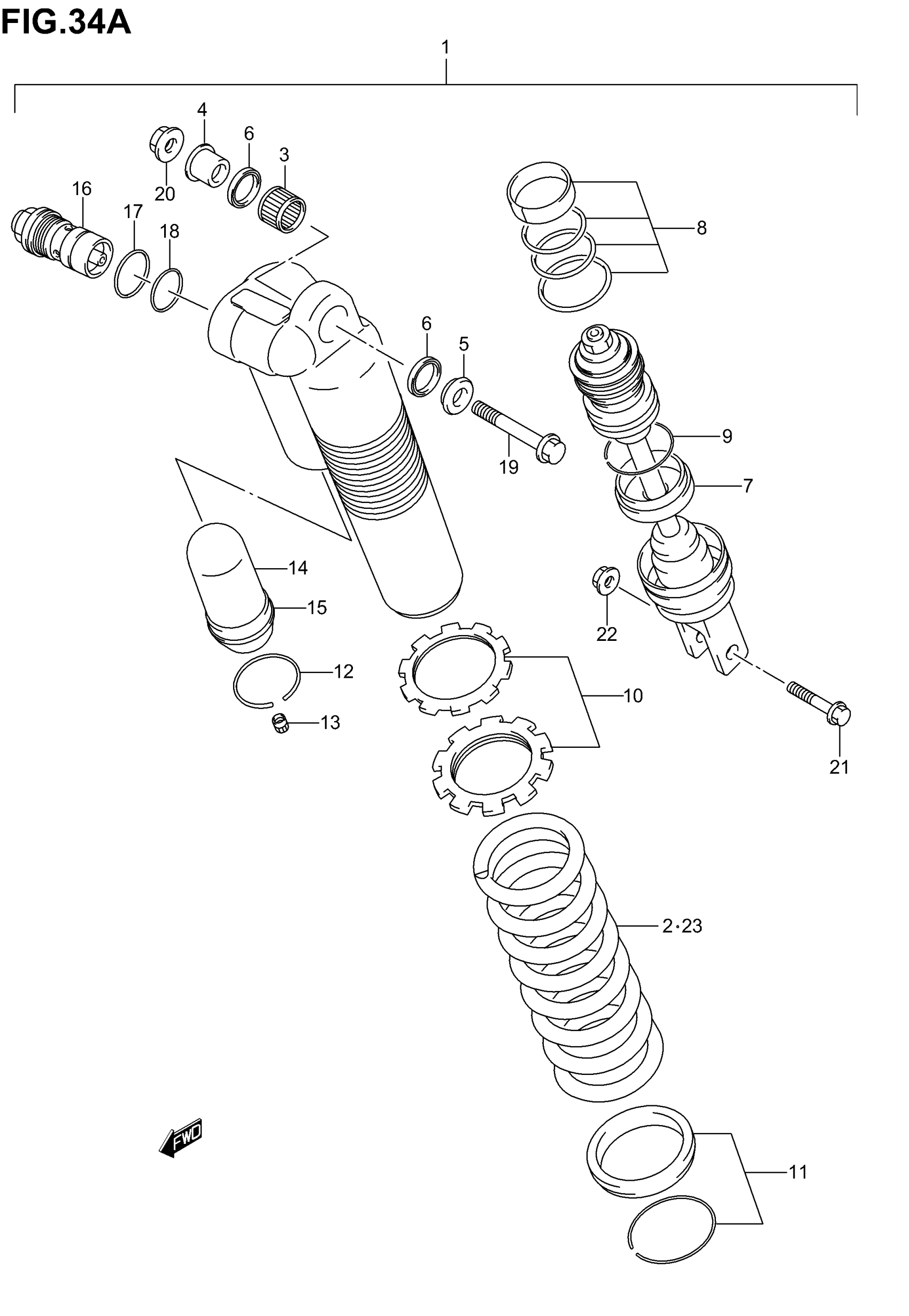

Suzuki RM250 (2006) REAR SHOCK ABSORBER (MODEL K4) Diagram

#

Description
Price

1

ABSORBER ASSY, RR SHOCK (YELLOW) | E3

62100-37FB0-163

Unavailable

1

ABSORBER ASSY, RR SHOCK (YELLOW) | E28; Includes Item(s) 2 - 18

62100-37FA0-163

Unavailable

2

SPRING (K=5.2)

62211-37F90

Unavailable

3

BEARING (16X22X12)

09263-16033

$20.26

4

.SPACER,UPPER BRG,R

62684-36F00

$23.07

5

.SPACER,UPPER BRG,L

62685-36F00

$13.36

6

OIL SEAL (16X22X2.5)

09284-16005

$6.95

7

ROD, PISTON

62120-37F90

Unavailable

8

O RING SET

62150-36EB0

$71.38

9

RING, STOPPER

62279-36E80

$6.85

10

ADJUSTER SET

62190-36F00

$116.65

11

SPRING SEAT SET

62220-36F00

$86.03

12

RING, STOPPER

62278-36E00

$8.60

13

CAP

51294-20400

$7.37

14

BLADDER

62273-36F00

$63.97

15

CAP, CHAMBER

62275-36E00

$64.30

16

BOLT, PLUG

62130-37F90

Unavailable

17

O RING

62131-28E00

$5.00

18

O RING

51174-43D00

$4.82

19

BOLT

09103-10360

$5.52

20

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

21

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

22

NUT

09159-10067

$6.11

23

SPRING (SOFT,K=4.8) | OPT

62211-37FA0

Unavailable

23

SPRING (SOFT,K=5.0) | OPT

62211-37FB0

Unavailable

23

SPRING (HARD,K=5.4) | OPT

62211-37FC0

Unavailable

23

SPRING (HARD,K=5.6) | OPT

62211-37FD0

Unavailable
