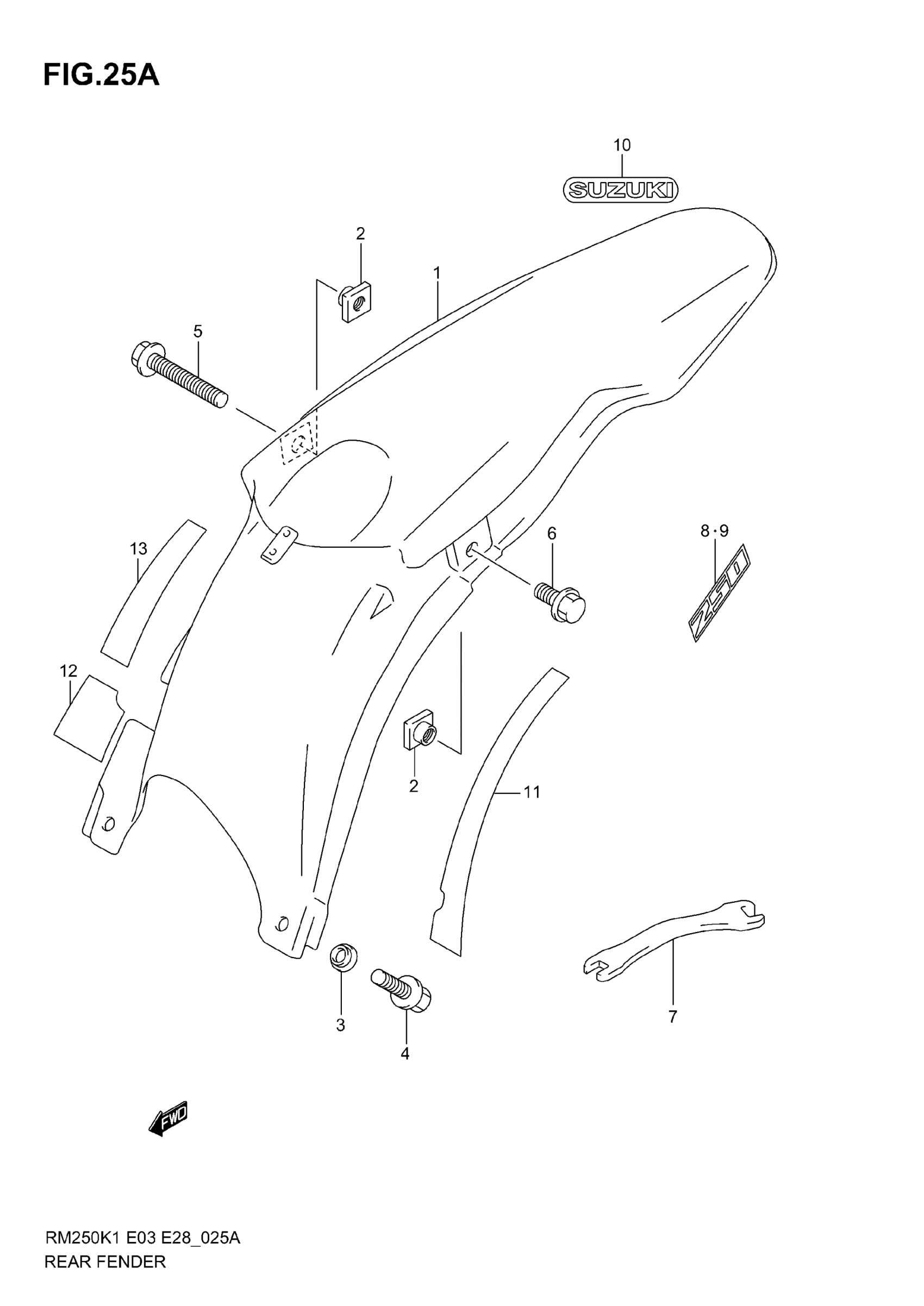

Suzuki RM250 (2006) REAR FENDER (MODEL K2/K3/K4/K5/K6) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-37F00-YU1

$141.70

2

NUT, REAR FENDER

09152-06024

$3.37

3

WASHER (6.3X16X1) | MODEL K2/K3/K4 This part replaces 09169-06054.

09169-06053

$1.49

3

WASHER | MODEL K5/K6 This part replaces 69232-37F00.

69232-37F01

$7.72

4

BOLT This part replaces 09103-06235.

01547-06207

$2.01

5

BOLT, RH

09103-06252

$2.68

6

BOLT, LH

09103-06234

$2.35

7

OPEN SPANNER (6.4X6.8) | MODEL K2/K3

09813-00039

Unavailable

7

SPANNER (6.4X6.8) | MODEL K4/K5/K6

09813-00134

$18.48

8

TAPE, REAR FENDER RH | MODEL K2/K3/K4

68175-37F00-GY8

Unavailable

8

TAPE, REAR FENDER RH | MODEL K5

68175-37F10-GY8

Unavailable

8

TAPE, REAR FENDER RH | MODEL K6

68175-37F10-CFL

Unavailable

9

TAPE, REAR FENDER LH | MODEL K2/K3/K4

68176-37F00-GY8

Unavailable

9

TAPE, REAR FENDER LH | MODEL K5

68176-37F10-GY8

Unavailable

9

TAPE, REAR FENDER LH | MODEL K6

68176-37F10-CFL

Unavailable

10

EMBLEM SUZUKI (YELLOW BLACK) | MODEL K4/K5 This part replaces 68721-13A00-GY8.

68721-13A01-GY8

$12.73

10

EMBLEM,"SUZUKI" | MODEL K6 This part replaces 68721-13A00-CFL.

68721-13A01-CFL

Unavailable

11

CUSHION, NO.1 | MODEL K6

63114-37F00

$20.52

12

CUSHION, NO.2 | MODEL K6

63114-37F10

$6.88

13

CUSHION, NO.3 | MODEL K6

63114-37F20

$11.23
