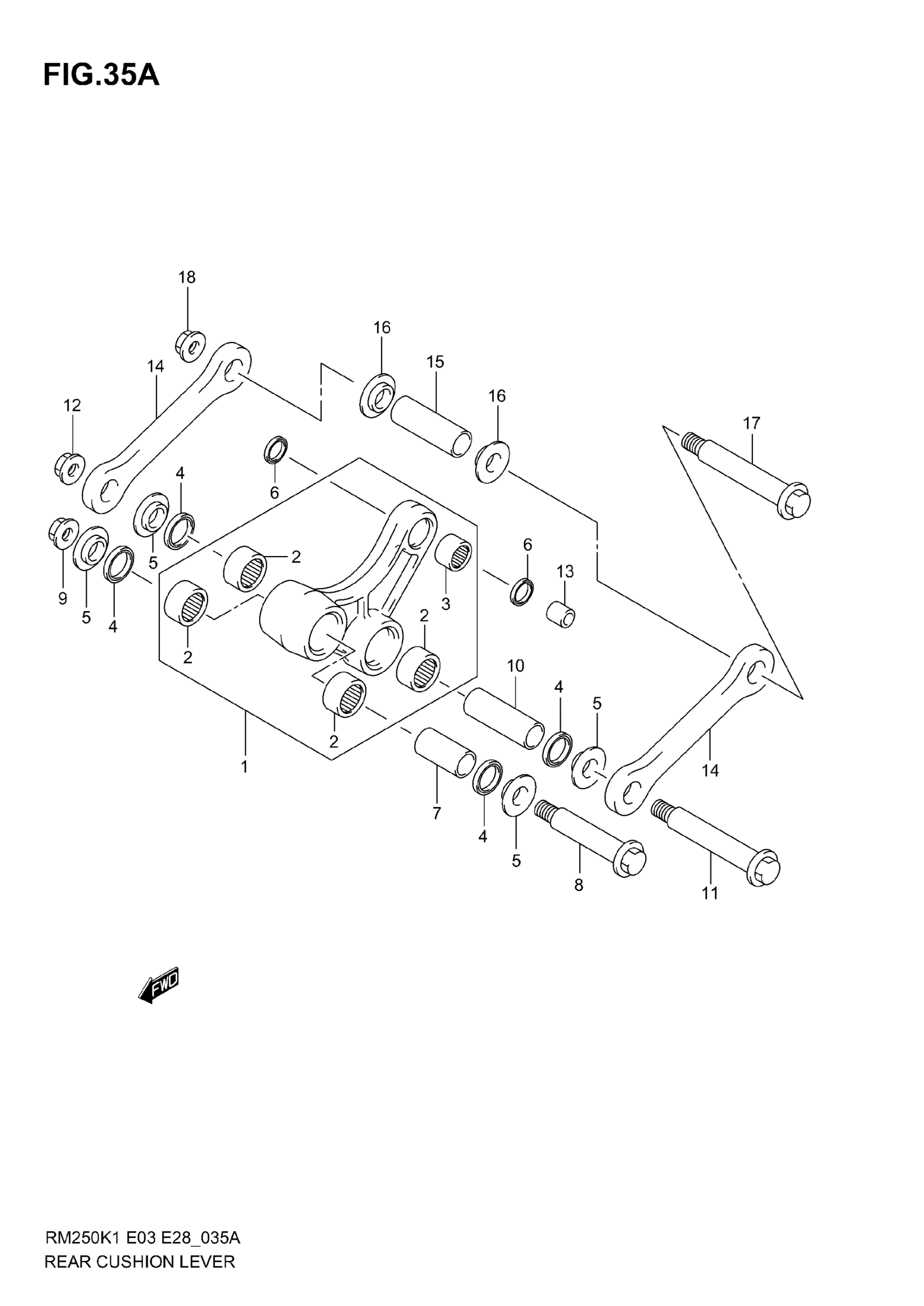

Suzuki RM250 (2006) REAR CUSHION LEVER (MODEL K2/K3) Diagram

#

Description
Price

1

LEVER SET,REAR | Includes Item(s) 2 - 3 This part replaces 62600-37850.

62600-37851

Unavailable

2

BEARING (20X27X15)

09263-20086

$14.87

3

BEARING (20X26X12)

09263-20083

$22.49

4

SEAL, DUST (19X27X4)

62624-14500

$5.65

5

SPACER

62647-37F00

$19.42

6

SEAL, REAR (20X26X4.5)

09284-20001

$4.31

7

SPACER, FRONT (15X20X31)

62317-37F00

$23.73

8

BOLT, FRONT (12X76)

62658-37E01

$15.02

9

NUT

09159-12056

$6.65

10

SPACER, CENTER (15X20X44)

62646-37F00

$26.92

11

BOLT, CENTER (12X100)

62621-37F00

$25.02

12

NUT

09159-12056

$6.65

13

SPACER, REAR CUSHION LEVER

62684-36E00

$18.70

14

ROD, REAR CUSHION LEVER

62641-37F00

Unavailable

15

SPACER, ROD (15X20X44)

62646-37F00

$26.92

16

SPACER

62647-37F00

$19.42

17

BOLT, ROD

62621-37F00

$25.02

18

NUT

09159-12056

$6.65
