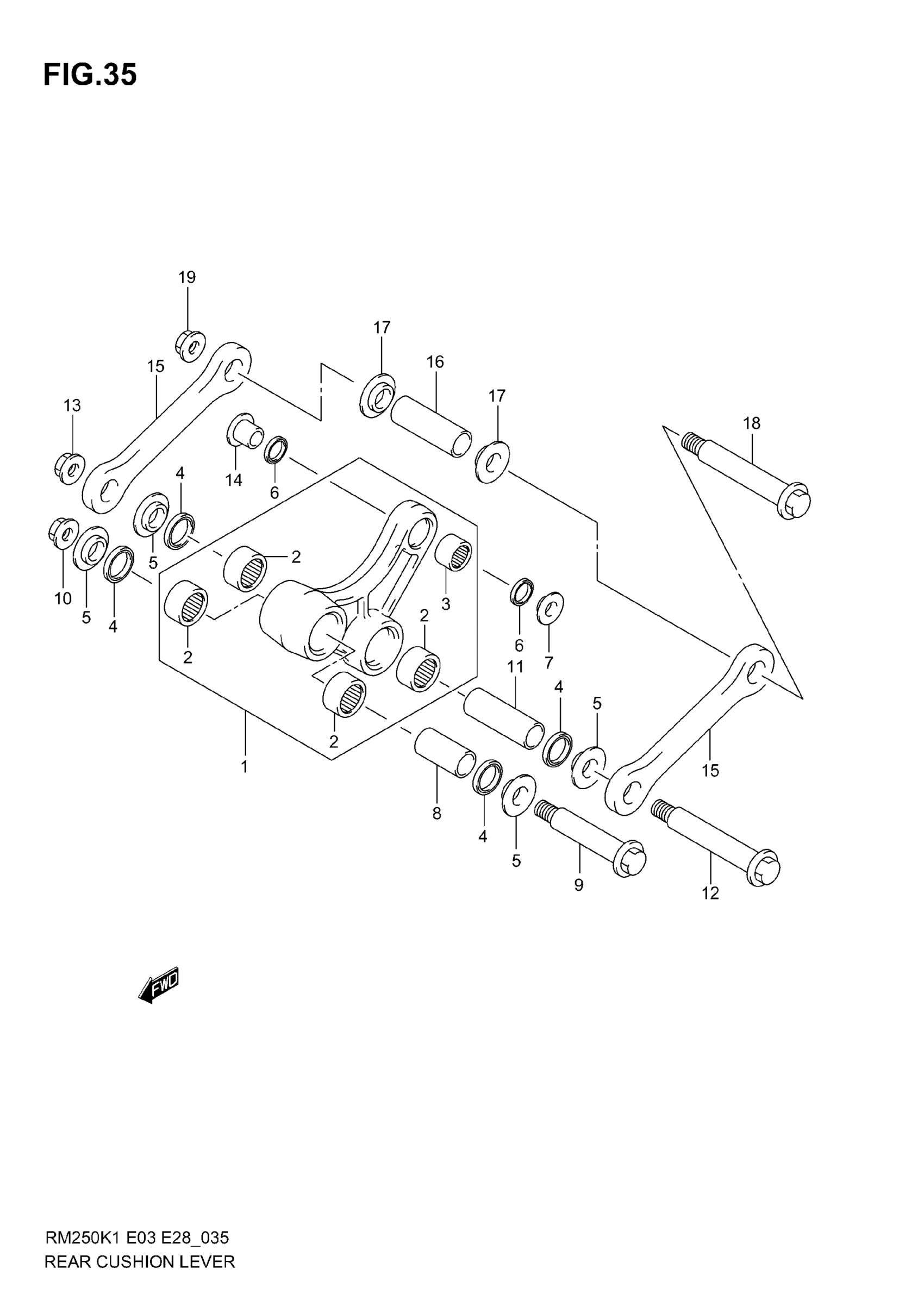

Suzuki RM250 (2006) REAR CUSHION LEVER (MODEL K1) Diagram

#

Description
Price

1

LEVER SET,REAR | Includes Item(s) 2 - 3 This part replaces 62600-37840.

62600-37841

Unavailable

2

BEARING (20X27X15)

09263-20086

$14.87

3

BEARING (16X22X12)

09263-16033

$18.28

4

SEAL, DUST (19X27X4)

62624-14500

$5.65

5

SPACER

62647-37F00

$19.42

6

OIL SEAL (16X22X2.5)

09284-16005

$6.27

7

SPACER, REAR LH

62685-37F00

Unavailable

8

SPACER, FRONT (15X20X31)

62317-37F00

$23.73

9

BOLT, FRONT (12X76)

62658-37E01

$15.02

10

NUT

09159-12056

$6.65

11

SPACER, CENTER (15X20X44)

62646-37F00

$26.92

12

BOLT, CENTER (12X100)

62621-37F00

$25.02

13

NUT

09159-12056

$6.65

14

SPACER, REAR (10X16X22)

62684-37F00

Unavailable

15

ROD, REAR CUSHION LEVER

62641-37F00

Unavailable

16

SPACER, ROD (15X20X44)

62646-37F00

$26.92

17

SPACER

62647-37F00

$19.42

18

BOLT, ROD

62621-37F00

$25.02

19

NUT

09159-12056

$6.65
