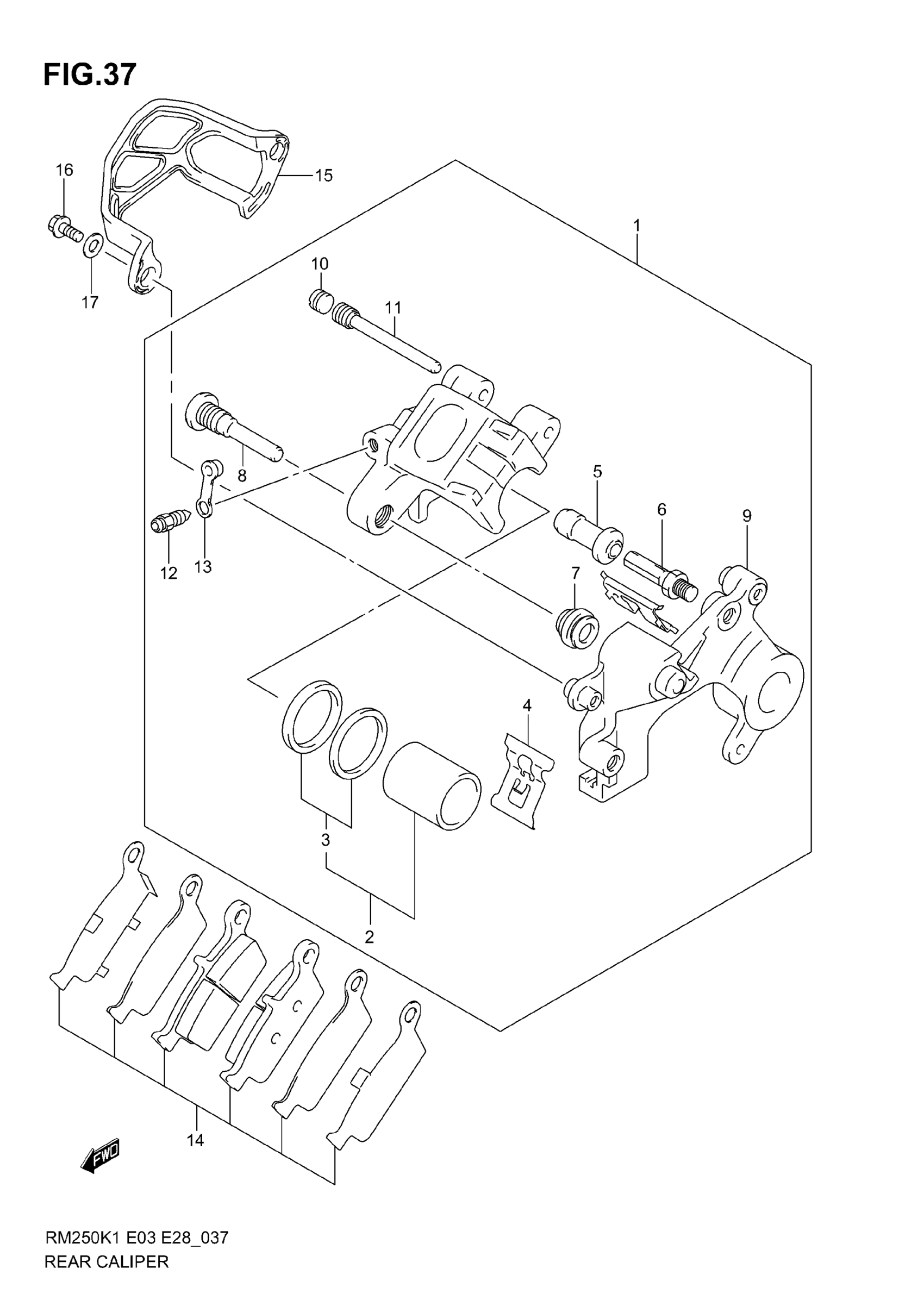

Suzuki RM250 (2006) REAR CALIPER (MODEL K1/K2/K3) Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 13

69100-37F20-999

$283.17

2

PISTON SET

69100-43810

$36.64

3

SEAL SET, PISTON

69100-36810

$9.03

4

SPRING

59315-36E00

$9.72

5

BOOT

59386-13A00

$7.95

6

PIN

59382-27C30

$9.07

7

BOOT

59303-14500

$5.52

8

PIN

59305-36E00

$18.20

9

BRACKET

69350-37F00

$162.28

10

PLUG, PIN

59146-21E10

$6.15

11

.PIN HANGER

69345-43D00

$11.55

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34

14

PAD SET | MODEL K1/K2

69100-36860

Unavailable

14

PAD SET | MODEL K3

69100-37810

Unavailable

15

REAR CALIPER GU This part replaces 69725-29F00.

69700-29821

$21.10

16

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

17

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26
