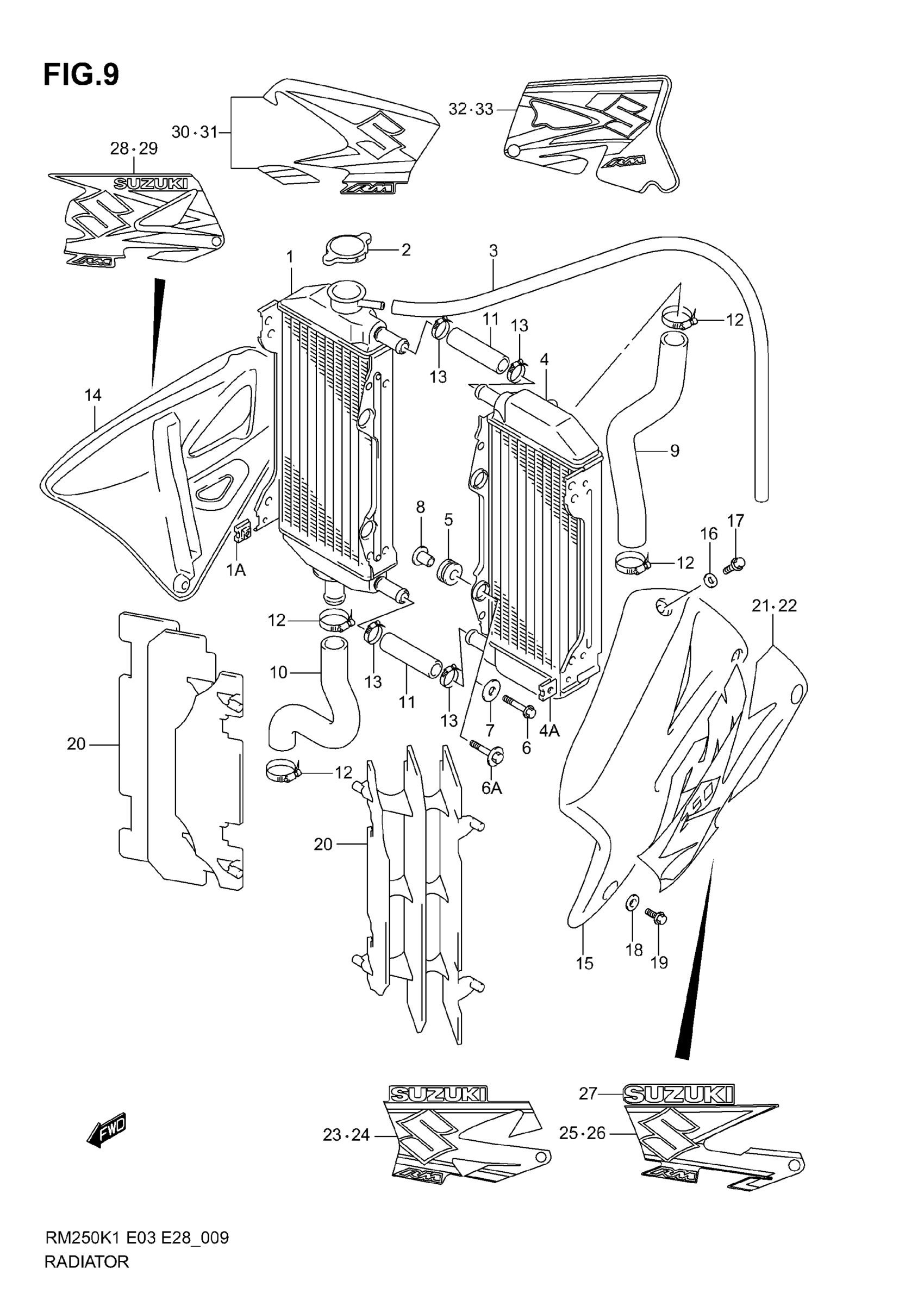

Suzuki RM250 (2006) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH | Includes Item(s) 1A

17710-37F00

Unavailable

1A

NUT

09148-06015

$3.04

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

HOSE (5X8X2000) | L:1000!650 This part replaces 09351-50803-00A.

09351-50803-00B

$9.10

4

RADIATOR, LH | Includes Item(s) 4A

17720-37F00

$932.95

4A

NUT

09148-06015

$3.04

5

CUSHION, SUPPORT

17787-19A00

$3.56

6

BOLT, FINAL GEAR CASE COVER | MODEL K1 This part replaces 01547-06253.

01547-0625B

$2.45

6A

BOLT | MODEL K2/K3/K4/K5/K6

09116-06186

$2.61

7

WASHER (6.5X24X1.2) | MODEL K1

09160-06114

$2.03

8

SPACER

09180-06243

$5.46

9

HOSE, INLET

17851-37F00

$21.03

10

HOSE, OUTLET

17852-37F00

$20.10

11

HOSE, JOINT | MODEL K1/K2

17853-36F00

$5.83

11

HOSE, JOINT | MODEL K3/K4/K5

17853-36F10

$6.00

11

HOSE, JOINT | MODEL K6 This part replaces 17853-37F10.

17853-36F00

$5.83

12

CLAMP

09402-28511

$6.88

13

CLAMP

09402-22511

$7.05

14

COVER, RADIATOR RH (YELLOW) | MODEL K1

17761-37F00-YR1

Unavailable

14

COVER, RADIATOR RH (YELLOW) | MODEL K2/K3/K4 This part replaces 17761-37F00-YU1.

17761-37F10-YU1

$63.97

14

COVER, RADIATOR RH (YELLOW) | MODEL K5/K6

17761-37F10-YU1

$63.97

15

COVER, RADIATOR LH (YELLOW) | MODEL K1 This part replaces 17762-37F00-YR1.

17762-37F10-YU1

$51.57

15

COVER, RADIATOR LH (YELLOW) | MODEL K2/K3/K4 This part replaces 17762-37F00-YU1.

17762-37F10-YU1

$51.57

15

COVER, RADIATOR LH (YELLOW) | MODEL K5/K6

17762-37F10-YU1

$51.57

16

WASHER | MODEL K1 This part replaces 09169-05021.

09169-05024

$2.06

16

WASHER (6.3X16X1) | MODEL K2/K3/K4 This part replaces 09169-06054.

09169-06053

$1.49

16

WASHER | MODEL K5/K6 This part replaces 69232-37F00.

69232-37F01

$7.72

17

SCREW | MODEL K1

02142-05127

$1.97

17

BOLT | MODEL K2/K3/K4/K5/K6

09103-06233

$2.11

18

WASHER (6.3X16X1) | MODEL K1/K2/K3/K4 This part replaces 09169-06054.

09169-06053

$1.49

18

WASHER | MODEL K5/K6 This part replaces 69232-37F00.

69232-37F01

$7.72

19

BOLT | MODEL K1 This part replaces 01547-06123.

01547-0612B

$1.49

19

BOLT | MODEL K2/K3/K4/K5/K6

09103-06233

$2.11

20

LOUVER, RADIATOR | MODEL K1/K2/K3/K4/K5

17831-37E11

$19.07

20

LOUVER, RADIATOR | MODEL K6

17831-37F00

$24.42

21

TAPE, RADIATOR COVER RH | MODEL K1

68660-37F00-DY9

Unavailable

22

TAPE, RADIATOR COVER LH | MODEL K1

68670-37F00-DY9

Unavailable

23

TAPE, RADIATOR COVER RH | MODEL K2

68660-37F10-GY7

Unavailable

24

TAPE, RADIATOR COVER LH | MODEL K2

68670-37F10-GY7

Unavailable

25

TAPE, RADIATOR COVER RH | MODEL K3

68660-37F20-KH2

Unavailable

26

TAPE, RADIATOR COVER LH | MODEL K3

68670-37F20-KH2

Unavailable

27

EMBLEM, "SUZUKI" | MODEL K3

68661-37F00-GY8

Unavailable

28

TAPE, RADIATOR COVER RH | MODEL K4

68660-37F30-NV1

Unavailable

29

TAPE, RADIATOR COVER LH | MODEL K4

68670-37F30-NV1

Unavailable

30

TAPE, RADIATOR COVER RH | MODEL K5

68660-37F40-YHB

Unavailable

31

TAPE, RADIATOR COVER LH | MODEL K5

68670-37F40-YHB

Unavailable

32

NO DESCRIPTION AVAILABLE | MODEL K6 This part replaces 68660-37F50-CET.

68660-37F51-CET

Unavailable

33

TAPE,RADIATOR C | MODEL K6 This part replaces 68670-37F50-CET.

68670-37F51-CET

Unavailable
