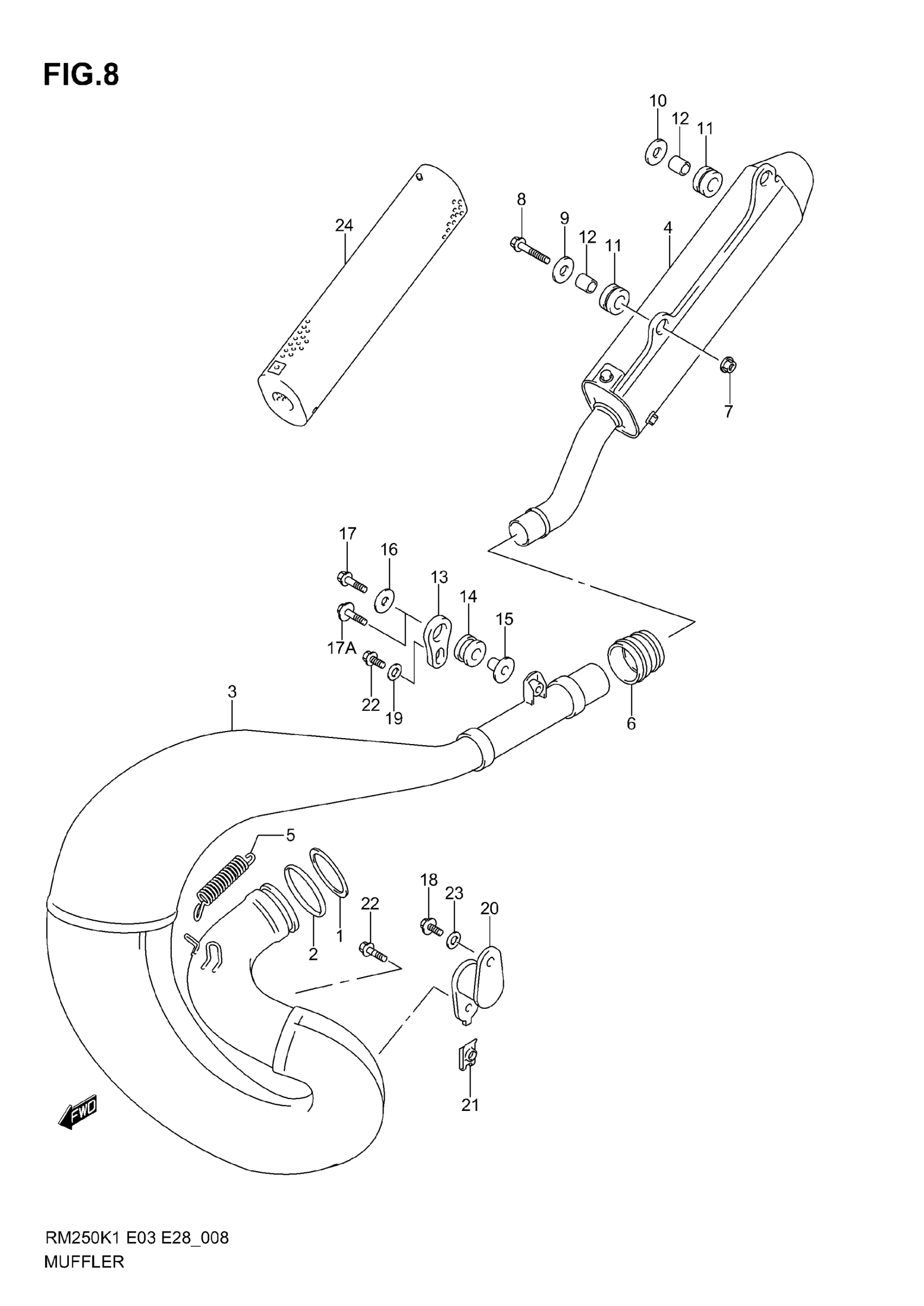

Suzuki RM250 (2006) MUFFLER Diagram

#

Description
Price

1

WASHER, EXHAUST PIPE

14172-28C30

$2.07

2

O RING, EXHAUST PIPE

14171-28C30

$19.98

3

MUFFLER, 1ST | MODEL K1

14310-37F01

Unavailable

3

MUFFLER, 1ST | MODEL K2

14310-37F10

Unavailable

3

MUFFLER, 1ST | MODEL K3/K4/K5/K6

14310-37F21

$469.98

4

MUFFLER, 2ND | MODEL K1/K2/K3 E3

14330-37F10

Unavailable

4

MUFFLER, 2ND | MODEL K4 E3

14330-37F30

Unavailable

4

MUFFLER, 2ND | MODEL K5/K6 E3

14330-37F40

$308.53

4

MUFFLER, 2ND | MODEL K2 E28

14330-37F20

Unavailable

4

MUFFLER, 2ND | MODEL K1/K3/K4/K5 E28

14330-37F01

Unavailable

4

MUFFLER, 2ND | MODEL K6 E28

14330-37F50

Unavailable

5

SPRING | MODEL K1/K2 This part replaces 09443-12042.

09443-12042-XC0

$8.24

5

SPRING | MODEL K3/K4/K5/K6

09443-10045

$7.13

6

CONNECTOR, 2ND MUFFLER

14771-28C02

$39.47

7

NUT

08319-31067

$2.03

8

BOLT, FINAL GEAR CASE | MODEL K1 This part replaces 01547-06303.

01547-0630B

$2.73

8

BOLT | MODEL K2/K3/K4/K5/K6

09103-06251

$2.35

9

WASHER (6.5X24X1.2)

09160-06114

$2.03

10

WASHER (6.5X24X1.2)

09160-06114

$2.03

11

CUSHION This part replaces 09320-11015.

09320-11008

$2.60

12

SPACER (6.5X11.5X12)

09180-06120

$2.32

13

PLATE, MOUNTING

14761-27C00

$8.76

14

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

15

SPACER

14763-36E00

$8.13

16

WASHER (6.5X24X1.2) | MODEL K1

09160-06114

$2.03

17

BOLT, FINAL GEAR CASE COVER | MODEL K1 This part replaces 01547-06253.

01547-0625B

$2.45

17A

BOLT (L:25) | MODEL K2/K3/K4/K5/K6

09116-06186

$2.61

18

BOLT | MODEL K1 This part replaces 01547-06123.

01547-0612B

$1.49

18

BOLT (L:12) | MODEL K2/K3/K4/K5/K6

09103-06233

$2.11

19

WASHER (6.5X18X1.6)

09160-06084

$1.78

20

DAMPER,MUFFLER This part replaces 14770-37F00.

14770-37F01

$21.84

21

NUT This part replaces 71812-82010.

09148-06021

$3.56

22

BOLT | MODEL K1 This part replaces 01547-06163.

01547-0616B

$2.45

22

BOLT (L:18) | MODEL K2/K3/K4/K5/K6

09103-06234

$2.35

23

WASHER (6.5X18X1.6)

09160-06084

$1.78

24

SILENCER, MUFFLER | OPT E3

14351-37E30

Unavailable

24

SILENCER, MUFFLER | OPT K1/K3/K4/K5 E28

14351-37E00

Unavailable

24

SILENCER, MUFFLER | OPT K2 E28

14351-37F20

Unavailable

24

SILENCER, MUFFLER | OPT K6 E28

14351-37F50

Unavailable
