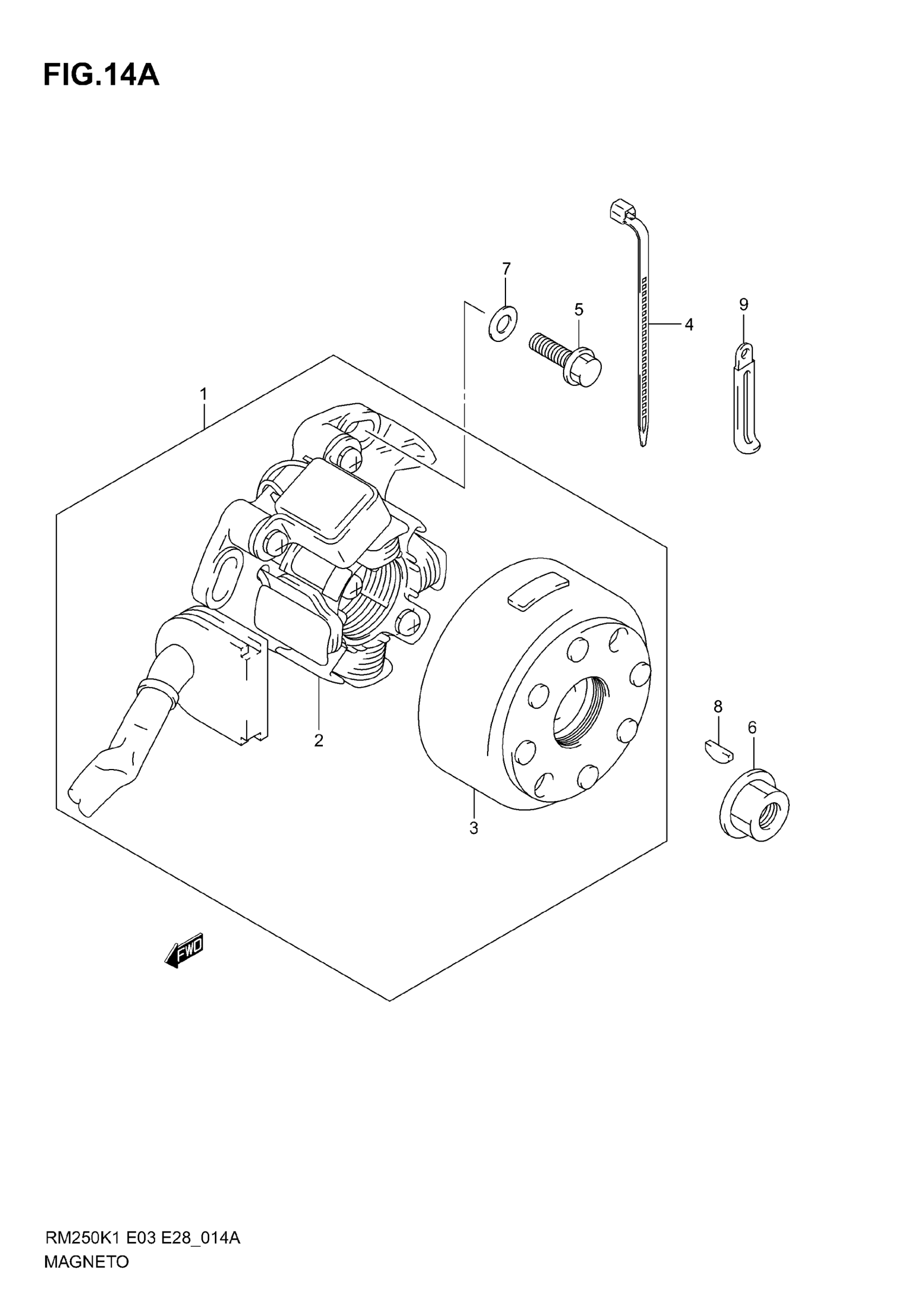

Suzuki RM250 (2006) MAGNETO (MODEL K5/K6) Diagram

#

Description

Price

1

MAGNETO ASSY | Includes Item(s) 2 - 3

32100-37F30

$905.42

2

STATOR ASSY

32101-37F30

$614.22

3

ROTOR

32102-37F20

Unavailable

4

CLAMP (L:165) | MODEL K5

09407-18402

$2.21

5

BOLT This part replaces 09103-06235.

01547-06207

$2.01

6

NUT This part replaces 08316-10123.

08316-1012A

$2.24

7

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

8

KEY, MAG

08341-31039

$1.89

9

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76
