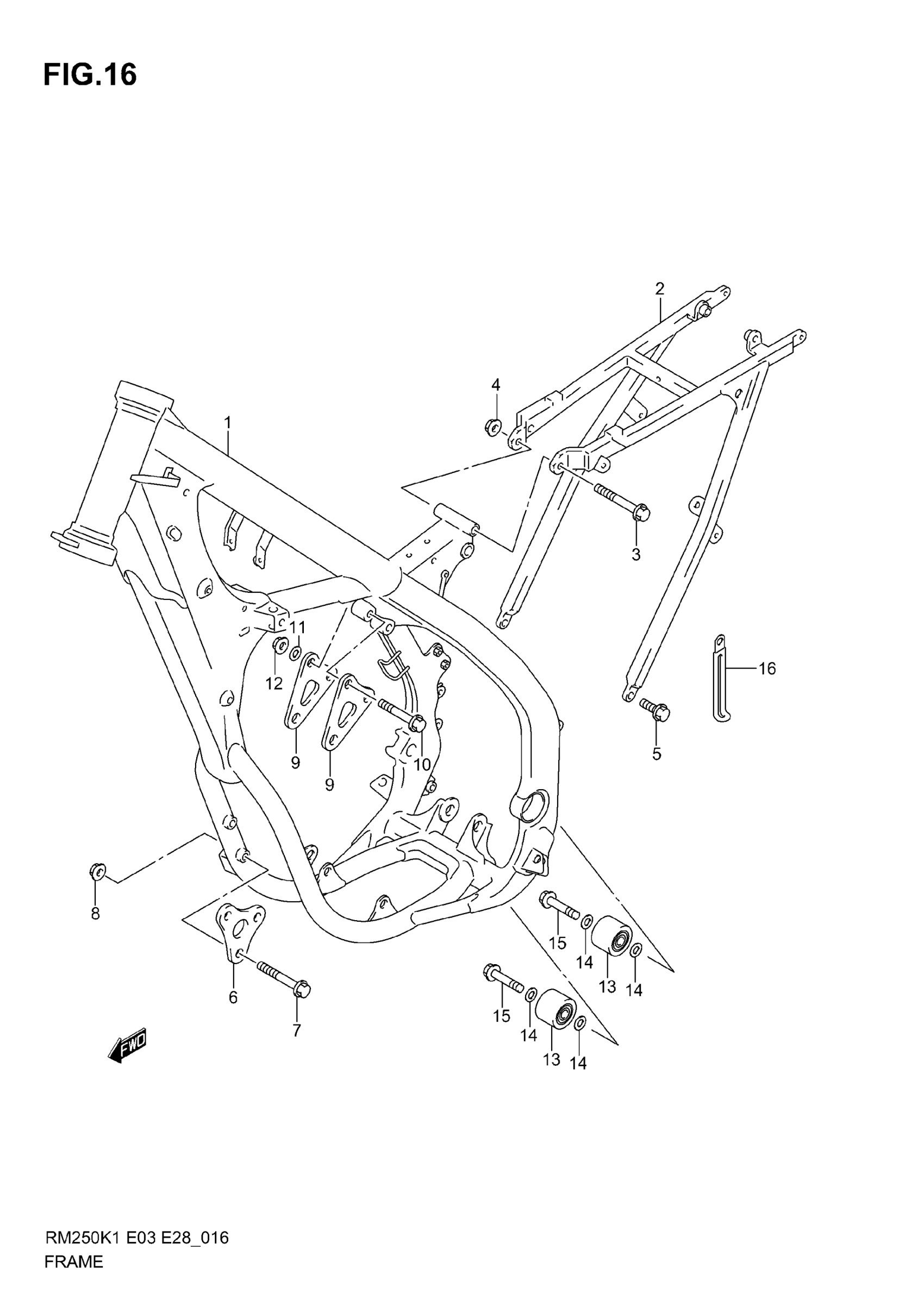

Suzuki RM250 (2006) FRAME (MODEL K1) Diagram

#

Description
Price

1

FRAME (CHARCOAL)

41100-37F00-24K

Unavailable

2

RAIL, SEAT

41200-37F00

Unavailable

3

BOLT, UPPER

09103-08070

$5.09

4

NUT

08319-31087

$2.31

5

BOLT, LOWER

09104-08036

$2.85

6

PLATE, ENGINE MOUNT FRONT

41991-37F10

$25.18

7

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

$3.19

8

NUT

09159-08067

$5.03

9

PLATE, ENGINE MOUNT UPPER This part replaces 41993-37F00.

41993-37F10

$40.35

10

BOLT

09103-08043

$2.87

11

WASHER

09164-08011

$2.80

12

NUT

09159-08067

$5.03

13

ROLLER, CHAIN CONTROL

43910-37F00

$77.40

14

WASHER

09181-08111

$1.95

15

BOLT

09103-08083

$3.38

16

CLAMP, LOWER

09404-08206

$4.03
