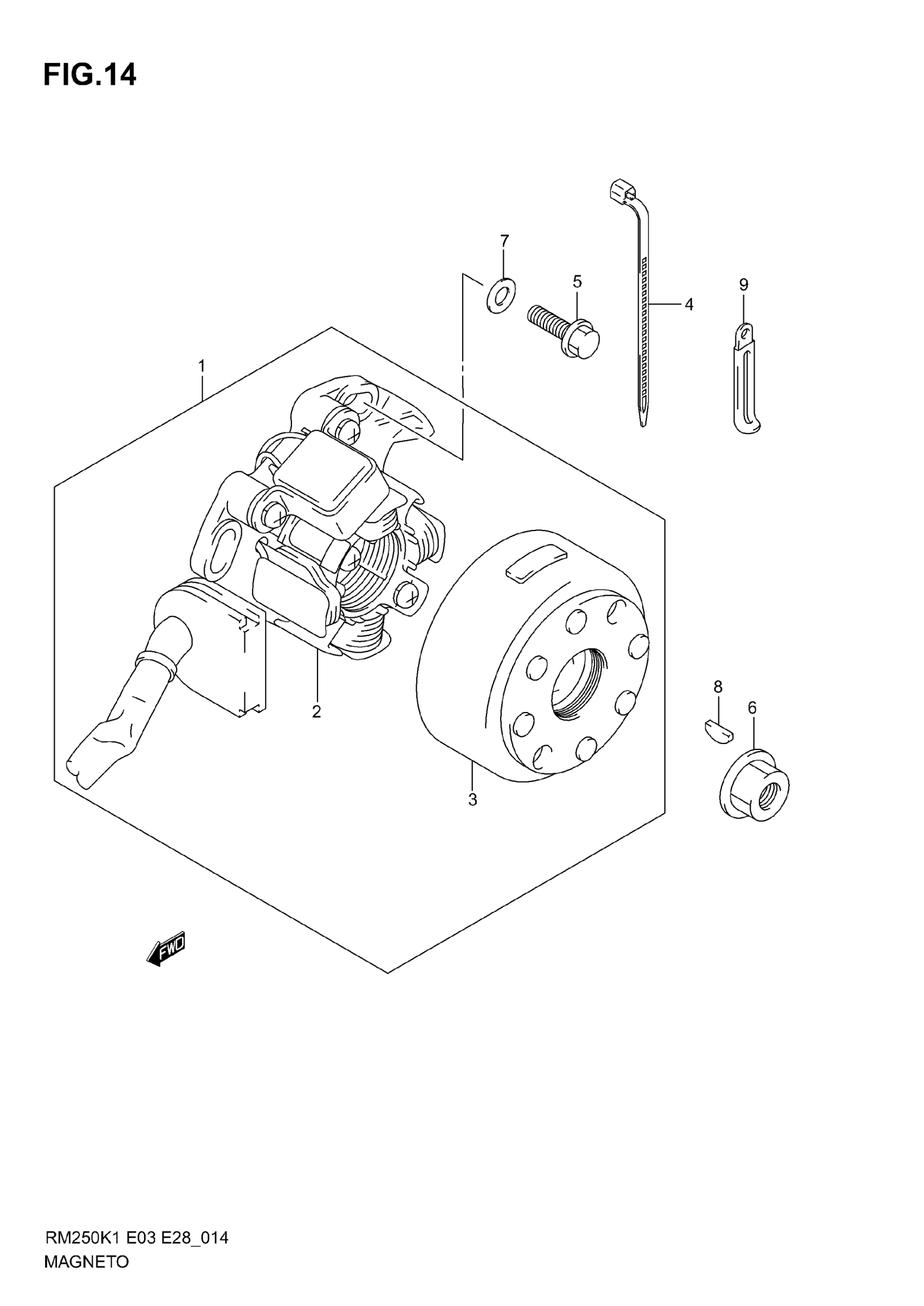

Suzuki RM250 (2006) MAGNETO (MODEL K1/K2/K3/K4) Diagram

#

Description

Price

1

MAGNETO ASSY | MODEL K1

32100-37F00

Unavailable

1

MAGNETO ASSY | MODEL K2

32100-37F10

Unavailable

1

MAGNETO ASSY | MODEL K3/K4; Includes Item(s) 2 - 3

32100-37F20

Unavailable

2

STATOR ASSY | MODEL K1

32101-37F00

Unavailable

2

STATOR ASSY | MODEL K2/K3/K4

32101-37F10

$569.23

3

ROTOR | MODEL K1/K2

32102-37F00

Unavailable

3

ROTOR | MODEL K3/K4

32102-37F20

Unavailable

4

CLAMP (L:165)

09407-18402

$2.19

5

..BOLT | MODEL K1 This part replaces 01547-06203.

01547-0620B

$2.45

5

BOLT | MODEL K2/K3/K4 This part replaces 09103-06235.

01547-06207

$2.01

6

NUT This part replaces 08316-10123.

08316-1012A

$2.26

7

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

8

KEY, MAG

08341-31039

$1.89

9

CLAMP (L:45)

09404-06429

$1.83
