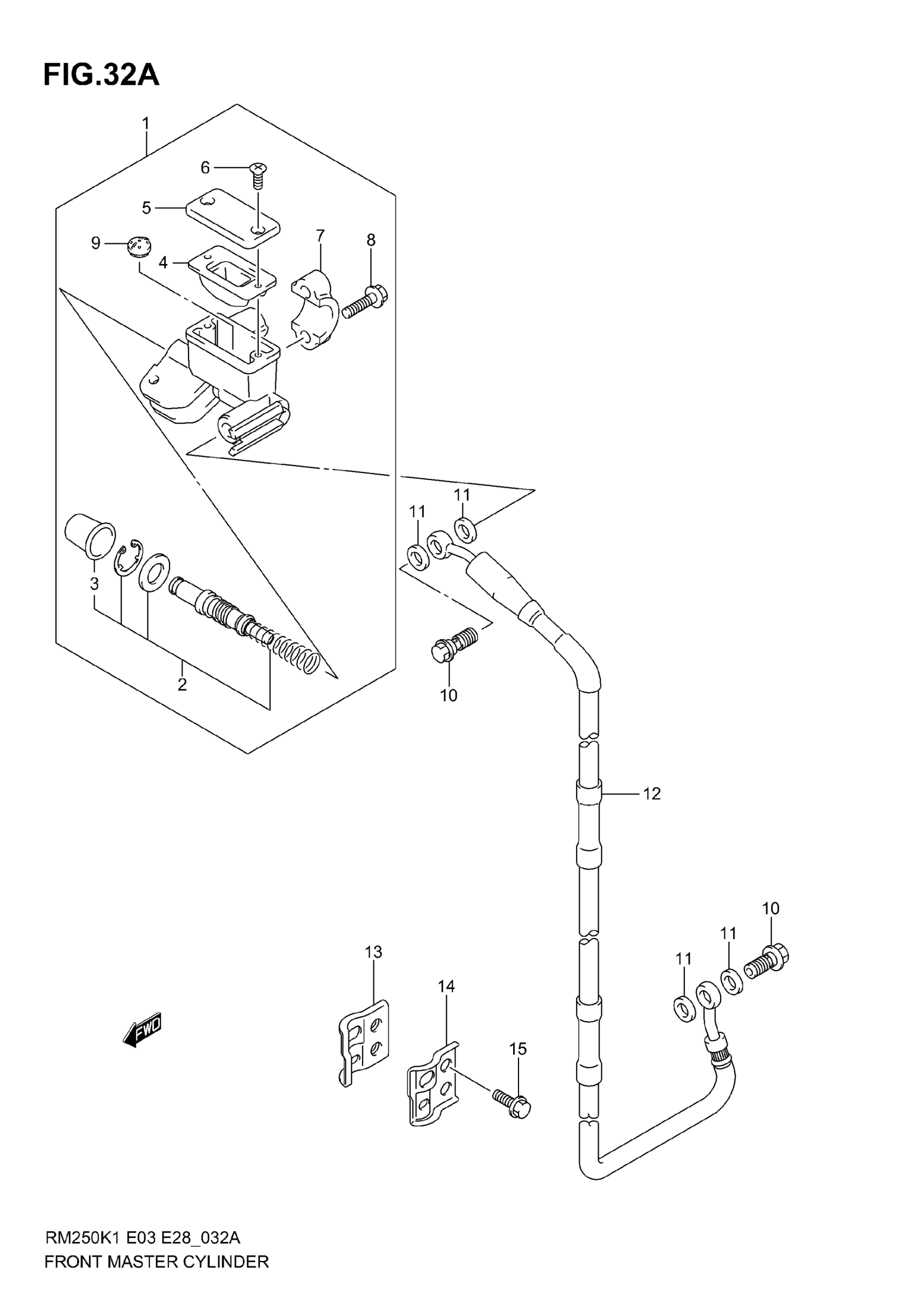

Suzuki RM250 (2006) FRONT MASTER CYLINDER (MODEL K4/K5/K6) Diagram

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9 This part replaces 59600-37F00.

59600-37F10

$252.18

PISTON & CUP SET

59600-37810

$66.23

BOOT

59666-44300

$5.30

DIAPHRAGM

59667-14500

$9.53

CAP

59669-27C01

$26.32

SCREW

69689-49300

$1.81

HOLDER (SILVER)

59671-27C00

$19.22

BOLT

59675-06F00

$5.33

SEPARATOR

59748-36E00

$10.58

UNION | MODEL K4 This part replaces 09360-10042.

09360-10062

$5.81

UNION (10X1.25X22) | MODEL K5/K6

09360-10053

$9.70

WASHER (10X15X1.5)

09161-10009

$1.83

HOSE, FRONT BRAKE | MODEL K4 This part replaces 59480-37F00.

59480-37F11

$367.67

HOSE, FRONT BRAKE | MODEL K5/K6 This part replaces 59480-37F10.

59480-37F11

$367.67

CLAMP, INNER

59260-36E00

$13.03

CLAMP, OUTER

59271-36E00

$9.97

BOLT

09103-06234

$2.17
