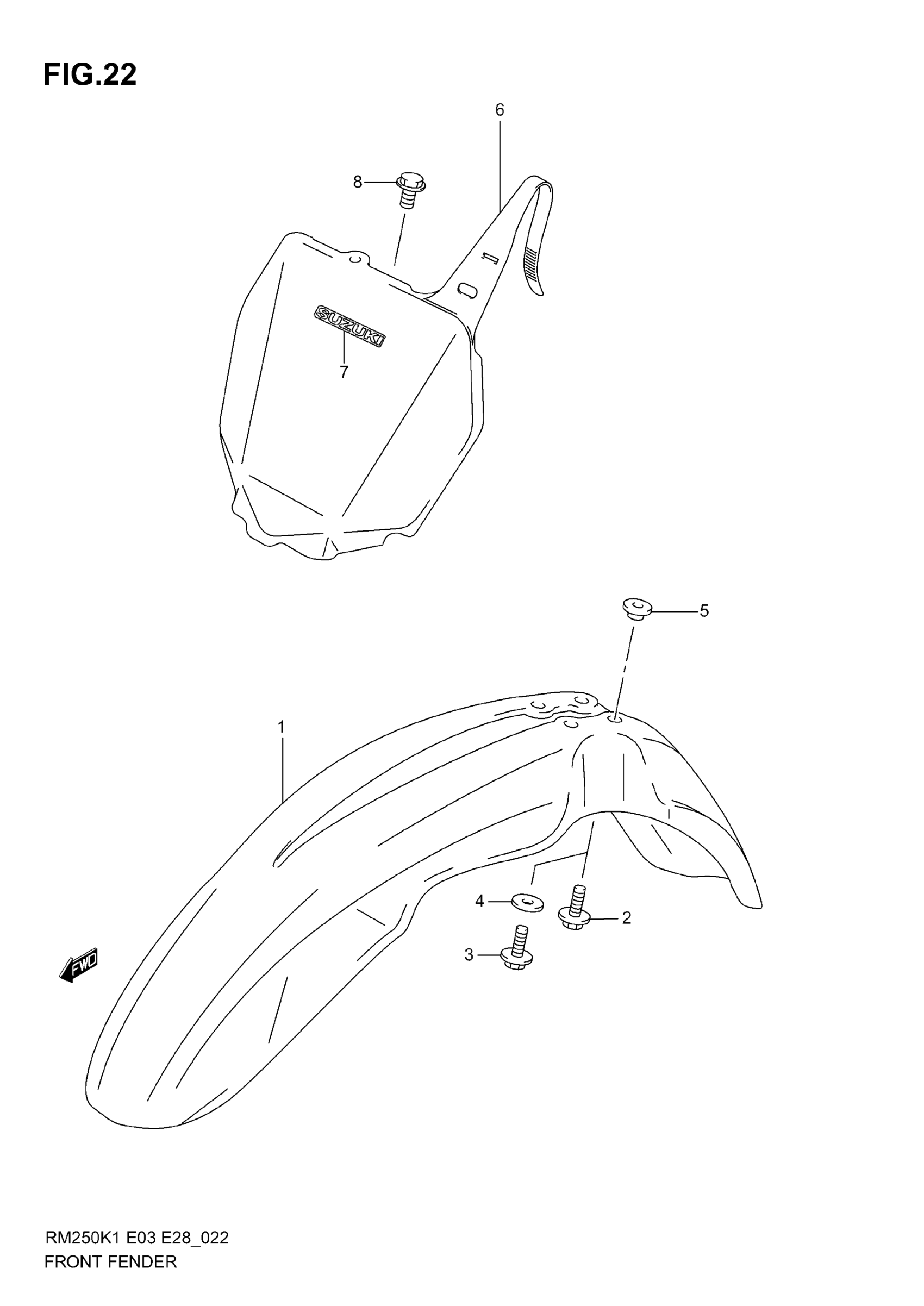

Suzuki RM250 (2006) FRONT FENDER (MODEL K1/K2/K3) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 53111-37F00-YR1.

53111-37F01-YR1

Unavailable

1

FENDER, FRONT (YELLOW) | MODEL K2/K3

53111-37F01-YU1

$48.30

2

BOLT | MODEL K1

09116-06170

$2.50

3

BOLT | MODEL K2/K3 This part replaces 01547-06163.

01547-0616B

$2.45

4

WASHER, LOWER | MODEL K2/K3

09160-06136

$1.84

5

WASHER | MODEL K1

09169-06073

$3.42

5

WASHER | MODEL K2/K3

09169-06078

$3.55

6

PLATE, FRONT NUMBER (YELLOW) | MODEL K1 This part replaces 94911-37F00-YR1.

94911-37F02-YU1

Unavailable

6

PLATE, FRONT NUMBER (YELLOW) | MODEL K2 This part replaces 94911-37F00-YU1.

94911-37F02-YU1

Unavailable

6

WASHER, FRONT NUMBER (WHITE) | MODEL K3 This part replaces 94911-37F00-30H.

94911-37F02-30H

$71.38

7

EMBLEM, "SUZUKI" | MODEL K2

68171-44B00-GY8

$12.73

7

EMBLEM, "SUZUKI" | MODEL K3

68171-44B00-8YM

$12.48

8

BOLT | MODEL K1 This part replaces 01547-06123.

01547-0612B

$1.49

8

BOLT | MODEL K2/K3

09103-06233

$2.11
