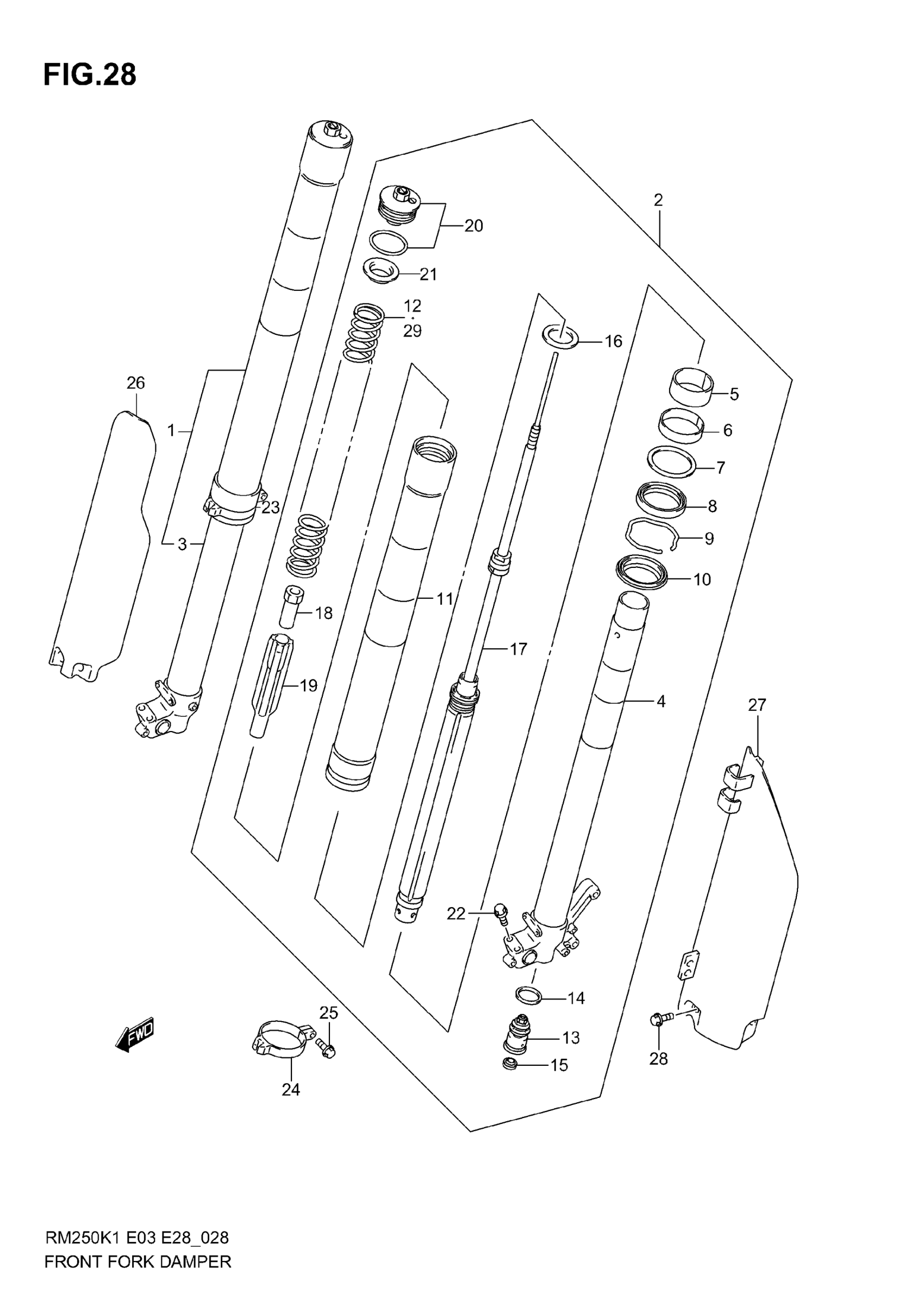

Suzuki RM250 (2006) FRONT DAMPER (MODEL K1) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-37F10

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 22

51104-37F10

Unavailable

3

TUBE, INNER RH

51110-37F00

Unavailable

4

TUBE, INNER LH

51120-37F00

Unavailable

5

BUSH, SLIDE

51121-37F00

$32.17

6

BUSH, GUIDE

51167-37F00

$24.63

7

SPACER, SEAL

51158-27C00

$6.19

8

SEAL, OIL

51153-37F00

$38.38

9

RING, OIL SEAL STOPPER

51156-27C00

$5.98

10

SEAL, DUST

51173-37F00

Unavailable

11

TUBE, OUTER

51130-37F00

Unavailable

12

SPRING, FRONT

51171-37F10

Unavailable

13

VALVE ASSY, BASE

51170-37F10

Unavailable

14

PACKING

51148-37F00

Unavailable

15

CAP, RUBBER

51189-28C00

Unavailable

16

WASHER

51355-37F00

Unavailable

17

ROD ASSY, PISTON

51128-37F01

Unavailable

18

NUT

51129-37F00

Unavailable

19

GUIDE, SPRING

51172-37F00

Unavailable

20

CAP

51351-37F00

Unavailable

21

GUIDE, SPRING

51197-37F00

Unavailable

22

BOLT This part replaces 51321-37F00.

51451-10G00

$5.11

23

GUIDE, PROTECTOR RH

51220-37F00

Unavailable

24

GUIDE, PROTECTOR LH

51210-37F00

$62.07

25

BOLT

01547-06257

$2.03

26

PROTECTOR, RH

51501-36E60

Unavailable

27

PROTECTOR, LH

51511-36E60

Unavailable

28

BOLT

01547-06107

$1.65

29

SPRING, FRONT (SOFT,K=0.41) | OPT

51171-37F20

Unavailable

29

SPRING, FRONT (HARD,K=0.45) | OPT

51171-37F30

Unavailable
