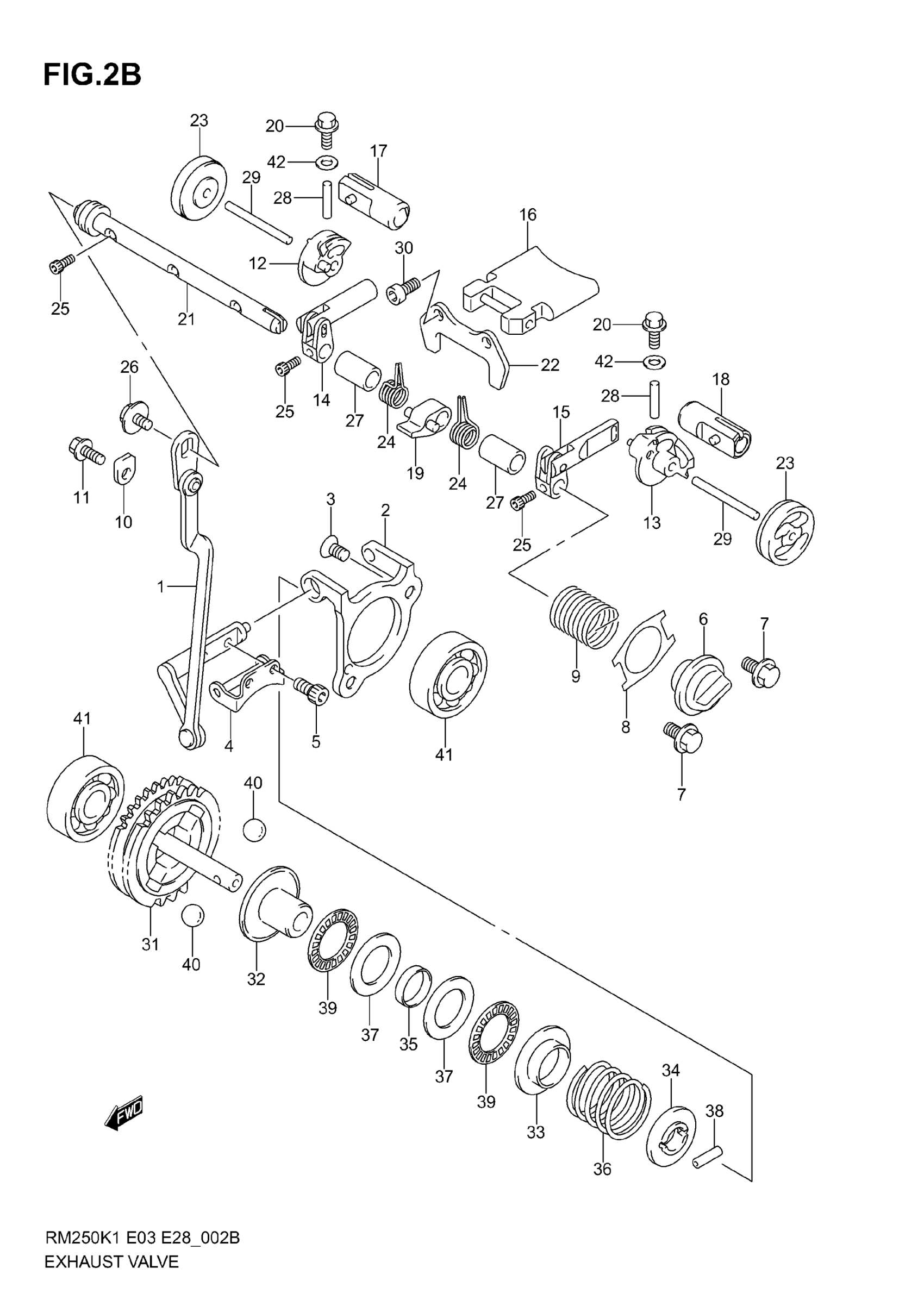

Suzuki RM250 (2006) EXHAUST VALVE (MODEL K3/K4/K5/K6) Diagram

#

Description
Price

1

ACTUATOR, EXHAUST VALVE | MODEL K3/K4

12689-37F21

Unavailable

1

ACTUATOR, EXHAUST VALVE | MODEL K5

12689-37F40

Unavailable

1

ACTUATOR, EXHAUST VALVE | MODEL K6

12689-37F50

$70.52

2

BASE, ACTUATOR

12681-03B00

$203.48

3

SCREW, ACTUATOR BASE

09120-05003

$1.76

4

ARM, ACTUATOR

12682-36F21

$10.78

5

BOLT, ACTUATOR ARM

09106-04003

$1.94

6

CAP, EXHAUST VALVE SHAFT SPRING

11274-37F20

$26.03

7

BOLT, EXHAUST VALVE CAP

09103-05022

$2.27

8

GASKET, EXHAUST VALVE SPRING CAP | MODEL K3

11279-37F20

Unavailable

8

GASKET, EXHAUST VALVE SPRING | MODEL K4/K5/K6

11279-37F30

$4.92

9

SPRING, EXHAUST VALVE SHAFT

11257-37E10

$6.40

10

RETAINER, EXHAUST VALVE SHAFT STOP

24741-21A00

$2.80

11

BOLT, EXHAUST VALVE SHAFT STOP

09103-06256

$2.27

12

CAM COMP, EXHAUST SIDE VALVE, RH | MODEL K3

11202-37F20

Unavailable

12

CAM COMP, EXHAUST SIDE VALVE, RH | MODEL K4/K5

11202-37F30

Unavailable

12

CAM COMP, EXHAUST SIDE VALVE, RH | MODEL K6

11202-37F50

Unavailable

13

CAM COMP, EXHAUST SIDE VALVE, LH | MODEL K3

11203-37F20

Unavailable

13

CAM COMP, EXHAUST SIDE VALVE, LH | MODEL K4/K5

11203-37F30

Unavailable

13

CAM COMP, EXHAUST SIDE VALVE, LH | MODEL K6

11203-37F50

$209.05

14

ROD ASSY, EXHAUST SIDE VALVE CAM, LH | MODEL K3

11204-37F20

Unavailable

14

ROD ASSY, EXHAUST SIDE VALVE CAM, RH | MODEL K4

11204-37F30

Unavailable

14

ROD ASSY, EXHAUST SIDE VALVE CAM, RH | MODEL K5

11204-37F40

Unavailable

14

ROD ASSY, EXHAUST SIDE VALVE CAM, RH | MODEL K6

11204-37F50

$102.25

15

ROD ASSY, EXHAUST SIDE VALVE CAM, LH | MODEL K3

11205-37F20

Unavailable

15

ROD ASSY, EXHAUST SIDE VALVE CAM, LH | MODEL K4

11205-37F30

Unavailable

15

ROD ASSY, EXHAUST SIDE VALVE CAM, LH | MODEL K5

11205-37F40

Unavailable

15

ROD ASSY, EXHAUST SIDE VALVE CAM, LH | MODEL K6

11205-37F50

$210.54

16

VALVE ASSY, EXHAUST MAIN | MODEL K3/K4

11206-37F20

Unavailable

16

VALVE ASSY, EXHAUST MAIN | MODEL K5

11206-37F40

Unavailable

16

VALVE ASSY, EXHAUST MAIN | MODEL K6

11206-37F50

Unavailable

17

VALVE ASSY, EXHAUST SIDE, RH | MODEL K3/K4/K5

11207-37F21

$101.56

17

VALVE ASSY, EXHAUST SIDE, RH | MODEL K6

11207-37F50

Unavailable

18

VALVE ASSY, EXHAUST SIDE, LH | MODEL K3/K4/K5

11208-37F21

$101.56

18

VALVE ASSY, EXHAUST SIDE, LH | MODEL K6

11208-37F50

Unavailable

19

ARM, EXHAUST MAIN VALVE | MODEL K3/K4

11209-37F21

Unavailable

19

ARM, EXHAUST MAIN VALVE | MODEL K5

11209-37F40

Unavailable

19

ARM, EXHAUST MAIN VALVE | MODEL K6

11209-37F50

Unavailable

20

CAP, EXHAUST SIDE VALVE

11251-37F20

$8.73

21

SHAFT, EXHAUST VALVE

11259-37F21

$115.72

22

PLATE, EXHAUST MAIN VALVE | MODEL K3/K4

11261-37F20

Unavailable

22

PLATE, EXHAUST MAIN VALVE | MODEL K5/K6

11261-37F40

$10.08

23

SPACER, EXHAUST SIDE VALVE | MODEL K3/K4/K5

11273-37F20

Unavailable

23

SPACER, EXHAUST SIDE VALVW | MODEL K6

11273-37F50

Unavailable

24

SPRING, EXHAUST MAIN VALVE ARM | MODEL K3/K4

11288-37F20

Unavailable

24

SPRING, EXHAUST MAIN VALVE ARM | MODEL K5/K6

11288-37F40

$6.08

25

BOLT, EXHAUST VALVE SHAFT

09106-04003

$1.94

26

BOLT, EXHAUST VALVE SHAFT

09118-05003

$2.80

27

SPACER, EXHAUST VALVE SHAFT | MODEL K3/K4

09180-08067

$2.40

28

PIN, EXHAUST SIDE VALVE STOP (4X23.8)

09261-04005

$1.80

29

PIN (4X39.8)

09261-04014

$2.92

30

BOLT This part replaces 07130-05123.

07130-0512B

$2.61

31

GOVERNOR, DRIVE | MODEL K3

12670-37820

Unavailable

31

GOVERNOR, DRIVE | MODEL K4/K5/K6

12670-37830

$166.27

32

GOVERNOR, DRIVEN

12672-36F10

$43.50

33

STOPPER, GOVERNOR SPRING NO.1

12674-36F10

$31.90

34

STOPPER, GOVERNOR SPRING NO.2

12675-36F11

$23.73

35

SPACER, GOVERNOR

12676-36F10

$19.97

36

SPRING, GOVERNOR | MODEL K3

12677-36F10

Unavailable

36

SPRING, GOVERNOR | MODEL K4

12677-36F30

Unavailable

36

SPRING, GOVERNOR | MODEL K5/K6

12677-37F40

$7.30

37

WASHER, GOVERNOR THRUST

09181-15223

$2.64

38

PIN, GOVERNOR SHAFT

09261-03017

$2.67

39

BEARING, GOVERNOR THRUST

09263-15003

$7.70

40

BALL, GOVERNOR

06111-12004

$2.01

41

BEARING, GOVERNOR SHAFT

09262-08005

$11.77

42

GASKET

09168-08015

$2.80
