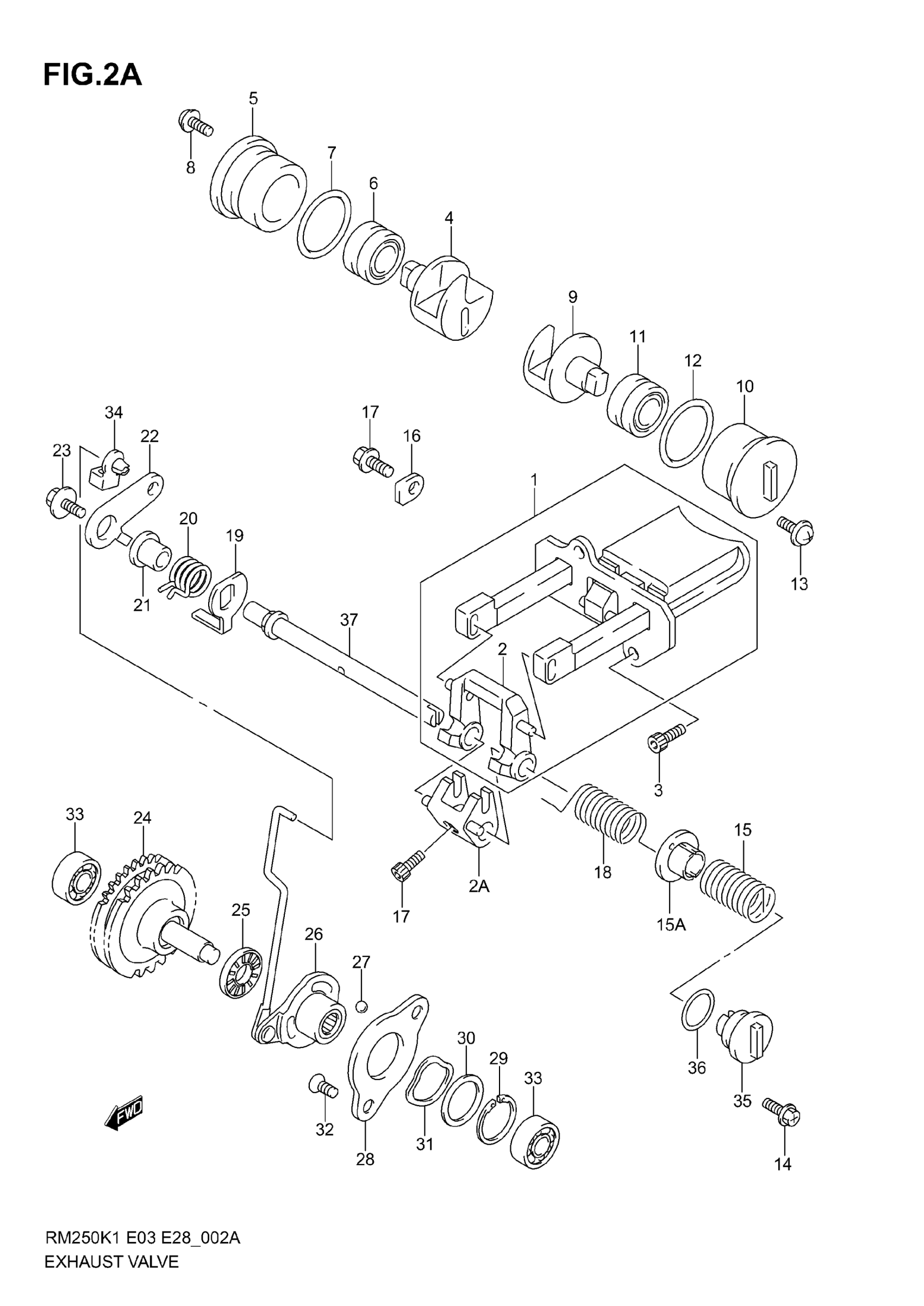

Suzuki RM250 (2006) EXHAUST VALVE (MODEL K2) Diagram

#

Description
Price

1

VALVE, EXHAUST MAIN | Includes Item(s) 2

11206-37F10

Unavailable

2

VALVE EXHAUST MAIN

11254-37F10

Unavailable

2A

ARM, EXHAUST VALVE

11209-37F10

Unavailable

3

BOLT This part replaces 07130-05123.

07130-0512B

$2.50

4

VALVE, EXHAUST SIDE RH

11255-37F10

Unavailable

5

CAP, EXHAUST SIDE VALVE

11262-37F00

Unavailable

6

BEARING, SIDE VALVE

09263-12026

$55.27

7

O RING

09280-29005

Unavailable

8

.SCREW This part replaces 02112-15123.

02142-0512A

$1.49

9

VALVE, EXHAUST SIDE LH

11256-37F10

Unavailable

10

CAP, EXHAUST SIDE VALVE

11262-37F00

Unavailable

11

BEARING, SIDE VALVE

09263-12026

$55.27

12

O RING

09280-29005

Unavailable

13

.SCREW This part replaces 02112-15123.

02142-0512A

$1.49

14

SCREW This part replaces 02162-05123.

02162-0512A

$1.98

15

SPRING, EXHAUST VALVE SHAFT

11257-37F10

Unavailable

15A

SPACER, EXHAUST VALVE SHAFT

11253-37F10

Unavailable

16

RETAINER, EX VALVE STOP

24741-21A00

$2.81

17

BOLT This part replaces 01547-06103.

01547-0610B

$2.45

18

SPRING, EXHAUST SIDE VALVE

11289-37F10

Unavailable

19

LEVER, EXHAUST VALVE NO.2

11267-00B21

$4.46

20

SPRING

09444-16010

Unavailable

21

SPACER

11268-01B01

$8.65

22

LEVER, EXHAUST VALVE NO.1

11266-37F00

Unavailable

23

BOLT (5X12)

09118-05005

$3.20

24

GOVERNOR ASSY, EXHAUST VALVE

12670-37E11

Unavailable

25

BEARING (10.1X22X2.8)

09263-10002

$10.19

26

ACTUATOR, EXHAUST VALVE

12680-37810

Unavailable

27

BALL

06111-06003

$1.49

28

STATOR, ACTUATOR

12682-01B02

$36.17

29

CIRCLIP

09380-19003

$2.15

30

SHIM (19.1X25X0.3)

09181-19004

$3.78

31

LOCK WASHER

09164-19001

$4.69

32

SCREW (5X10)

09120-05003

$1.91

33

BEARING

09262-08005

$12.67

34

BUSH, EXHAUST VALVE

12686-01B00

$1.65

35

CAP, EXHAUST VALVE

11274-37E11

Unavailable

36

O RING (D:1.9,ID:14.5)

09280-15006

$2.90

37

SHAFT, EXHAUST VALVE

11259-37E00

Unavailable
