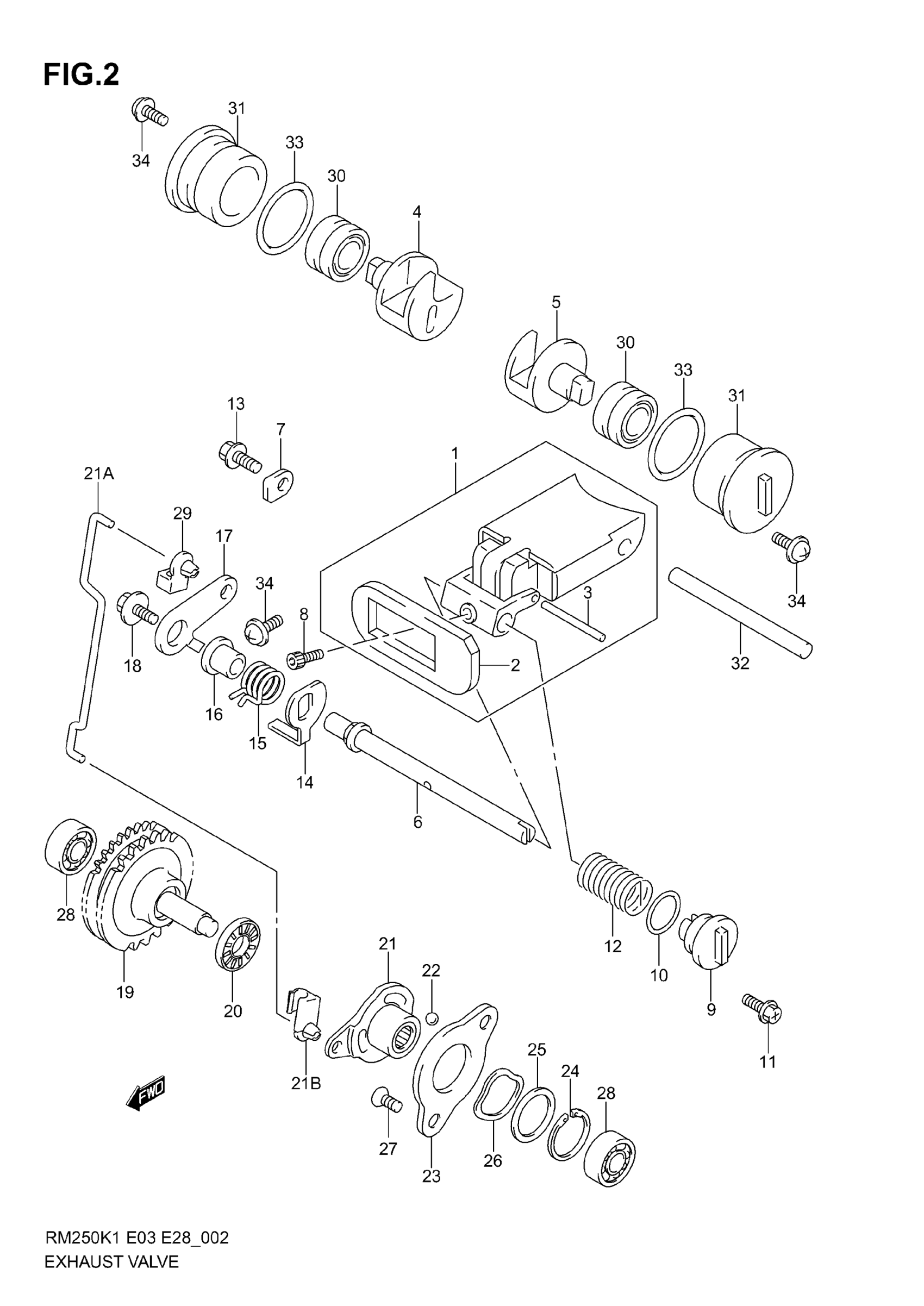

Suzuki RM250 (2006) EXHAUST VALVE (MODEL K1) Diagram

#

Description
Price

1

VALVE, EXHAUST MAIN | Includes Item(s) 2 - 3

11206-37F00

Unavailable

2

GUIDE, EXHAUST VALVE

11261-37F00

Unavailable

3

PIN, EXHAUST VALVE

09261-04013

Unavailable

4

VALVE, EXHAUST SIDE RH

11255-37F00

Unavailable

5

VALVE, EXHAUST SIDE LH

11256-37F00

Unavailable

6

SHAFT, EXHAUST VALVE

11259-37E00

Unavailable

7

RETAINER, EX VALVE STOP

24741-21A00

$2.81

8

BOLT (4X8)

09106-04003

$2.07

9

CAP, EXHAUST VALVE

11274-37E11

Unavailable

10

O RING (D:1.9,ID:14.5)

09280-15006

$2.90

11

SCREW This part replaces 02162-05123.

02162-0512A

$1.98

12

SPRING

11257-37F00

Unavailable

13

BOLT This part replaces 01547-06103.

01547-0610B

$2.45

14

LEVER, EXHAUST VALVE NO.2

11267-00B21

$4.46

15

SPRING

09444-16010

Unavailable

16

SPACER

11268-01B01

$8.65

17

LEVER, EXHAUST VALVE NO.1

11266-37F00

Unavailable

18

BOLT (5X12)

09118-05005

$3.20

19

GOVERNOR ASSY, EXHAUST VALVE

12670-37E11

Unavailable

20

BEARING (10.1X22X2.8)

09263-10002

$10.19

21

ACTUATOR, EXHAUST VALVE

12680-01830

Unavailable

21A

ROD, EXHAUST VALVE

12685-37F00

$5.60

21B

BUSH, EXHAUST VALVE NO.2

12686-36E00

$2.37

22

BALL

06111-06003

$1.49

23

STATOR, ACTUATOR

12682-01B02

$36.17

24

CIRCLIP

09380-19003

$2.15

25

SHIM (19.1X25X0.3)

09181-19004

$3.78

26

LOCK WASHER

09164-19001

$4.69

27

SCREW (5X10)

09120-05003

$1.91

28

BEARING

09262-08005

$12.67

29

BUSH, EXHAUST VALVE

12686-01B00

$1.65

30

BEARING, SIDE VALVE

09263-12026

$55.27

31

CAP, EX SIDE VALVE

11262-37F00

Unavailable

32

PIN

09202-04020

Unavailable

33

O RING

09280-29005

Unavailable

34

.SCREW This part replaces 02112-15123.

02142-0512A

$1.49
