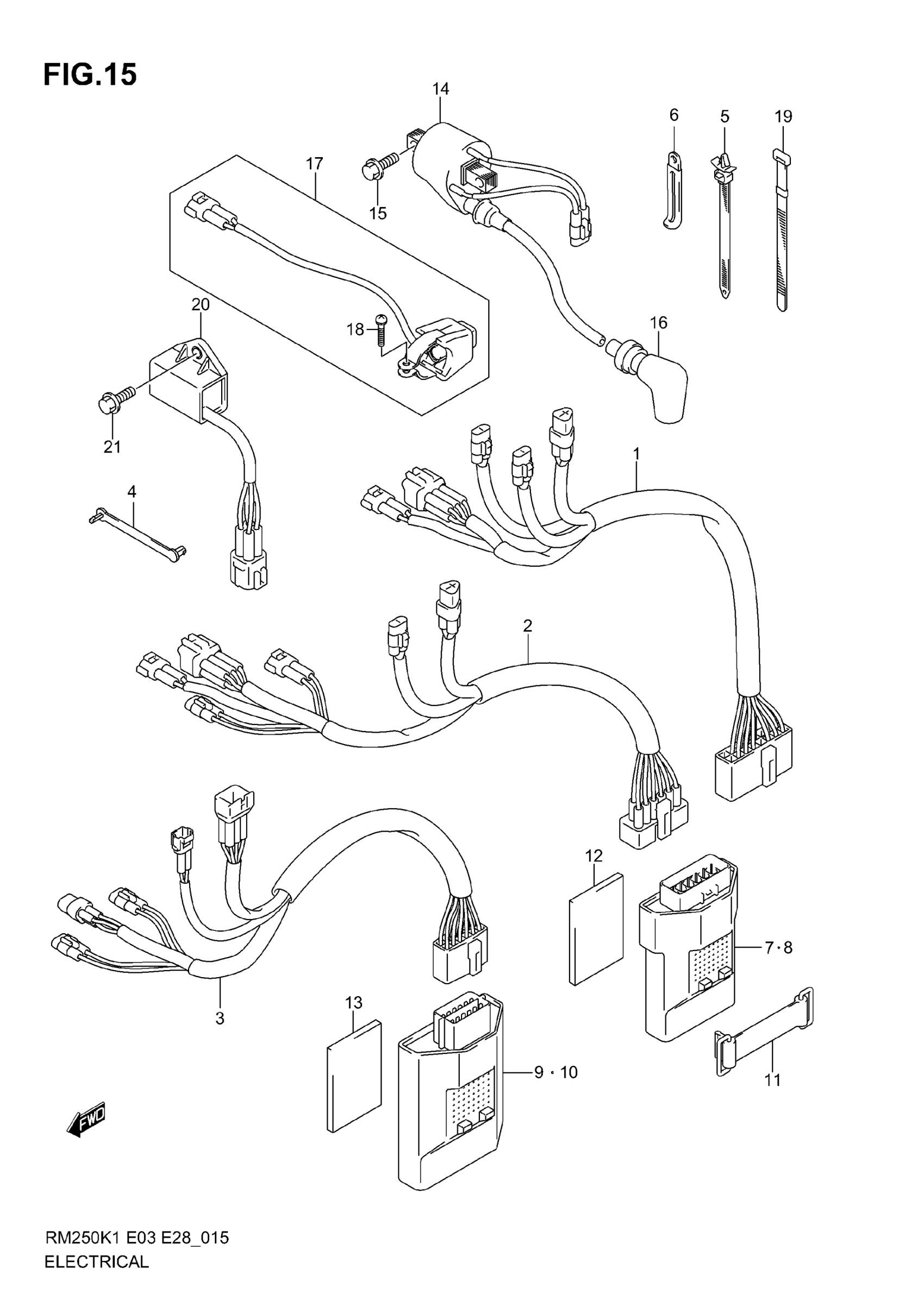

Suzuki RM250 (2006) ELECTRICAL (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL K1

36610-37F00

Unavailable

2

HARNESS, WIRING | MODEL K2

36610-37F10

Unavailable

3

HARNESS, WIRING | MODEL K3/K4

36610-37F20

Unavailable

4

CLAMP

36651-48E00

$3.25

5

CLAMP (L:90)

09407-11402

$1.80

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

5

CLAMP (L:235)

09407-25401

$4.66

6

CLAMP (L:45)

09404-06429

$1.83

7

CDI, UNIT | MODEL K1

32900-37F00

Unavailable

8

CDI, UNIT | MODEL K2

32900-37F10

Unavailable

9

CDI, UNIT | MODEL K3

32900-37F20

Unavailable

10

CDI, UNIT | MODEL K4

32900-37F30

Unavailable

11

BAND, CDI UNIT | MODEL K2/K3/K4

32942-14301

$11.89

12

PROTECTOR (170X95X3.0) | MODEL K2 CUT AS REQUIRED PROFILE (45X60),(20X11)

33651-37000

$4.48

13

PROTECTOR (170X95X3.0) | MODEL K3/K4 CUT AS REQUIRED PROFILE (40X85)

33651-37000

$4.48

14

COIL ASSY, IGNITION | MODEL K1/K2/K3 This part replaces 33410-37E00.

33410-08G00

$104.07

14

COIL ASSY, IGNITION | MODEL K4

33410-37F00

$127.20

15

BOLT | MODEL K1 This part replaces 01547-06163.

01547-0616B

$2.45

15

BOLT, IGNITION (6X16) | MODEL K2/K3/K4

09103-06234

$2.35

16

CAP, SPARK PLUG

33510-20A02

$24.39

17

SWITCH ASSY,ENGINE STOP | Includes Item(s) 18

37820-36E00

$25.46

18

SCREW

02112-33165

$1.49

19

CLAMP, ENGINE STOP (L:128)

09407-12402

$3.04

20

RECTIFIER ASSY | MODEL K1

32800-37F00

Unavailable

21

BOLT This part replaces 01547-06123.

01547-0612B

$1.49
