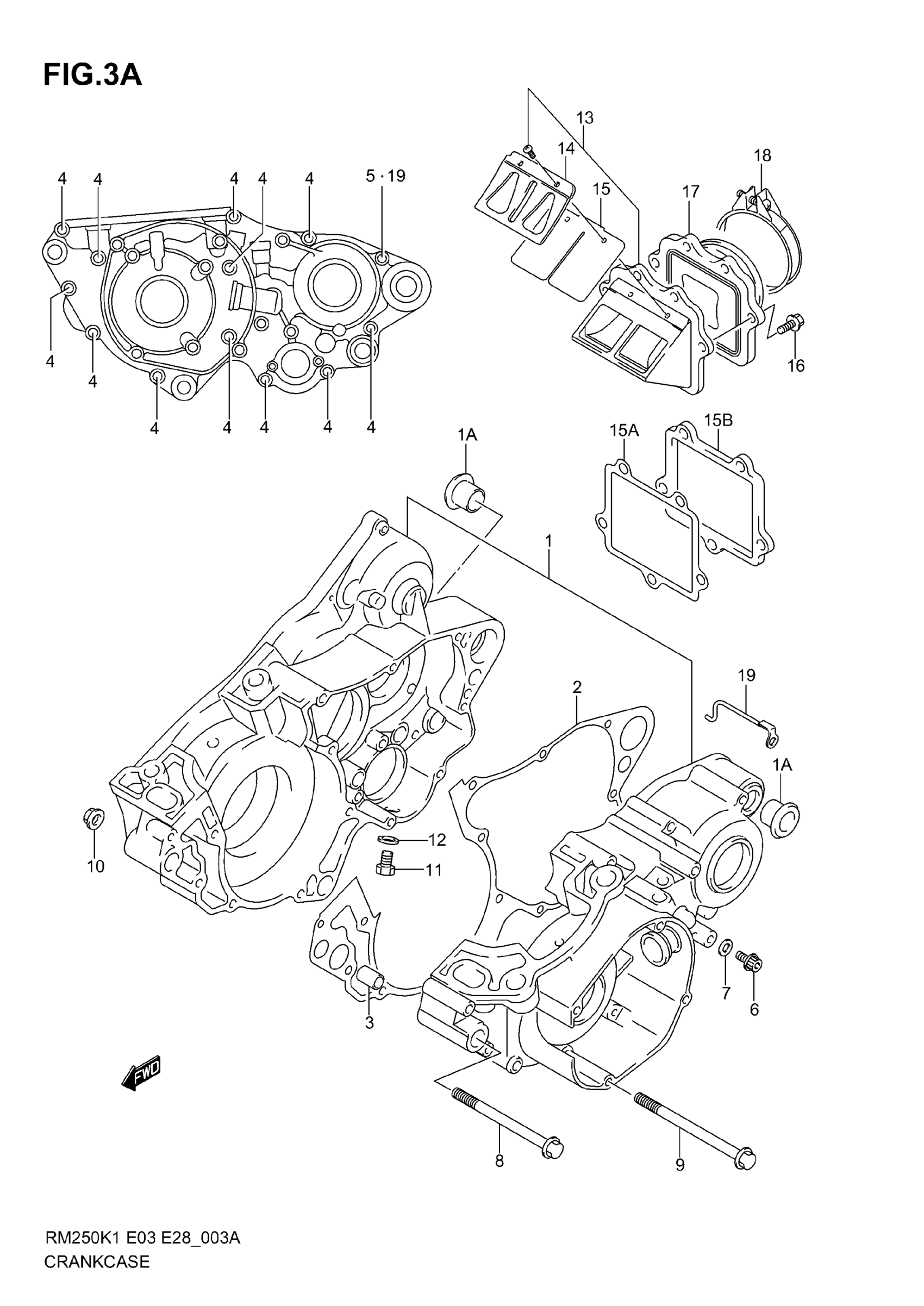

Suzuki RM250 (2006) CRANKCASE (MODEL K3/K4/K5/K6) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K3 This part replaces 11300-37881.

11300-37884

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K4 This part replaces 11300-37890.

11300-37893

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K5 This part replaces 11301-37840.

11301-37841

Unavailable

1

CRANKCASE SET | MODEL K6; Includes Item(s) 1A - 7 This part replaces 11301-37850.

11301-37851

Unavailable

1A

BUSH | MODEL K3/K4

11315-37F10

Unavailable

2

GASKET, CRANKCASE

11481-37F20

$17.47

3

PIN

09206-13017

$7.61

4

BOLT (L:50)

09103-06244

$2.76

5

BOLT (L:65)

09103-06245

$3.65

6

PLUG, OIL DRAIN This part replaces 07120-06103.

07120-0610B

$2.45

7

GASKET

09168-06004

$1.49

8

BOLT (10X105)

09103-10087

$7.03

9

BOLT (10X118) | MODEL K3/K4/K5

09103-10076

$7.18

9

BOLT (10X125) | MODEL K6

09103-10399

$7.05

10

NUT

09159-10078

$2.96

11

PLUG, DRAIN

09247-12012

$6.88

12

GASKET, OIL DRAIN PLUG

09168-12002

$1.59

13

VALVE ASSY, REED | MODEL K3/K4/K5 This part replaces 13150-37F00.

13150-37F30

Unavailable

13

VALVE ASSY, REED | MODEL K6; Includes Item(s) 14 - 15

13150-37F30

Unavailable

14

STOPPER, REED VALVE

13152-37F00

Unavailable

15

VALVE, REED | MODEL K3/K4/K5 This part replaces 13153-37F00.

13153-37F30

$122.58

15

VALVE, REED | MODEL K6

13153-37F30

$122.58

15A

GASKET, REED VALVE | MODEL K6

13155-37F00

$11.90

15B

SPACER, REED VALVE | MODEL K6

13156-37F00

$26.38

16

BOLT | MODEL K3/K4/K5 This part replaces 09103-06235.

01547-06207

$2.01

16

BOLT | MODEL K6

09103-06250

$2.23

17

PIPE,INTAKE | MODEL K3/K4/K5 This part replaces 13110-37F20.

13110-37F21

$56.87

17

PIPE,INTAKE | MODEL K6 This part replaces 13110-37F40.

13110-37F41

$51.07

18

CLAMP | MODEL K3/K4 This part replaces 09402-56208.

09402-56901

$5.36

18

CLAMP | MODEL K5/K6

09402-56901

$5.36

19

GUIDE, CARBURETOR HOSE

13694-37F30

$7.27
