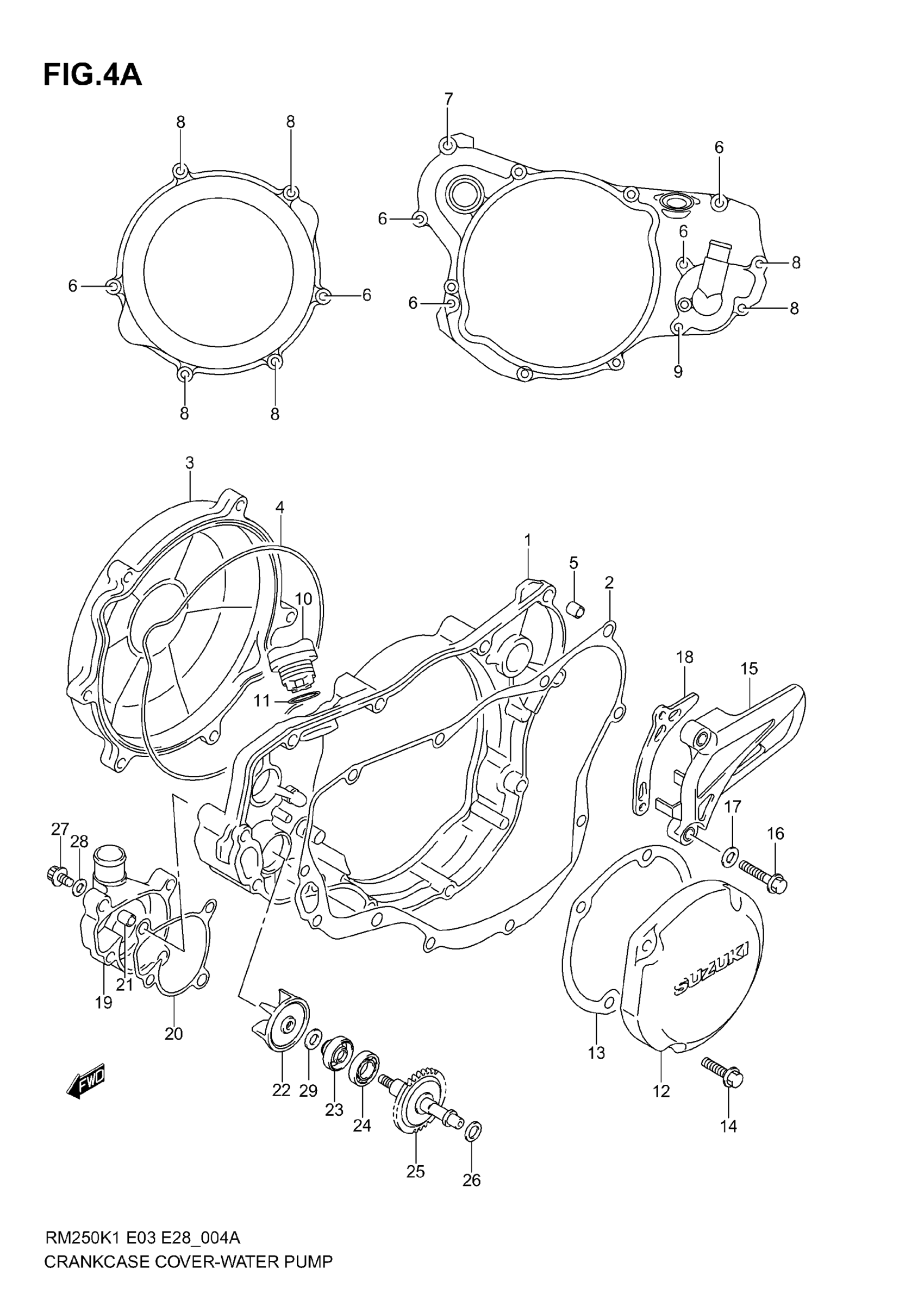

Suzuki RM250 (2006) CRANKCASE COVER-WATER PUMP (MODEL K3/K4/K5/K6) Diagram

#

Description
Price

1

COVER, CLUTCH

11341-37F20

$250.17

2

GASKET, CLUTCH COVER

11482-37F01

$17.21

3

COVER, CLUTCH OUTER

11371-37F01

$223.88

4

O-RING,CL COVER This part replaces 11484-37E00.

11484-37E01

$17.94

5

PIN

04211-09109

$1.65

6

BOLT

09103-06250

$2.23

7

BOLT

09103-06251

$2.35

8

BOLT

09103-06253

$2.89

9

BOLT

09103-06245

$3.65

10

PLUG, OIL FILLER | MODEL K3

11971-12C51

$6.46

10

PLUG,ENGINE OIL FILLER | MODEL K4/K5/K6

11971-25D00

$5.11

11

O RING

09280-17003

$1.65

12

COVER, MAGNETO

11351-37F00

$209.50

13

GASKET, MAGNETO COVER

11483-37E02

$10.12

14

BOLT This part replaces 09103-06235.

01547-06207

$2.01

15

COVER, SPROCKET

11360-36E00

$30.44

16

BOLT

09103-06251

$2.35

17

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

18

PLATE, CHAIN GUIDE

27641-37E00

$10.28

19

CASE, WATER PUMP

17411-37F10

$94.35

20

GASKET, WATER PUMP CASE

17431-37F00

$7.22

21

PIN

04211-09109

$1.65

22

IMPELLER, WATER PUMP

17491-37F10

$24.03

23

SEAL, WATER PUMP OIL

17461-37F00

$7.69

24

BEARING

08113-69010

$23.28

25

SHAFT, WATER PUMP

17510-37F10

$72.50

26

WASHER

09181-08139

$1.91

27

PLUG, OIL DRAIN This part replaces 07120-06103.

07120-0610B

$2.45

28

GASKET

09168-06004

$1.49

29

WASHER, WATER PUMP IMPELLER

08211-06121

$1.54
