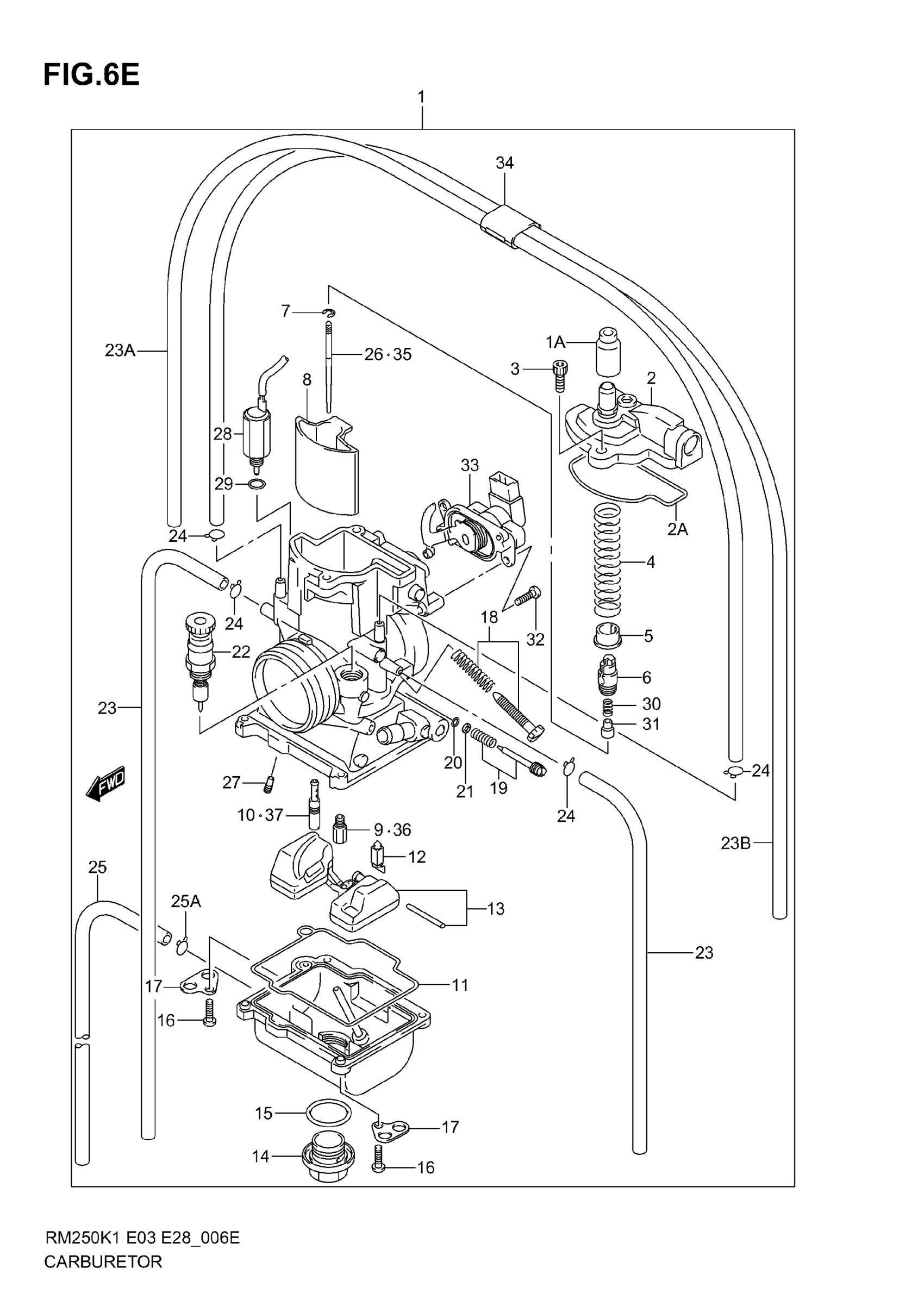

Suzuki RM250 (2006) CARBURETOR (MODEL K6) Diagram

#

Description
Price

1

CARBURETOR ASSY | E3

13200-37FA0

Unavailable

1

CARBURETOR ASSY | E28; Includes Item(s) 1A - 34

13200-37FB0

Unavailable

1A

CAP, CARBURETOR

13681-43D30

$10.23

2

TOP

13261-37F80

Unavailable

2A

O RING

13262-37F80

$9.55

3

SCREW

13262-37F00

$6.87

4

SPRING, THROTTLE VALVE

13573-37F00

$16.93

5

COLLAR, THROTTLE VALVE

13424-43D30

$6.00

6

HOLDER, CABLE

13581-37F80

$25.83

7

CLIP, NEEDLE

13394-28E00

$5.25

8

VALVE, THROTTLE

13551-37F80

Unavailable

9

JET, MAIN (168) | E3

09491-33010

$17.37

9

JET, MAIN (172) | E28

09491-34011

$17.37

10

JET, PILOT (48) | E3

09492-48013

$17.37

10

JET, PILOT (50) | E28

09492-50023

$17.37

11

GASKET, FLOAT CHAMBER

13696-44E00

$11.58

12

VALVE SET, FLOAT

13370-43D30

$53.17

13

FLOAT SET

13240-36E20

$76.88

14

BOLT, DRAIN

13247-28E00

$21.90

15

O RING

13246-28E00

$5.17

16

SCREW

13602-26E10

$4.62

17

PLATE

13693-36E00

$6.77

18

SCREW SET, STOP

13270-43D30

$19.13

19

SCREW SET, AIR | 1,1/2

13280-43D30

$25.75

20

O RING

13295-26E00

$4.34

21

WASHER

13291-26E00

$2.93

22

STARTER VALVE

13410-43D30

$91.08

23

HOSE (4X7X620) | RH L:620!400 LH L:620!360

13686-36E00

$10.28

23A

HOSE (4X7X620) | L:620!600

13686-36E00

$10.28

23B

HOSE (4X7X620) | L:620!550

13686-36E00

$10.28

24

CLIP

09401-06101

$2.03

25

HOSE (3.5X6.5X600) | L:600!300

09351-35653-600

$4.64

25A

CLIP This part replaces 09401-05402.

09401-05402-XC0

$1.65

26

NEEDLE, JET | E3

13383-37FE0

$16.13

26

NEEDLE, JET | E28

13383-37FK0

$18.97

27

JET, POWER (45) | E3

13345-37F00

$17.37

27

JET, POWER (55) | E28

09492-55019

$18.02

28

SOLENOID ASSY

13160-37E01

$168.77

29

O RING

13453-37E00

$5.32

30

SPRING

13582-37F80

$5.10

31

COLLAR

13583-37F80

$5.98

32

SCREW

13602-37F00

Unavailable

33

SENSOR ASSY

13580-37F80

$297.98

34

CLIP

13451-37F00

$6.23

35

NEEDLE, JET (NECF) | OPT

13383-37FA0

$20.45

35

NEEDLE, JET (NECG) | OPT

13383-37FB0

$19.72

35

NEEDLE, JET (NECH) | OPT

13383-37FC0

$16.67

35

NEEDLE, JET (NECW) | OPT

13383-37FD0

$16.43

35

NEEDLE, JET (NECJ) | OPT

13383-37FE0

$16.13

35

NEEDLE, JET (NECK) | OPT

13383-37FF0

$19.72

35

NEEDLE, JET (NECL) | OPT

13383-37FG0

$20.45

35

NEEDLE, JET (NEDF) | OPT

13383-37FH0

$20.45

35

NEEDLE, JET (NEDG) | OPT

13383-37FJ0

$19.72

35

NEEDLE, JET (NEDH) | OPT

13383-37FK0

$18.97

35

NEEDLE, JET (NEDW) | OPT

13383-37FL0

$16.13

35

NEEDLE, JET (NEDJ) | OPT

13383-37FM0

$16.13

35

NEEDLE, JET (NEDK) | OPT

13383-37FN0

$19.72

35

NEEDLE, JET (NEDL) | OPT

13383-37FP0

$20.45

36

JET, MAIN (150) | OPT

09491-30018

$18.02

36

JET, MAIN (152) | OPT

09491-30019

$18.02

36

JET, MAIN (155) | OPT

09491-31012

$18.02

36

JET, MAIN (158) | OPT

09491-31013

$18.02

36

JET, MAIN (160) | OPT

09491-32010

$17.37

36

JET, MAIN (162) | OPT

09491-32011

$17.37

36

JET, MAIN (165) | OPT

09491-33009

$17.37

36

JET, MAIN (168) | OPT

09491-33010

$17.37

36

JET, MAIN (170) | OPT

09491-34010

$17.37

36

JET, MAIN (172) | OPT

09491-34011

$17.37

36

JET, MAIN (175) | OPT

09491-35009

$17.68

36

JET, MAIN (178) | OPT

09491-35010

$18.02

36

JET, MAIN (180) | OPT

09491-36008

$18.02

36

JET, MAIN (185) | OPT

09491-37008

Unavailable

36

JET, MAIN (190) | OPT

09491-38011

Unavailable

36

JET, MAIN (195) | OPT

09491-39001

Unavailable

36

JET, MAIN (200) | OPT

09491-40013

$18.02

36

JET, MAIN (205) | OPT

09491-41001

Unavailable

36

JET, MAIN (210) | OPT

09491-42006

Unavailable

37

JET, PILOT (35) | OPT

09492-35019

$17.68

37

JET, PILOT (40) | OPT

09492-40022

$17.37

37

JET, PILOT (42) | OPT

09492-42019

$14.76

37

JET, PILOT (45) | OPT

09492-45032

$17.37

37

JET, PILOT (48) | OPT

09492-48013

$17.37

37

JET, PILOT (50) | OPT

09492-50023

$17.37

37

JET, PILOT (52) | OPT

09492-52011

$17.68

37

JET, PILOT (55) | OPT

09492-55017

$18.02

37

JET, PILOT (58) | OPT

09492-58001

$18.02

37

JET, PILOT (60) | OPT

09492-60016

Unavailable
