2006 Suzuki RM250 Carburetor Diagram

← All diagrams

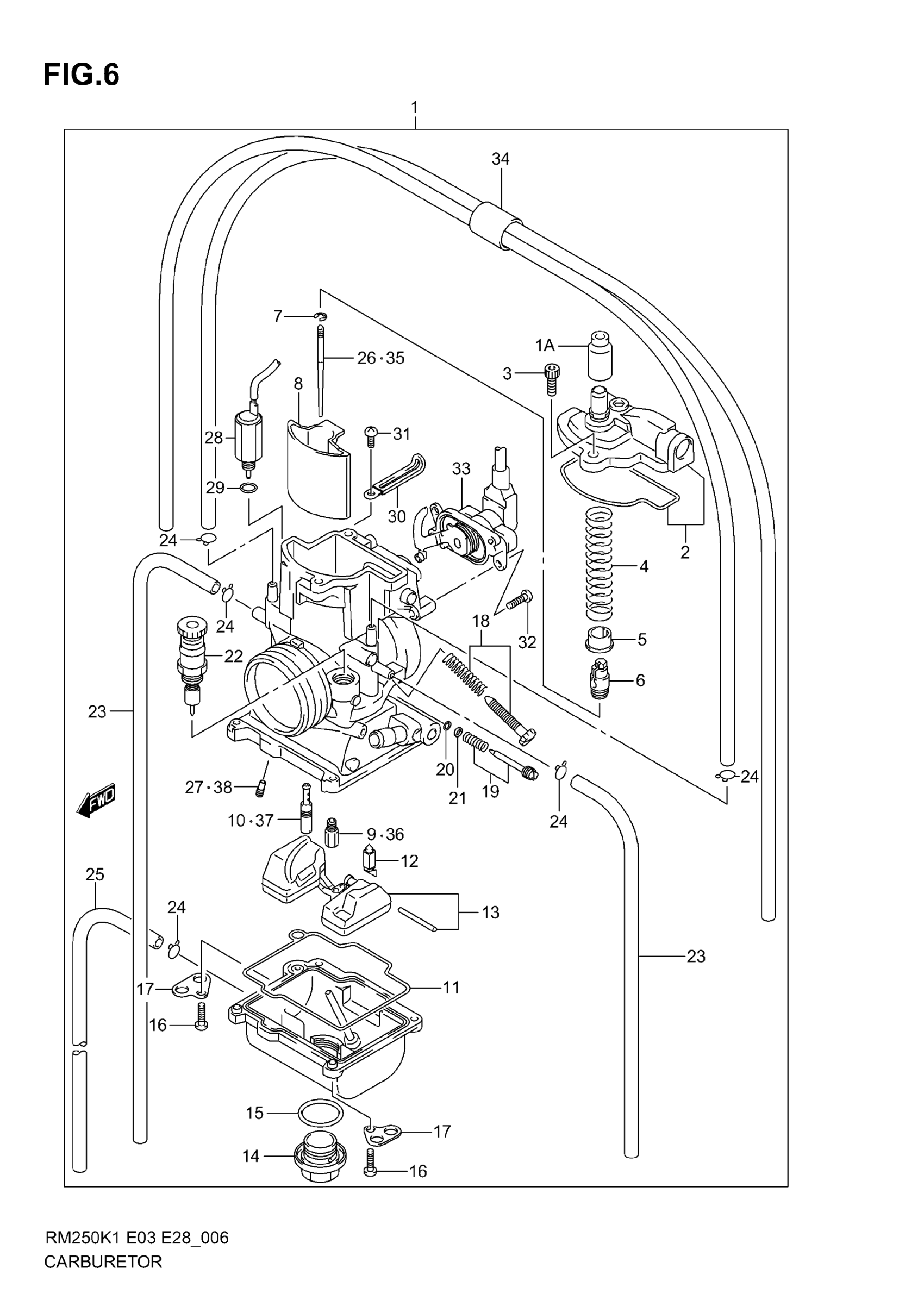

Find the part on the Carburetor diagram for your 2006 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki RM250 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY | E3

13200-37F01

1
Out of stock

1

CARBURETOR ASSY | E28; Includes Item(s) 1A - 34

13200-37F11

—
Out of stock

1A

CAP, CARBURETOR

13681-43D30

1
Out of stock

2

CAP SET, TOP

13260-37F00

1
Out of stock

3

SCREW

13262-37F00

2
Out of stock

4

SPRING, THROTTLE VALVE

13573-37F00

1
Out of stock

5

COLLAR, THROTTLE VALVE

13424-43D30

1
Out of stock

6

HOLDER, CABLE

13581-43D30

1
Out of stock

7

CLIP, NEEDLE

13394-28E00

1
Out of stock

8

VALVE, THROTTLE

13551-37F00

1
Out of stock

9

JET, MAIN (162) | E3

09491-32011

1
Out of stock

9

JET, MAIN (168) | E28

09491-33010

1
Out of stock

10

JET, PILOT (48) | E3

09492-48013

1
Out of stock

10

JET, PILOT (52) | E28

09492-55019

1
Out of stock

11

GASKET, FLOAT CHAMBER

13696-44E00

1
Out of stock

12

VALVE SET, FLOAT

13370-43D30

1
Out of stock

13

FLOAT SET

13240-36E20

1
Out of stock

14

BOLT, DRAIN

13247-28E00

1
Out of stock

15

O RING

13246-28E00

1
Out of stock

16

SCREW This part replaces 02112-34163.

02112-3416B

4
Out of stock

17

PLATE

13693-36E00

2
Out of stock

18

SCREW SET, STOP

13270-43D30

1
Out of stock

19

SCREW SET, AIR

13280-43D30

1
Out of stock

20

O RING

13295-26E00

1
Out of stock

21

WASHER

13291-26E00

1
Out of stock

22

STARTER VALVE

13410-37F00

1
Out of stock

23

HOSE (4X7X620) | RH L:620!400 LH L:620!360

13686-36E00

2
Out of stock

24

CLIP

09401-06101

5
Out of stock

25

HOSE (3.5X6.5X600) | L:600!330

09351-35653-600

1
Out of stock

26

NEEDLE, JET (N3WK) | E3

13383-37EQ0

1
Out of stock

26

NEEDLE, JET | E28

13383-37EQ0

1
Out of stock

27

JET, POWER (45) | E3

13345-37F00

1
Out of stock

27

JET, POWER (55) | E28

09492-55019

1
Out of stock

28

SOLENOID ASSY

13160-37E01

1
Out of stock

29

O RING

13453-37E00

1
Out of stock

30

CLAMP

13451-37E00

1
Out of stock

31

SCREW

13452-37E00

1
Out of stock

32

SCREW

13602-37F00

2
Out of stock

33

SENSOR ASSY

13580-37F00

1
Out of stock

34

HOSE SET

13451-37F00

1
Out of stock

35

NEEDLE, JET (N3WW) | OPT

13383-37EN0

1
Out of stock

35

NEEDLE, JET (N3WJ) | OPT

13383-37EP0

1
Out of stock

35

NEEDLE, JET (N3WK) | OPT

13383-37EQ0

1
Out of stock

35

NEEDLE, JET (N3WL) | OPT

13383-37ER0

1
Out of stock

35

NEEDLE, JET (N3WM) | OPT

13383-37ES0

1
Out of stock

35

NEEDLE, JET (N3YW) | OPT

13383-36EA0

1
Out of stock

35

NEEDLE, JET (N3YJ) | OPT

13383-36EB0

1
Out of stock

35

NEEDLE, JET (N3YK) | OPT

13383-36EC0

1
Out of stock

35

NEEDLE, JET (N3YL) | OPT

13383-36ED0

1
Out of stock

35

NEEDLE, JET (N3YM) | OPT

13383-36EE0

1
Out of stock

36

JET, MAIN (150) | OPT

09491-30018

1
Out of stock

36

JET, MAIN (152) | OPT

09491-30019

1
Out of stock

36

JET, MAIN (155) | OPT

09491-31012

1
Out of stock

36

JET, MAIN (158) | OPT

09491-31013

1
Out of stock

36

JET, MAIN (160) | OPT

09491-32010

1
Out of stock

36

JET, MAIN (162) | OPT

09491-32011

1
Out of stock

36

JET, MAIN (165) | OPT

09491-33009

1
Out of stock

36

JET, MAIN (168) | OPT

09491-33010

1
Out of stock

36

JET, MAIN (170) | OPT

09491-34010

1
Out of stock

36

JET, MAIN (172) | OPT

09491-34011

1
Out of stock

36

JET, MAIN (175) | OPT

09491-35009

1
Out of stock

36

JET, MAIN (178) | OPT

09491-35010

1
Out of stock

36

JET, MAIN (180) | OPT

09491-36008

1
Out of stock

36

JET, MAIN (185) | OPT

09491-37008

1
Out of stock

36

JET, MAIN (190) | OPT

09491-38011

1
Out of stock

36

JET, MAIN (195) | OPT

09491-39001

1
Out of stock

36

JET, MAIN (200) | OPT

09491-40013

1
Out of stock

36

JET, MAIN (205) | OPT

09491-41001

1
Out of stock

36

JET, MAIN (210) | OPT

09491-42006

1
Out of stock

37

JET, PILOT (35) | OPT

09492-35019

1
Out of stock

37

JET, PILOT (40) | OPT

09492-40022

1
Out of stock

37

JET, PILOT (42) | OPT

09492-42019

1
Out of stock

37

JET, PILOT (45) | OPT

09492-45032

1
Out of stock

37

JET, PILOT (48) | OPT

09492-48013

1
Out of stock

37

JET, PILOT (50) | OPT

09492-50023

1
Out of stock

37

JET, PILOT (52) | OPT

09492-52011

1
Out of stock

37

JET, PILOT (55) | OPT

09492-55017

1
Out of stock

37

JET, PILOT (58) | OPT

09492-58001

1
Out of stock

37

JET, PILOT (60) | OPT

09492-60016

1
Out of stock

38

JET, POWER (50) | OPT

09492-50025

1
Out of stock

38

JET, POWER (55) | OPT

09492-55019

1
Out of stock

38

JET, POWER (60) | OPT

09492-60018

1
Out of stock
