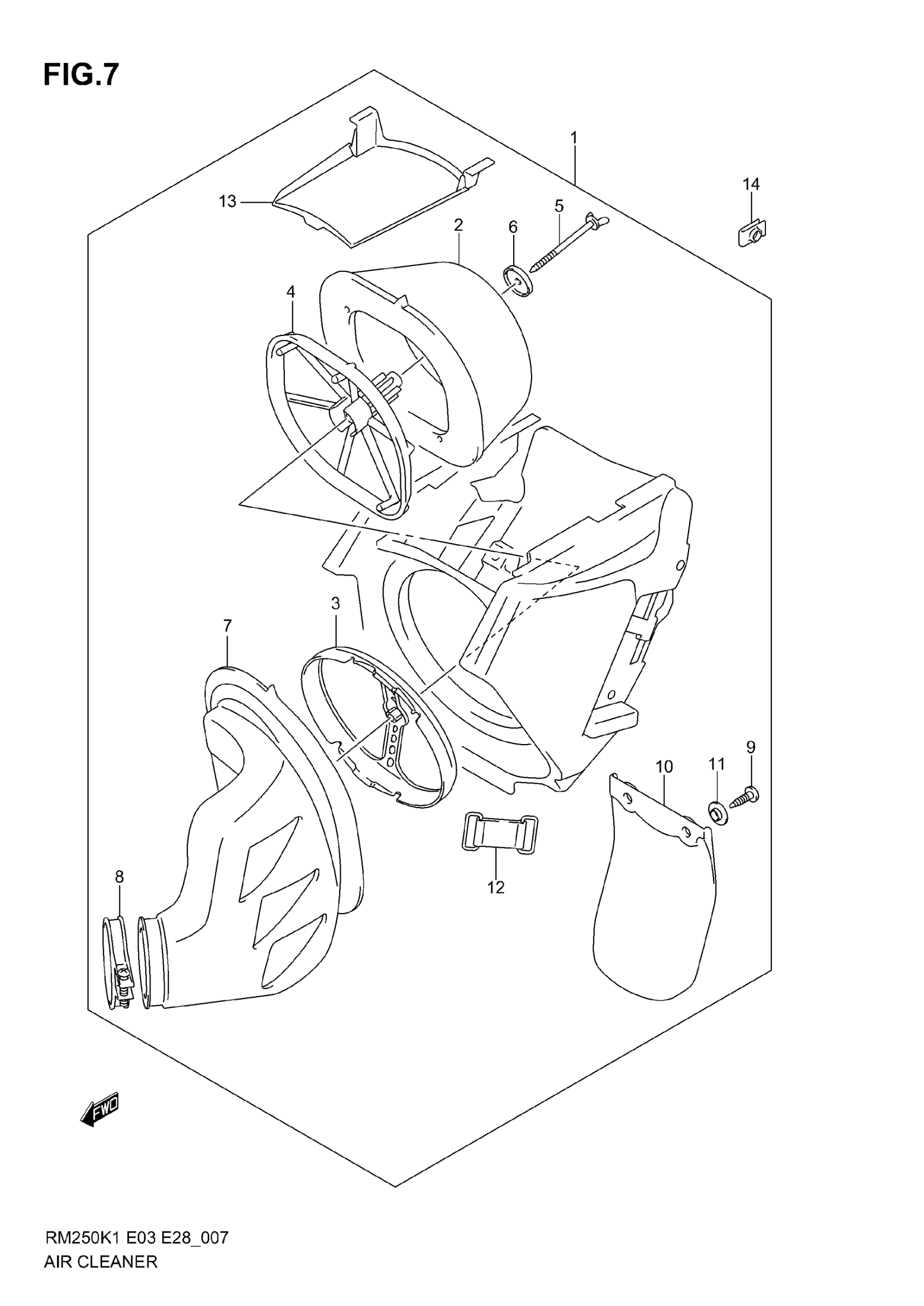

Suzuki RM250 (2006) AIR CLEANER (MODEL K1/K2) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL K1

13700-37F01

Unavailable

1

CLEANER ASSY, AIR | MODEL K2; Includes Item(s) 2 - 13

13700-37F10

Unavailable

2

FILTER ASSY

13780-36E20

Unavailable

3

BASE, FILTER

13790-36E00

$23.92

4

HOLDER, FILTER

13791-36E00

$15.43

5

BOLT, WING

13831-37E20

Unavailable

6

WASHER

13792-13A01

$4.34

7

TUBE, OUTLET | MODEL K1

13881-37F00

Unavailable

7

TUBE, OUTLET | MODEL K2

13881-37F10

Unavailable

8

CLAMP This part replaces 09402-70203.

09402-70902

$5.64

9

.SCREW

13831-35F00

$2.38

10

MUD GUARD

13738-36E01

$21.90

11

COLLAR, MUD GUARD

13838-02B00

$3.56

12

BAND, CDI UNIT

32942-14111

$8.62

13

CAP, CLEANER

13741-37F02

Unavailable

14

NUT This part replaces 71812-82010.

09148-06021

$3.56
