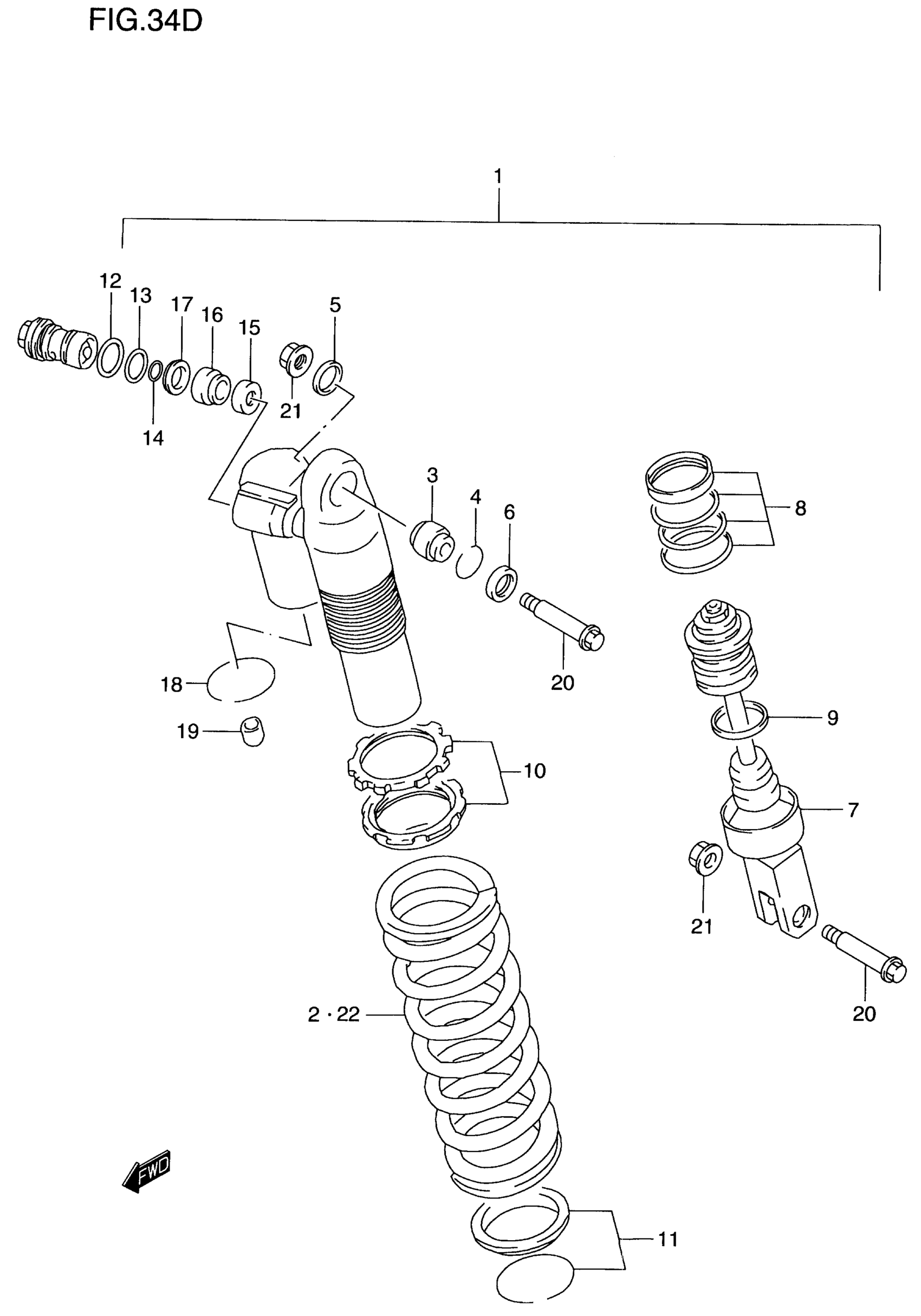

Suzuki RM250 (2000) SHOCK ABSORBER (MODEL Y) Diagram

#

Description
Price

1

ABSORBER ASSY, RR SHOCK (RED) | E3

62100-37EC0-37W

Unavailable

1

ABSORBER ASSY, RR SHOCK (RED) | E28; Includes Item(s) 2 - 19

62100-37ED0-37W

Unavailable

2

SPRING (K=5.0X5.4)

62211-36E90

Unavailable

3

BEARING (10X26X22)

62175-36E00

$102.82

4

RING

62277-27C40

$3.95

5

SEAL, DUST RH

62226-36E00

$10.12

6

SEAL, DUST LH

62226-36E10

$10.32

7

ROD, PISTON

62120-37EC0

Unavailable

8

O RING SET

62150-36EB0

$71.38

9

RING, STOPPER

62279-36E80

$6.85

10

ADJUSTER NUT SET

62190-36E50

Unavailable

11

SPRING SEAT SET

62220-36E50

Unavailable

12

O RING, OUTER

62131-28E00

$5.00

13

O RING, INNER

51174-36EB0

$5.33

14

O RING, CENTER

62132-36EB0

Unavailable

15

COLLAR

62227-36EB0

Unavailable

16

PIECE, BOTTOM

62252-36EB0

Unavailable

17

SEAT, VALVE

62251-36EB0

Unavailable

18

RING, STOPPER

62278-36E00

$8.60

19

CAP

51294-20400

$7.37

20

BOLT (10X47.5)

09103-10149

$3.70

21

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

22

SPRING (SOFT,K=4.8X5.2) | OPT

62211-36E90

Unavailable

22

SPRING (HARD,K=5.2) | OPT

62211-36E80

Unavailable
