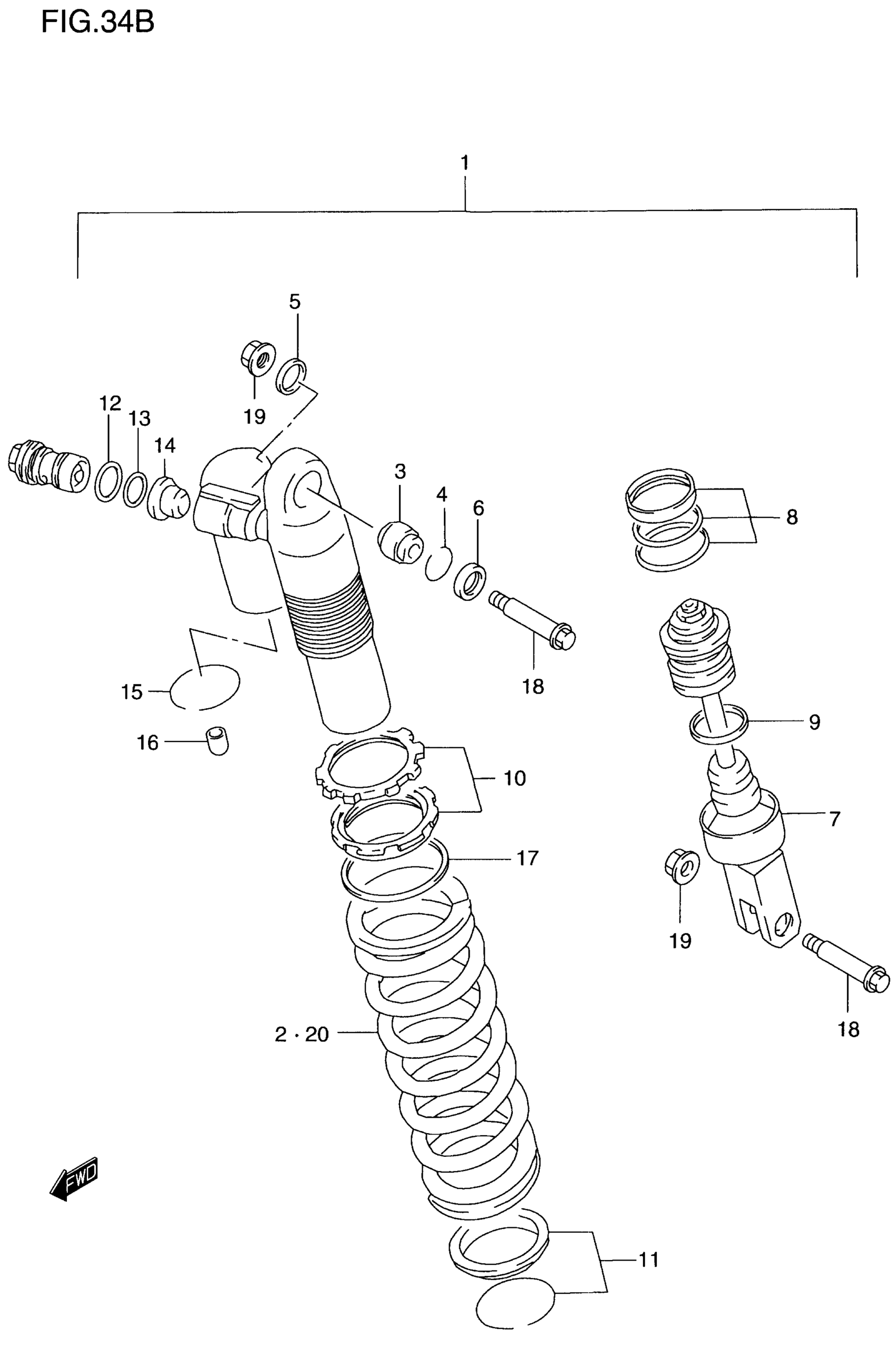

Suzuki RM250 (2000) SHOCK ABSORBER (MODEL W) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK (BLUE) (BLUE) (BLUE) | E3; Includes Item(s) 2 - 17

62100-37E60-Y5H

Unavailable

2

SPRING (K=4.9)

62211-36E30

Unavailable

3

BEARING (10X26X22)

62175-36E00

$102.82

4

RING

62277-27C40

$3.95

5

SEAL, DUST RH

62226-36E00

$10.12

6

SEAL, DUST LH

62226-36E10

$10.32

7

ROD, PISTON

62120-37E60

Unavailable

8

O RING SET

62150-36E50

$50.92

9

RING, STOPPER

62279-36E50

Unavailable

10

ADJUSTER NUT SET

62190-36E50

Unavailable

11

SPRING SEAT SET

62220-36E50

Unavailable

12

O RING

62131-28E00

$5.00

13

O RING, INNER

51174-43D00

$4.82

14

COLLAR

62227-36E00

Unavailable

15

RING, STOPPER

62278-36E00

$8.60

16

CAP

51294-20400

$7.37

17

SEAT, SPRING

62195-36E50

Unavailable

18

BOLT (10X47.5)

09103-10149

$3.70

19

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

20

SPRING (SOFT,K=4.7) | OPT

62211-36E20

Unavailable

20

SPRING (HARD,K=5.1) | OPT

62211-36E40

Unavailable
