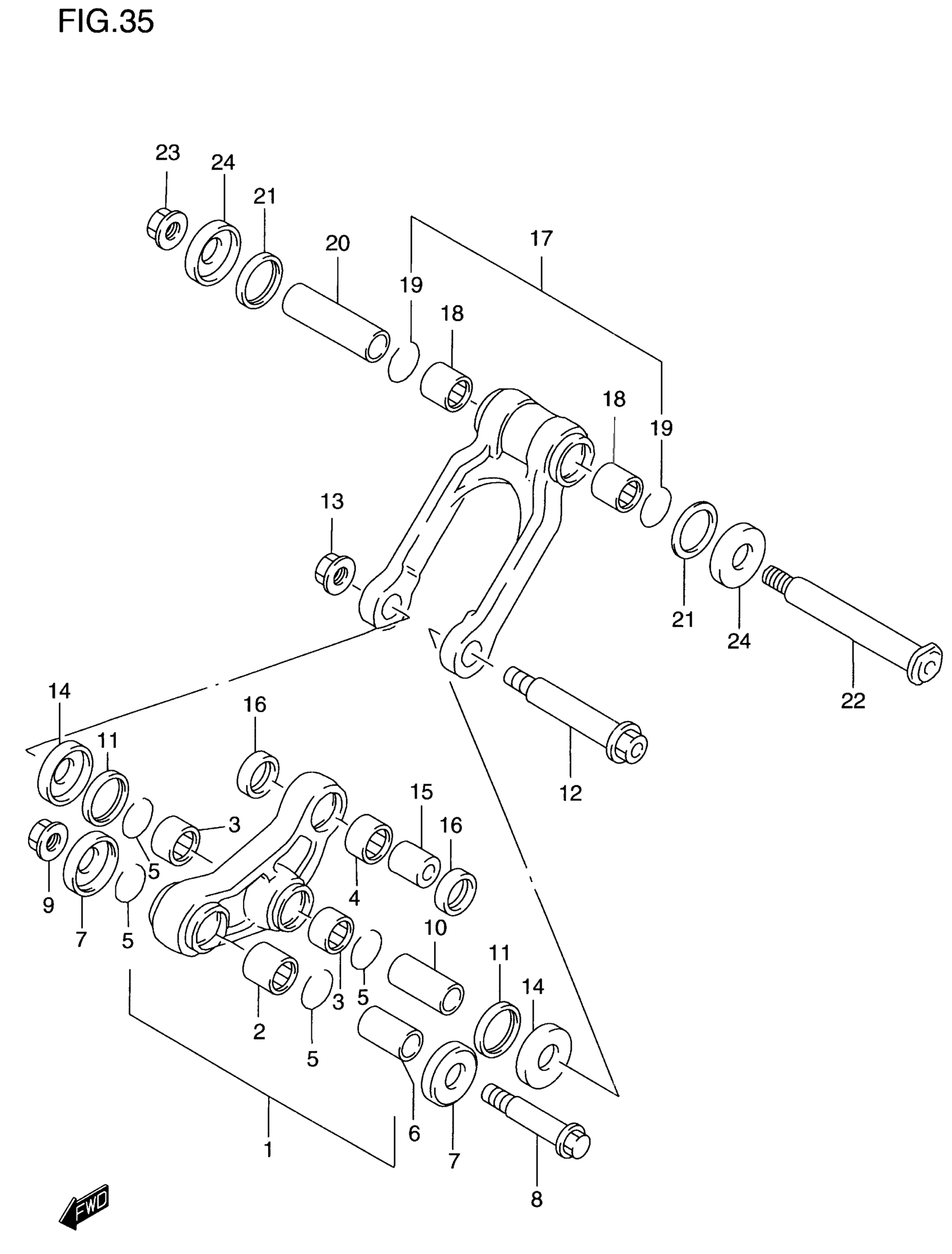

Suzuki RM250 (2000) REAR CUSHION LEVER (MODEL T/V) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | MODEL T

62600-37810

Unavailable

1

LEVER SET,REAR | MODEL V; Includes Item(s) 2 - 5 This part replaces 62600-36830.

62600-36831

Unavailable

2

BEARING, FRONT (20X27X25)

09263-20053

$27.58

3

BEARING (22X28X20)

09263-22062

$31.08

4

BEARING, REAR (20X26X12)

09263-20083

$24.56

5

RING, STOPPER

09381-26002

$2.07

6

SPACER, FRONT (12X20X34)

62317-27C10

$16.76

7

SEAL, DUST This part replaces 62162-28E00.

62162-28E01

$10.69

8

BOLT, FRONT (12X68)

62658-27C10

$11.68

9

NUT This part replaces 08319-31128.

08319-3112A

$3.76

10

SPACER, CENTER (16X22X58)

62646-36E00

Unavailable

11

SEAL, CENTER DUST

62683-36E00

Unavailable

12

BOLT, CENTER (14X101) | MODEL T

62621-36E00

Unavailable

12

BOLT, CENTER (14X109) | MODEL V

62621-28E01

Unavailable

13

NUT This part replaces 08319-31148.

08319-3114A

$9.66

14

CAP, CENTER

62682-36E00

Unavailable

15

SPACER, REAR (10X20X22)

62684-36E00

$16.57

16

SEAL, REAR DUST

09284-20001

$4.71

17

ROD SET, REAR CUSHION LEVER | MODEL T

62600-36821

Unavailable

17

ROD SET, REAR CUSHION LEVER | MODEL V; Includes Item(s) 18 - 19

62600-36840

Unavailable

18

BEARING (22X28X20)

09263-22062

$31.08

19

RING, STOPPER

09381-26002

$2.07

20

SPACER, ROD (16X22X72)

62645-36E00

Unavailable

21

SEAL, ROD DUST

62683-36E00

Unavailable

22

BOLT, ROD (14X132)

62622-36E00

Unavailable

23

NUT This part replaces 08319-31148.

08319-3114A

$9.66

24

CAP, ROD

62682-36E00

Unavailable
