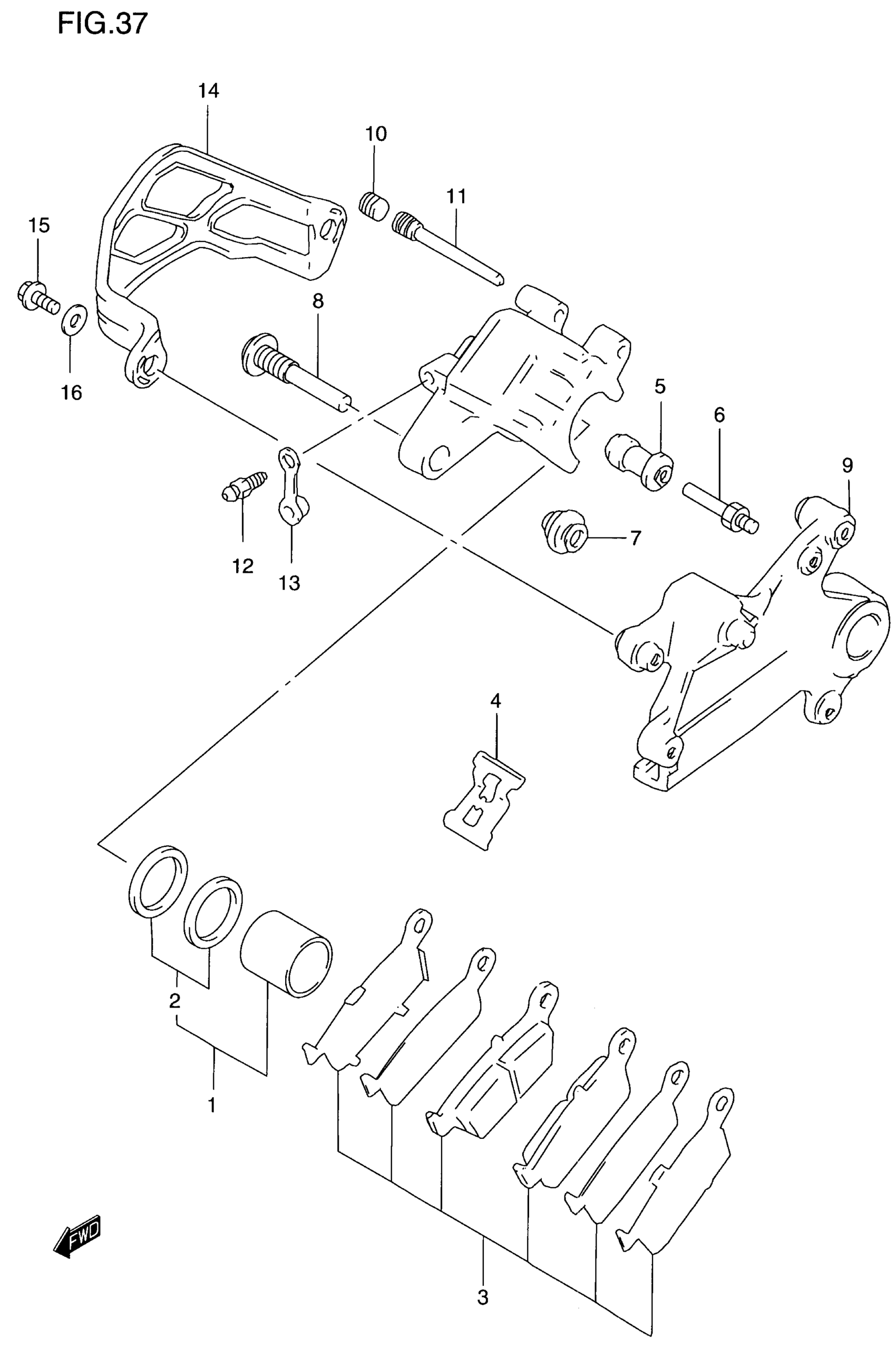

Suzuki RM250 (2000) REAR CALIPER Diagram

#

Description
Price

CALIPER ASSY, R | MODEL T This part replaces 69100-36E00.

69100-44E00-999

Unavailable

CALIPER ASSY, R | MODEL V This part replaces 69100-36E10.

69100-44E00-999

Unavailable

CALIPER ASSY, REAR | MODEL W This part replaces 69100-36E20.

69100-44E10-999

$265.48

CALIPER ASSY, REAR | MODEL X

69100-36E30

Unavailable

CALIPER ASSY, REAR | MODEL Y; Includes Item(s) 1 - 13 This part replaces 69100-36E40.

69100-37F20-999

$283.17

1

PISTON SET

69100-43810

$36.64

2

SEAL SET, PISTON

69100-36810

$9.03

3

PAD SET | MODEL T

69100-36820

Unavailable

3

PAD SET | MODEL V This part replaces 69100-36830.

69100-36860

Unavailable

3

PAD SET | MODEL W

69100-36840

$61.12

3

PAD SET | MODEL X

69100-36850

$51.95

3

PAD SET | MODEL Y

69100-36860

Unavailable

4

SPRING

59315-36E00

$9.72

5

BOOT

59386-13A00

$7.95

6

PIN

59382-27C30

$9.07

7

BOOT

59303-14500

$5.52

8

PIN

59305-36E00

$18.20

9

BRACKET | MODEL T/V/W

69351-36E00

$143.95

9

BRACKET | MODEL X

69350-36E10

Unavailable

9

BRACKET | MODEL Y

69350-36E20

Unavailable

10

PLUG, PIN

59146-21E10

$6.15

11

.PIN HANGER

69345-43D00

$11.55

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34

14

GUARD, REAR CALIPER

69725-36E00

Unavailable

15

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

16

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26
