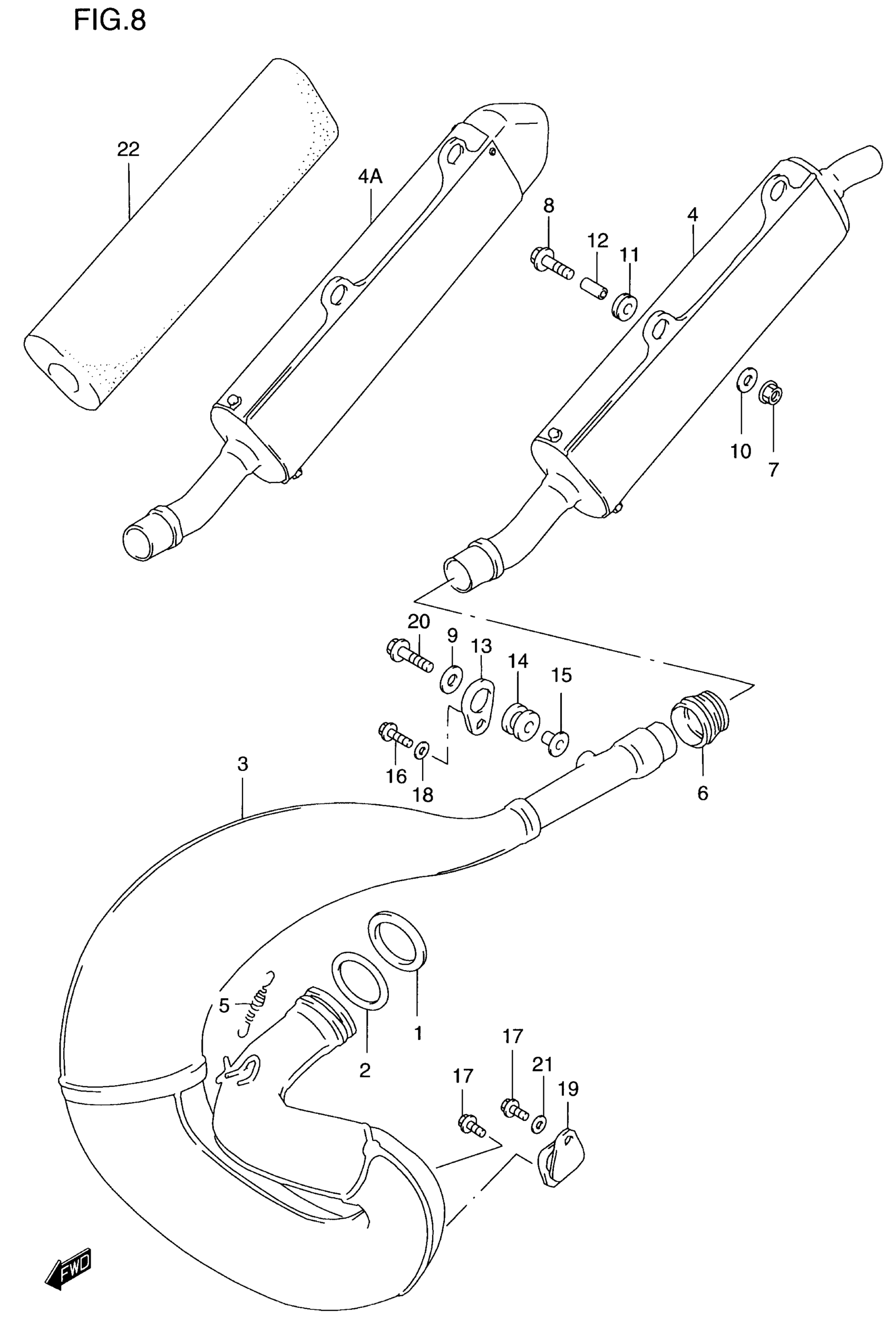

Suzuki RM250 (2000) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE | MODEL T/V

14172-28C30

$2.07

1

GASKET, EXHAUST PIPE | MODEL W

14172-37E00

Unavailable

1

GASKET, EXHAUST PIPE | MODEL X/Y

14172-28C30

$2.07

2

O RING, EXHAUST PIPE

14171-28C30

$19.98

3

MUFFLER, 1ST | MODEL T/V

14310-37E00

Unavailable

3

MUFFLER, 1ST | MODEL W

14310-37E10

Unavailable

3

MUFFLER, 1ST | MODEL X

14310-37E20

Unavailable

3

MUFFLER, 1ST | MODEL Y

14310-37E30

Unavailable

4

MUFFLER, 2ND | MODEL T This part replaces 14330-37E00.

14330-37E03

Unavailable

4

MUFFLER, 2ND | MODEL V This part replaces 14330-37E02.

14330-37E03

Unavailable

4

MUFFLER, 2ND | MODEL W

14330-37E03

Unavailable

4A

MUFFLER, 2ND | MODEL X/Y E3

14330-37E31

Unavailable

4A

MUFFLER, 2ND | MODEL X/Y E28

14330-37E20

Unavailable

5

SPRING This part replaces 09443-12042.

09443-12042-XC0

$8.24

6

CONNECTOR, 2ND MUFFLER

14771-28C02

$39.47

7

NUT

08319-31067

$2.03

8

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

9

WASHER (6.5X24X1.2) | MODEL T/V This part replaces 09160-06002.

09160-06114

$2.03

9

WASHER (6.5X24X1.2) | MODEL W/X/Y

09160-06114

$2.03

10

WASHER (6.5X24X1.2) | MODEL T/V This part replaces 09160-06002.

09160-06114

$2.03

10

WASHER (6.5X24X1.2) | MODEL W/X/Y

09160-06114

$2.03

11

CUSHION | MODEL T

09320-11008

$2.60

11

CUSHION | MODEL V/W/X/Y This part replaces 09320-11015.

09320-11008

$2.60

12

SPACER (6.5X11.5X12)

09180-06120

$2.32

13

PLATE, MOUNTING

14761-27C00

$8.76

14

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

15

SPACER

14763-36E00

$8.13

16

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

17

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

18

WASHER (6.5X18X1.6) | MODEL T This part replaces 09160-06057.

09160-06109

$1.49

18

WASHER (6.5X18X1.6) | MODEL V/W/X/Y

09160-06109

$1.49

19

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

$11.75

20

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

21

WASHER (6.5X18X1.6) | MODEL T This part replaces 09160-06057.

09160-06109

$1.49

21

WASHER (6.5X18X1.6) | MODEL V/W/X/Y

09160-06109

$1.49

22

SILENCER, MUFFLER | OPT MODEL T/V/W

14351-37E00

Unavailable

22

SILENCER, MUFFLER | OPT MODEL X/Y E33

14351-37E30

Unavailable

22

SILENCER, MUFFLER | OPT MODEL X/Y E28

14351-37E00

Unavailable
