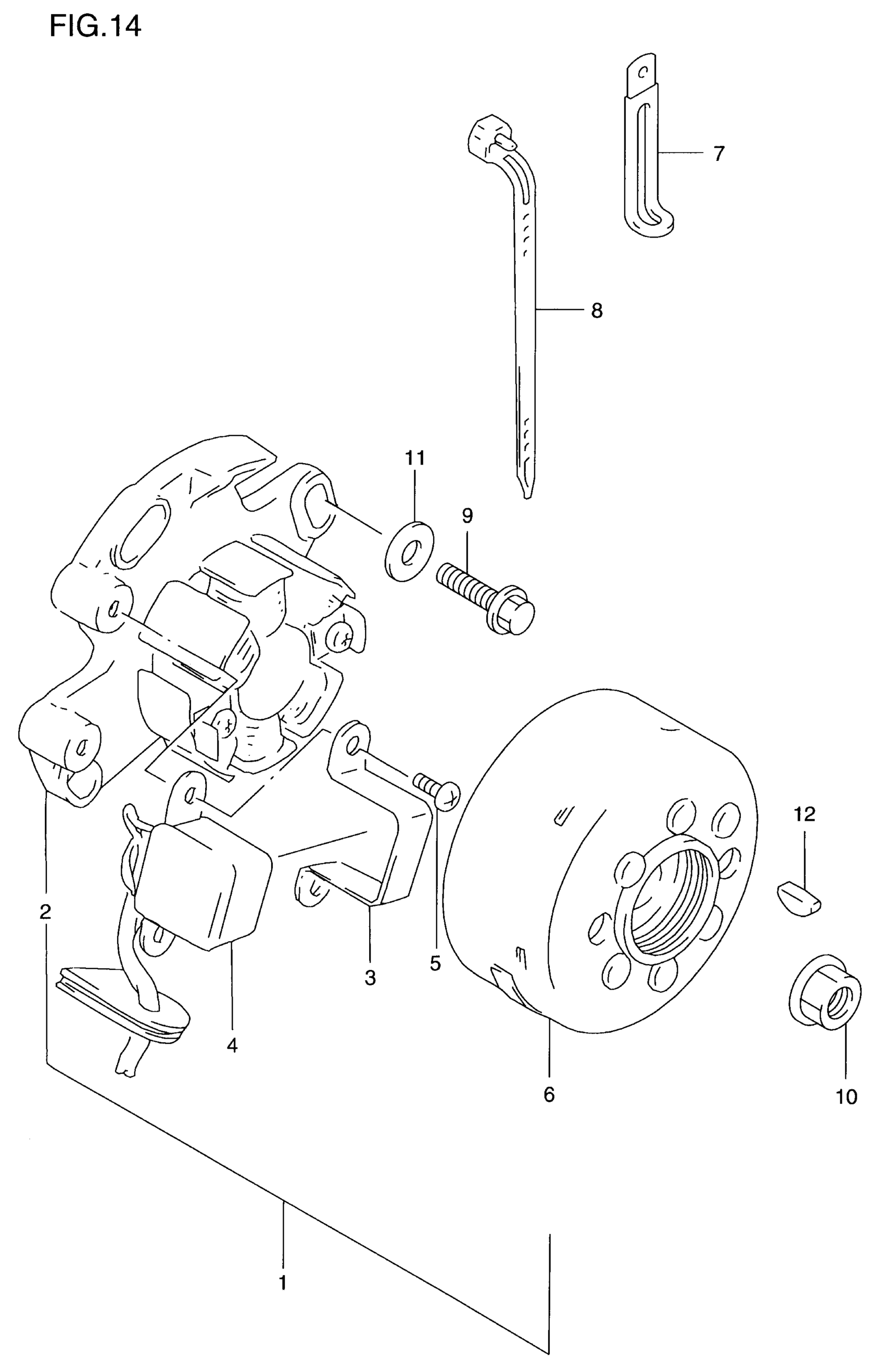

Suzuki RM250 (2000) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | MODEL T

32100-37E00

Unavailable

1

MAGNETO ASSY | MODEL V

32100-37E10

Unavailable

1

MAGNETO ASSY | MODEL W

32100-37E20

Unavailable

1

MAGNETO ASSY | MODEL X

32100-37E30

Unavailable

1

MAGNETO ASSY | MODEL Y; Includes Item(s) 2 - 6

32100-37E40

Unavailable

2

STATOR ASSY | MODEL T This part replaces 32101-37E00.

32101-37E10

Unavailable

2

STATOR ASSY | MODEL V

32101-37E10

Unavailable

2

STATOR ASSY | MODEL W

32101-37E20

Unavailable

2

STATOR ASSY | MODEL X

32101-37E30

Unavailable

2

STATOR ASSY | MODEL Y

32101-37E40

Unavailable

3

HOLDER, PICK UP

32157-27C01

Unavailable

4

COIL, PICK UP

32150-05D00

Unavailable

5

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

6

ROTOR | MODEL T This part replaces 32102-37E00.

32102-37E10

$365.36

6

ROTOR | MODEL V/W/X/Y

32102-37E10

$365.36

7

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

8

CLAMP (L:165)

09407-18402

$2.19

8

CLAMP (L:235)

09407-25401

$4.66

9

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

10

NUT This part replaces 08316-10123.

08316-1012A

$2.26

11

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

12

KEY, MAG

08341-31039

$1.89
