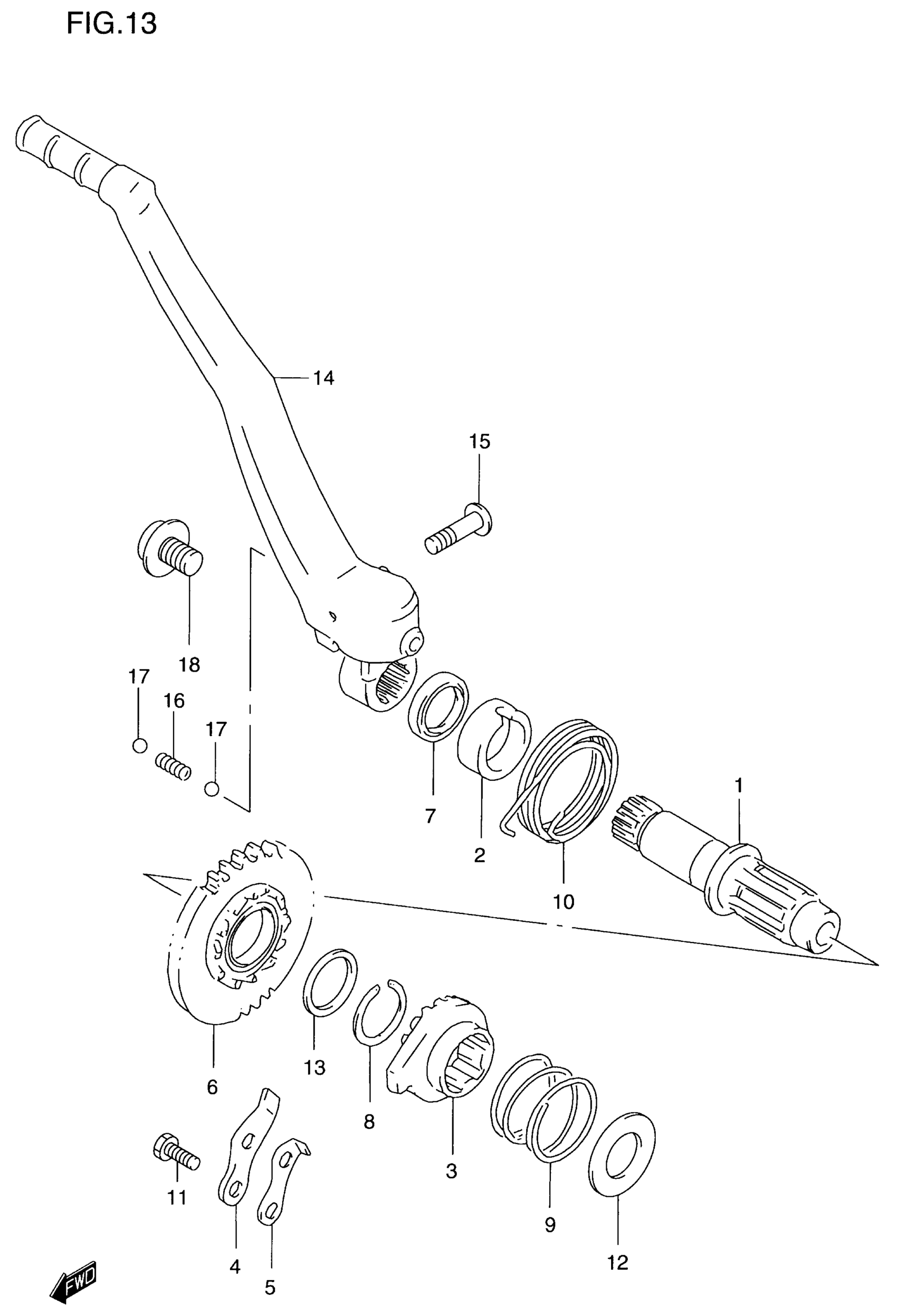

Suzuki RM250 (2000) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-05D02.

26211-05D03

Unavailable

2

GUIDE, KICK STARTER This part replaces 26221-01B00.

26221-01B01

$4.35

3

STARTER, KICK | MODEL T/V This part replaces 26231-28E20.

26231-28E21

Unavailable

3

STARTER, KICK | MODEL W/X/Y

26231-28E21

Unavailable

4

GUIDE, KICK STARTER

26232-40200

$7.08

5

STOPPER, KICK STARTER | MODEL T This part replaces 26233-40200.

26233-40201

$5.52

5

STOPPER, KICK STARTER | MODEL V/W/X/Y

26233-40201

$5.52

6

GEAR, KICK STARTER DRIVE | NT:28

26240-37E00

Unavailable

7

SEAL, KICK SHAFT OIL | 20X27X5

09283-20031

$5.24

8

CIRCLIP, KICK GEAR

09380-22006

$3.10

9

SPRING, KICK STOPPER

09440-32002

$2.27

10

SPRING, KICK STARTER SHAFT

09448-48012

$13.59

11

BOLT This part replaces 01500-06123.

01500-0612A

$1.78

12

PLATE, KICK SPRING

08211-17341

$2.50

13

WASHER (22X28X1.0) | MODEL T This part replaces 08211-22281.

09181-22139

$3.48

13

WASHER, KICK DRIVE GEAR | MODEL V/W/X/Y,22X28X1.0

09181-22139

$3.48

14

LEVER ASSY,KICK | MODEL T This part replaces 26300-37E00.

26300-37F01

$507.28

14

LEVER ASSY,KICK | MODEL V/W/X/Y; Includes Item(s) 15 - 17 This part replaces 26300-37E10.

26300-37F01

$507.28

15

SCREW, KICK STARTER LEVER | 6X27.5

09127-06016

$2.96

16

SPRING, KICK STARTER LEVER

09440-05031

$1.49

17

BALL

06111-07004

$1.49

18

BOLT, KICK STARTER LEVER

09103-08340

$4.17
