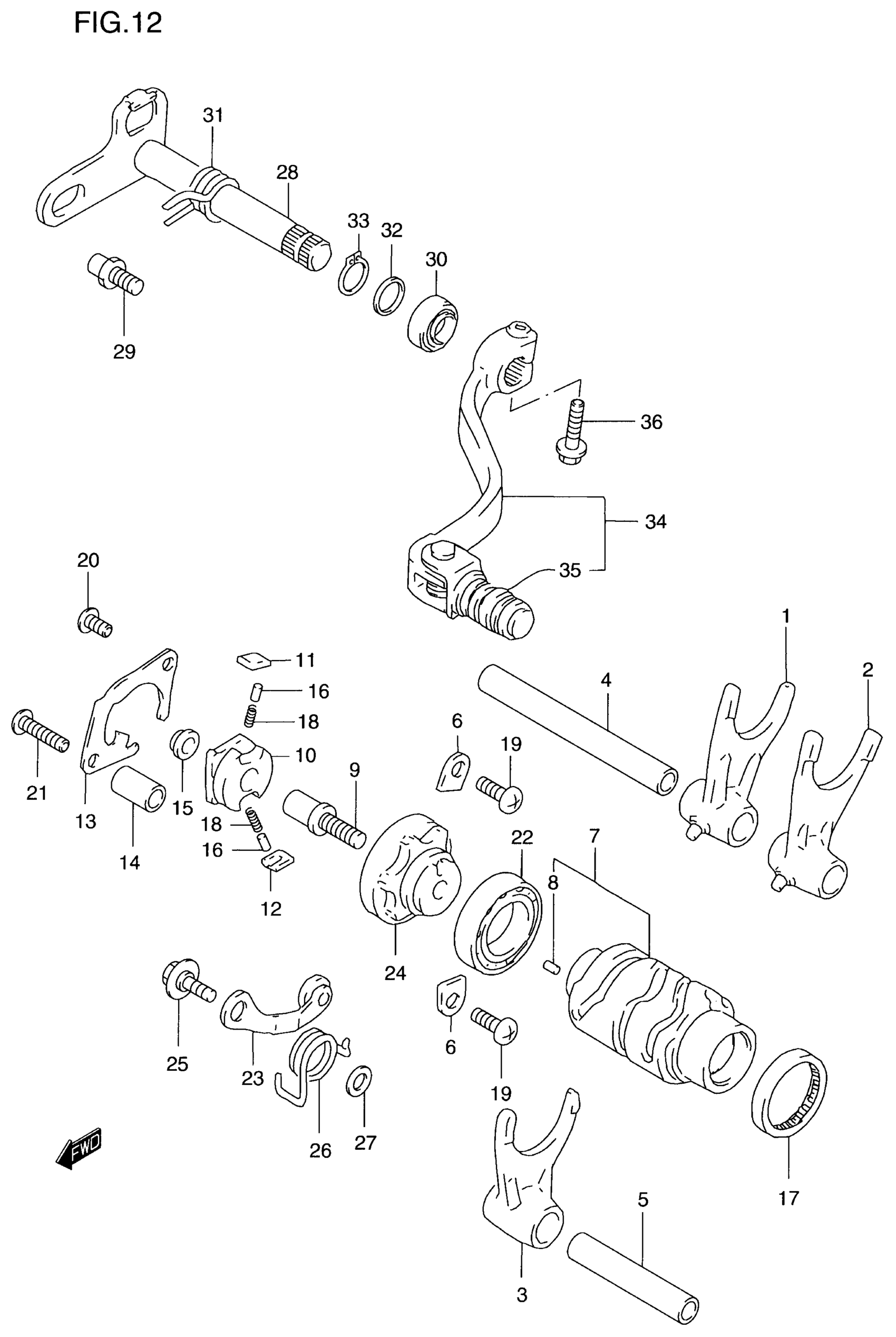

Suzuki RM250 (2000) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT,NO.1

25211-28C01

$82.92

2

FORK, GEAR SHIFT,NO.2 | MODEL T/V

25221-28C02

$87.77

2

FORK, GEAR SHIFT,NO.2 | MODEL W/X/Y

25221-37E10

$86.13

3

FORK, GEAR SHIFT,NO.3

25231-28C02

$83.32

4

SHAFT, GEAR FORK NO.1 | MODEL T/V/W This part replaces 25411-27C00.

25411-37F20

$22.22

4

SHAFT, GEAR FORK NO.1 | MODEL X/Y This part replaces 25411-27C01.

25411-37F20

$22.22

5

SHAFT, NO.2 (L:60) | MODEL T/V/W This part replaces 25421-27C00.

25421-27C01

$18.43

5

SHAFT, GEAR FORK,NO.2 | MODEL X/Y

25421-27C01

$18.43

6

RETAINER, SHIFT CAM BRG

24741-21A00

$2.81

7

CAM,GEAR SHIFT | Includes Item(s) 8

25310-37E00

Unavailable

8

PIN (4X13.8)

04221-04089

$1.49

9

PIN, SHIFT CAM DRIVEN GEAR | MODEL T This part replaces 25313-27C01.

25313-27C02

$13.05

9

PIN, SHIFT | MODEL V/W/X/Y

25313-27C02

$13.05

10

SHIFTER, GEAR SHIFT CAM | MODEL T This part replaces 25322-33C00.

25322-33C01

$64.68

10

SHIFTER, GEAR SHIFT CAM | MODEL V

25322-33C01

$64.68

10

SHIFTER, GEAR SHIFT CAM | MODEL W/X/Y

25322-36E00

$62.32

11

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

12

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

13

LIFTER, GEAR SHIFT PAWL

25331-37E00

Unavailable

14

SPACER, GEAR SHIFT PAWL | MODEL T,6.2X12X18

09180-06204

Unavailable

15

ROLLER, GEAR CAM SHIFTER

09180-07014

$4.11

16

PIN, SHIFT POLE (5X8)

09261-05003

$1.54

17

BEARING, SHIFT CAM,LH | 33X38X8

09263-33004

$26.08

18

SPRING, SHIFT PAWL RETURN

09440-04003

$1.54

19

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

20

SCREW | MODEL T This part replaces 02122-06123.

02122-0612A

$1.49

20

SCREW | MODEL V/W/X/Y This part replaces 02122-06123.

02122-0612A

$1.49

21

SCREW | MODEL T This part replaces 02122-06303.

02122-0630B

$2.06

22

BEARING, SHIFT CAM,RH

08140-69050

$35.66

23

STOPPER, SHIFT CAM

25350-28C20

Unavailable

24

PLATE, SHIFT CAM STOPPER

25381-28C20

Unavailable

25

BOLT, SHIFT CAM STOPPER | 6X14.3

09111-06041

$2.61

26

SPRING, SHIFT CAM | MODEL T

09448-18024

Unavailable

26

SPRING, SHIFT CAM | MODEL V/W/X/Y

09448-18025

Unavailable

27

WASHER, SHIFT CAM

08211-06121

$1.54

28

SHAFT, GEAR SHIFT

25510-37E00

Unavailable

29

STOPPER, GEAR SHIFT ARM

25671-38B00

$5.32

30

SEAL, SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.70

31

SPRING, SHIFT SHAFT RETURN

09444-20004

$8.13

32

WASHER (14X20X1.0) | MODEL T This part replaces 08211-14201.

09181-14139

$2.60

32

WASHER, GEAR SHAFT | MODEL V/W/X/Y,14X20X1.0

09181-14139

$2.60

33

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91

34

NO DESCRIPTION AVAILABLE | MODEL T/V/W/X This part replaces 25600-37E00.

25600-37E02

Unavailable

34

NO DESCRIPTION AVAILABLE | MODEL Y; Includes Item(s) 35 This part replaces 25600-37E10.

25600-37E02

Unavailable

35

RUBBER,GEAR SHI This part replaces 25652-27C00.

25652-27C01

$22.85

36

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45
