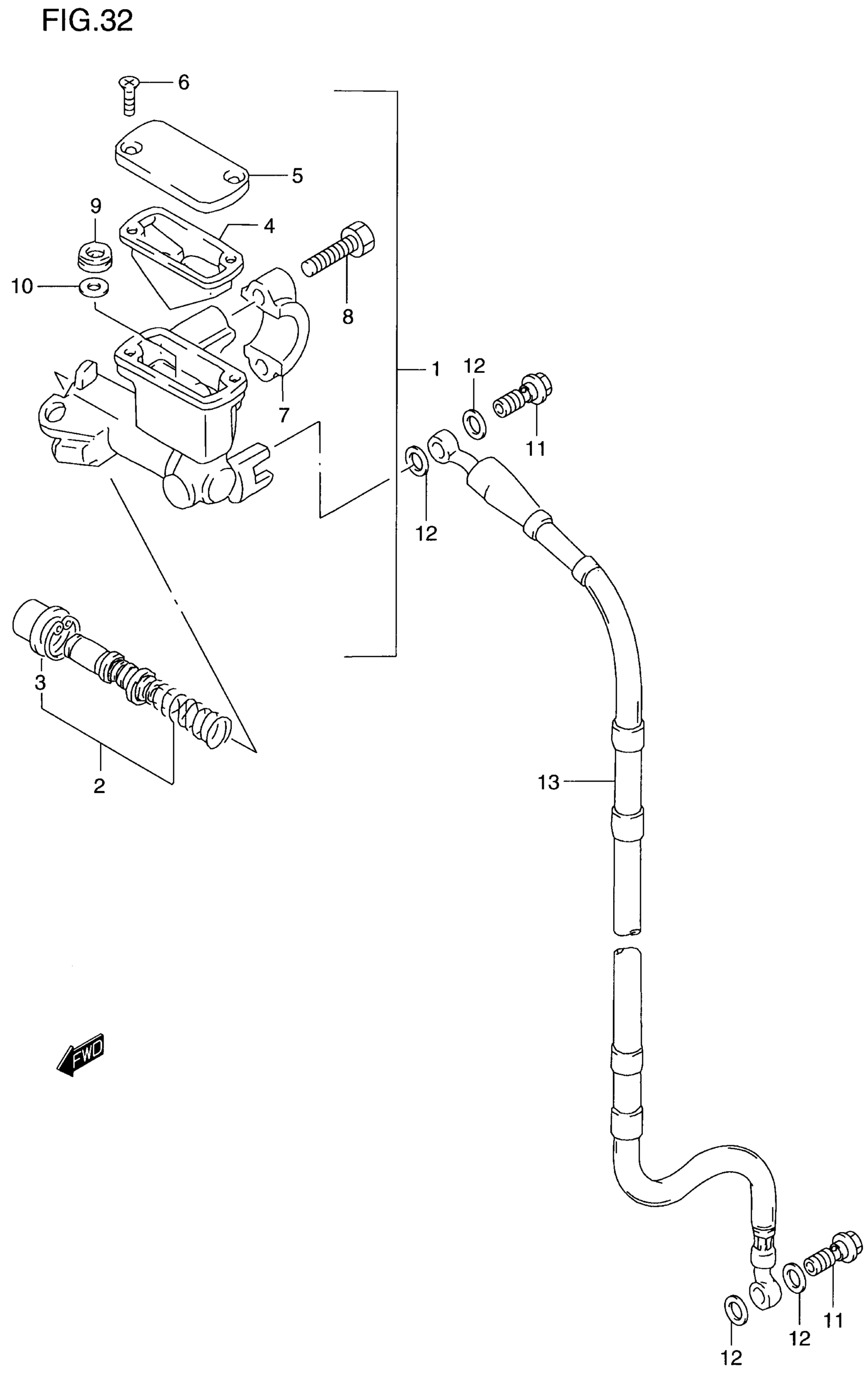

Suzuki RM250 (2000) FRONT MASTER CYLINDER (MODEL T/V/W) Diagram

CYLINDER ASSY, FRONT MASTER (BLACK) (BLACK) (SILVER) | MODEL T; Includes Item(s) 2 - 10

59600-36E00

Unavailable

PISTON & CUP SE This part replaces 59600-36830.

59600-36831

$48.22

BOOT

59666-36E00

$8.28

DIAPHRAGM

59667-36E00

$11.95

CAP (BLACK) | MODEL T

59669-36E00

Unavailable

CAP (SILVER) | MODEL V/W

59669-36E10

$19.72

SCREW

69689-49300

$1.91

.HOLDER | MODEL T

59671-36500

$12.21

HOLDER (SILVER) | MODEL V/W

59671-27C00

$17.02

BOLT

59675-27C00

$3.54

SEPARATOR

59748-36E00

$9.37

RING

69744-36E00

$4.02

UNION This part replaces 09360-10042.

09360-10062

$6.43

WASHER (10X15X1.5)

09161-10009

$1.84

HOSE, FRONT BRAKE | MODEL T This part replaces 59480-36E00.

59480-36E10

Unavailable

HOSE, FRONT BRAKE | MODEL V/W

59480-36E10

Unavailable
