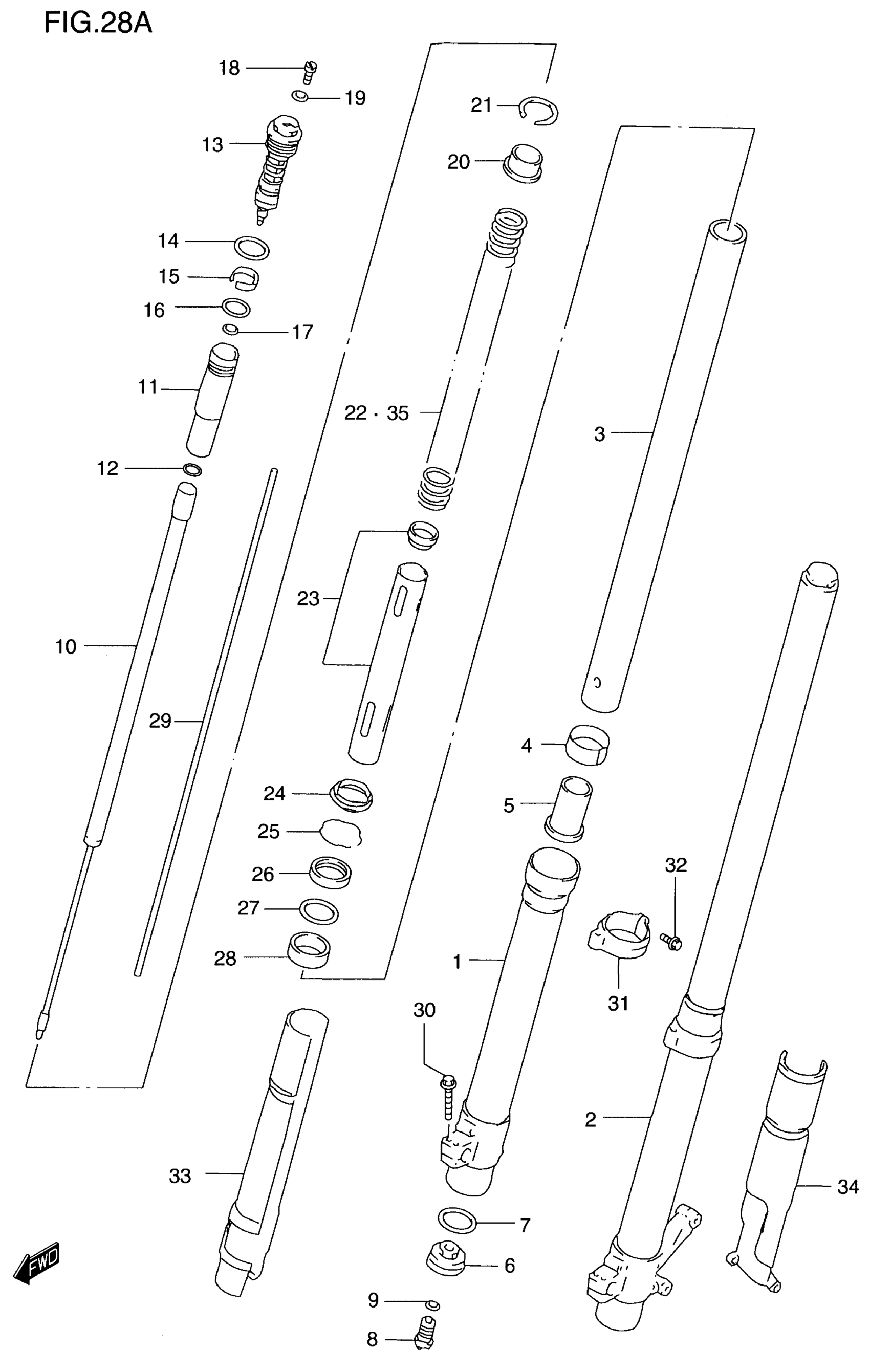

Suzuki RM250 (2000) FRONT DAMPER (MODEL V) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-37E30

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 30

51104-37E30

Unavailable

1

TUBE, OUTER RH

51130-36E20

Unavailable

2

TUBE, OUTER LH

51140-36E20

Unavailable

3

TUBE, INNER

51110-36E20

Unavailable

4

BUSH, SLIDE

51121-36E00

Unavailable

5

PIECE, OIL LOCK

51195-36E30

Unavailable

6

PLATE, END

51205-36E20

Unavailable

7

O RING

51117-27C40

$6.22

8

BOLT, CENTER

51170-36E20

Unavailable

9

O RING

51177-36E20

$4.10

10

ROD, DAMPER

51190-36E30

Unavailable

11

TANK, SUB

51198-36E20

Unavailable

12

O RING This part replaces 51174-36E30.

51174-29F00

$5.83

13

BOLT, FORK

51351-36E30

Unavailable

14

O RING, UPPER

51117-36E00

$6.93

15

BUSH, FORK BOLT SLIDE

51123-28E30

$15.22

16

O RING, CENTER

51174-36E20

Unavailable

17

O RING, LOWER

51175-36E20

$5.17

18

BOLT, PLUG

51357-28E30

$14.37

19

...O-RING

51358-28E30

$4.28

20

SPRING, STOPPER

51355-36E20

Unavailable

21

RING, STOPPER

51354-36E20

Unavailable

22

SPRING, FRONT (K=0.42)

51171-37E20

Unavailable

23

COLLAR, SPRING

51176-36E20

Unavailable

24

SEAL, DUST

51173-36E00

$38.65

25

..RING,STOPPER

51156-36E00

$8.43

26

..SEAL,OIL

51153-36E00

$37.22

27

..SPACER,SEAL

51158-36E00

$9.37

28

BUSH, GUIDE

51167-36E00

Unavailable

29

ROD, PUSH

51191-36E20

Unavailable

30

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

31

GUIDE, FRONT PROTECTOR RH

51211-36E00

Unavailable

31

GUIDE, FRONT PROTECTOR LH

51221-36E00

Unavailable

32

BOLT This part replaces 58628-43D00.

01547-06207

$2.01

33

PROTECTOR, OUTER TUBE RH (YELLOW) (YELLOW) (YELLOW) | OPT

51551-36E10-25Y

Unavailable

35

SPRING, FRONT (SOFT,K=0.40) | OPT

51171-37E30

Unavailable
