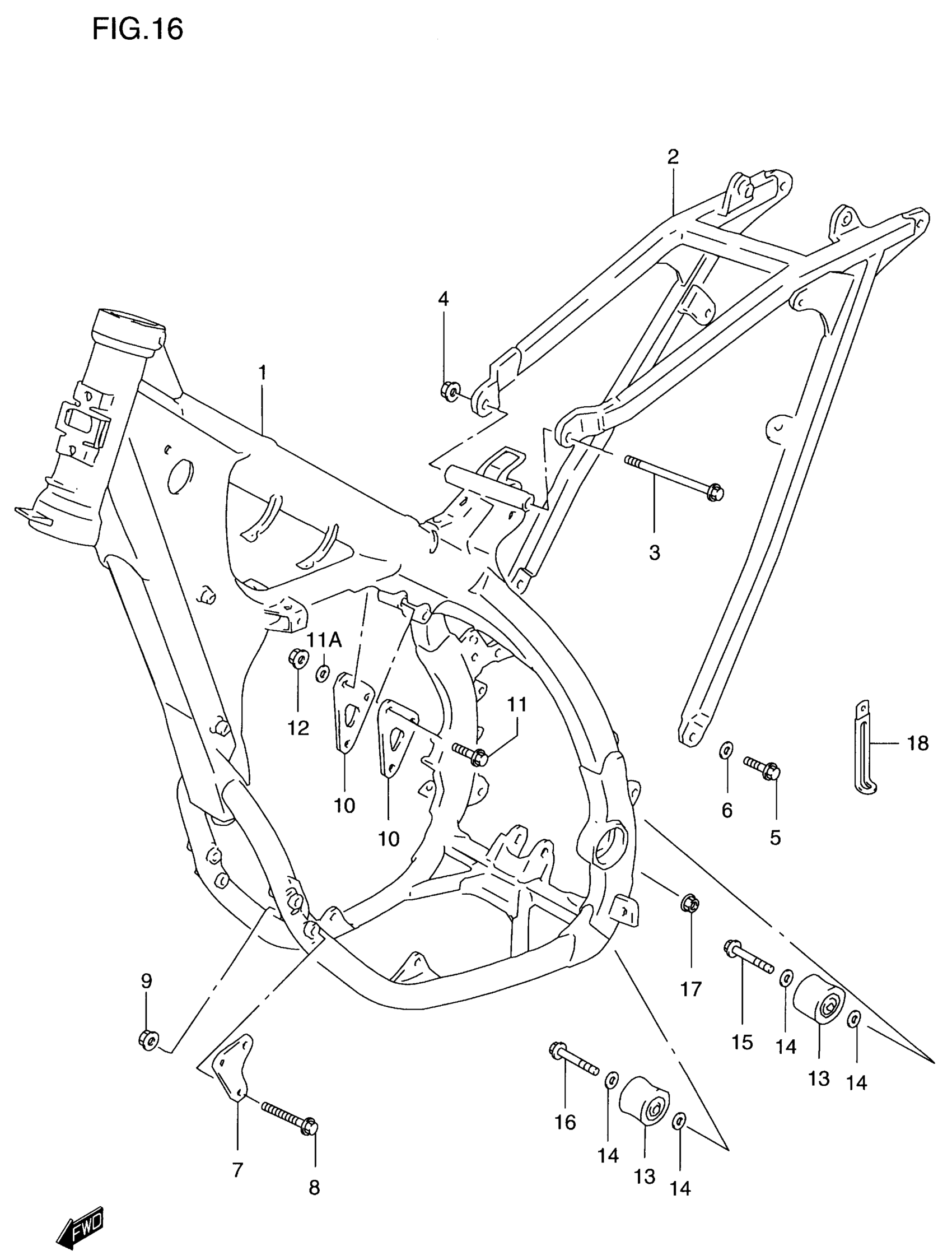

Suzuki RM250 (2000) FRAME Diagram

#

Description
Price

1

FRAME (CHARCOAL) | MODEL T

41100-37E00-24K

Unavailable

1

FRAME (CHARCOAL) | MODEL V

41100-37E10-24K

Unavailable

1

FRAME (CHARCOAL) | MODEL W

41100-37E20-24K

Unavailable

1

FRAME (CHARCOAL) | MODEL X

41100-37E30-24K

Unavailable

1

FRAME (CHARCOAL) | MODEL Y

41100-37E40-24K

Unavailable

2

RAIL, SEAT

41200-36E00

Unavailable

3

BOLT, UPPER

09103-08109

$3.18

4

NUT

09159-08034

$1.62

5

BOLT, LH (8X16) This part replaces 09104-08019.

09104-08035

$2.69

6

WASHER | MODEL T/V/W

08322-01087

$2.13

6

WASHER | MODEL X/Y

09160-08122

$2.77

7

PLATE, ENGINE MOUNT FRONT

41991-37E00

Unavailable

8

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

$3.49

9

NUT | MODEL T/V/W

09159-08034

$1.62

9

NUT | MODEL X/Y

09159-08067

$5.57

10

PLATE, ENGINE MOUNT UPPER

41993-37E00

Unavailable

11

BOLT

09103-08043

$3.18

11A

WASHER

09164-08011

$2.71

12

NUT

09159-08067

$5.57

13

ROLLER, CHAIN CONTROL

43910-27C11

$64.67

14

WASHER | MODEL T

08211-08121

$1.99

14

WASHER | MODEL V/W/X/Y

09181-08111

$1.93

15

BOLT, UPPER

09103-08083

$3.70

16

BOLT, LOWER

09103-08043

$3.18

17

NUT, LOWER

08319-31087

$2.32

18

CLAMP (L:65) | MODEL T/V This part replaces 09404-08418.

09404-08421

$2.07

18

CLAMP | MODEL W/X/Y

09404-08206

$3.72
