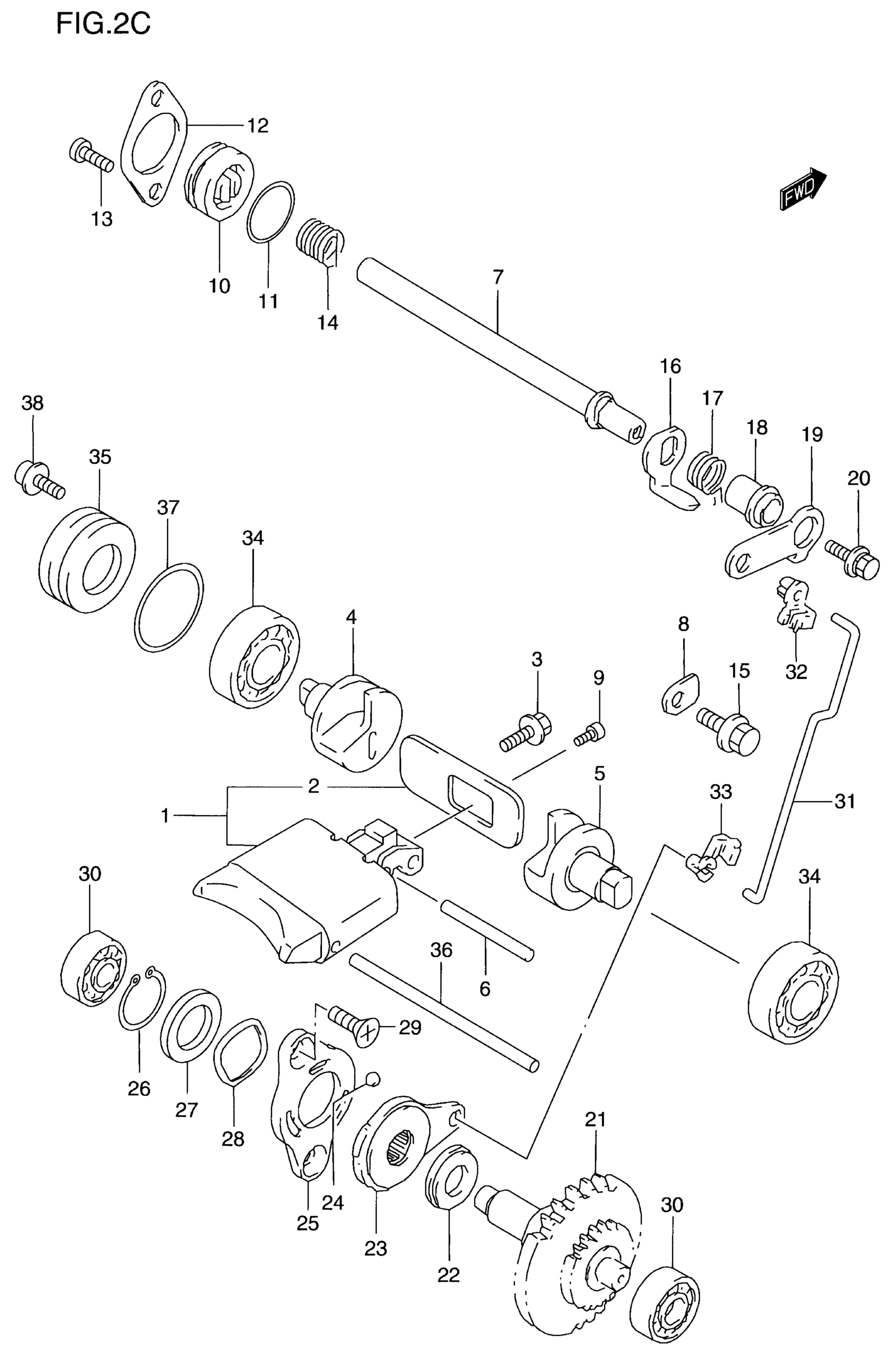

Suzuki RM250 (2000) EXHAUST VALVE (MODEL X/Y) Diagram

#

Description
Price

1

VALVE, EXHAUST MAIN | MODEL X

11206-37E30

Unavailable

1

VALVE, EXHAUST MAIN | MODEL Y; Includes Item(s) 2

11206-37E40

Unavailable

2

GUIDE, EXHAUST VALVE

11261-37E30

Unavailable

3

.SCREW This part replaces 02112-15123.

02142-0512A

$1.49

4

NO DESCRIPTION AVAILABLE This part replaces 11255-37E30.

11255-37E31

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 11256-37E30.

11256-37E31

Unavailable

6

PIN

09261-04003

Unavailable

7

SHAFT, EXHAUST VALVE

11259-37E00

Unavailable

8

RETAINER, EX VALVE STOP

24741-21A00

$2.81

9

BOLT (4X8)

09106-04003

$2.07

10

CAP, EXHAUST VALVE

11258-27C01

Unavailable

11

O RING(D:1.9,ID This part replaces 09280-23002.

09280-23003

$1.80

12

RETAINER, EXHAUST VALVE | MODEL X This part replaces 11265-00B21.

11265-00B22

Unavailable

12

RETAINER, EXHAUST VALVE | MODEL Y

11265-00B22

Unavailable

13

SCREW This part replaces 02162-05123.

02162-0512A

$1.98

14

SPRING | MODEL X

11257-37E30

Unavailable

14

SPRING | MODEL Y

11257-36E00

$6.43

15

BOLT This part replaces 01547-06103.

01547-0610B

$2.45

16

LEVER, EXHAUST VALVE NO.2

11267-00B21

$4.46

17

SPRING

09444-16010

Unavailable

18

SPACER This part replaces 11268-01B00.

11268-01B01

$8.65

19

LEVER, EXHAUST VALVE NO.1

11266-28C10

Unavailable

20

BOLT (5X12)

09118-05005

$3.20

21

GOVERNOR ASSY, EXHAUST VALVE

12670-37E11

Unavailable

22

BEARING (10.1X22X2.8)

09263-10002

$10.19

23

ACTUATOR, EXHAUST VALVE

12680-01820

Unavailable

24

BALL

06111-06003

$1.49

25

STATOR, ACTUATOR

12682-01B02

$36.17

26

CIRCLIP

09380-19003

$2.15

27

SHIM (19.1X25X0.3)

09181-19004

$3.78

28

LOCK WASHER

09164-19001

$4.69

29

SCREW (5X10)

09120-05003

$1.91

30

BEARING

09262-08005

$12.67

31

ROD, EXHAUST VALVE

12685-37E30

Unavailable

32

BUSH, EXHAUST VALVE ROD NO.1

12686-01B00

$1.65

33

BUSH, EXHAUST VALVE ROD NO.2

12687-01B00

$1.65

34

BEARING, SIDE VALVE

08112-62017

$14.29

35

CAP, EX SIDE VALVE

11262-37E30

Unavailable

36

PIN

09202-04020

Unavailable

37

O RING (D:3.1,ID:26.4)

09280-26006

$2.76

38

.SCREW This part replaces 02112-15123.

02142-0512A

$1.49
