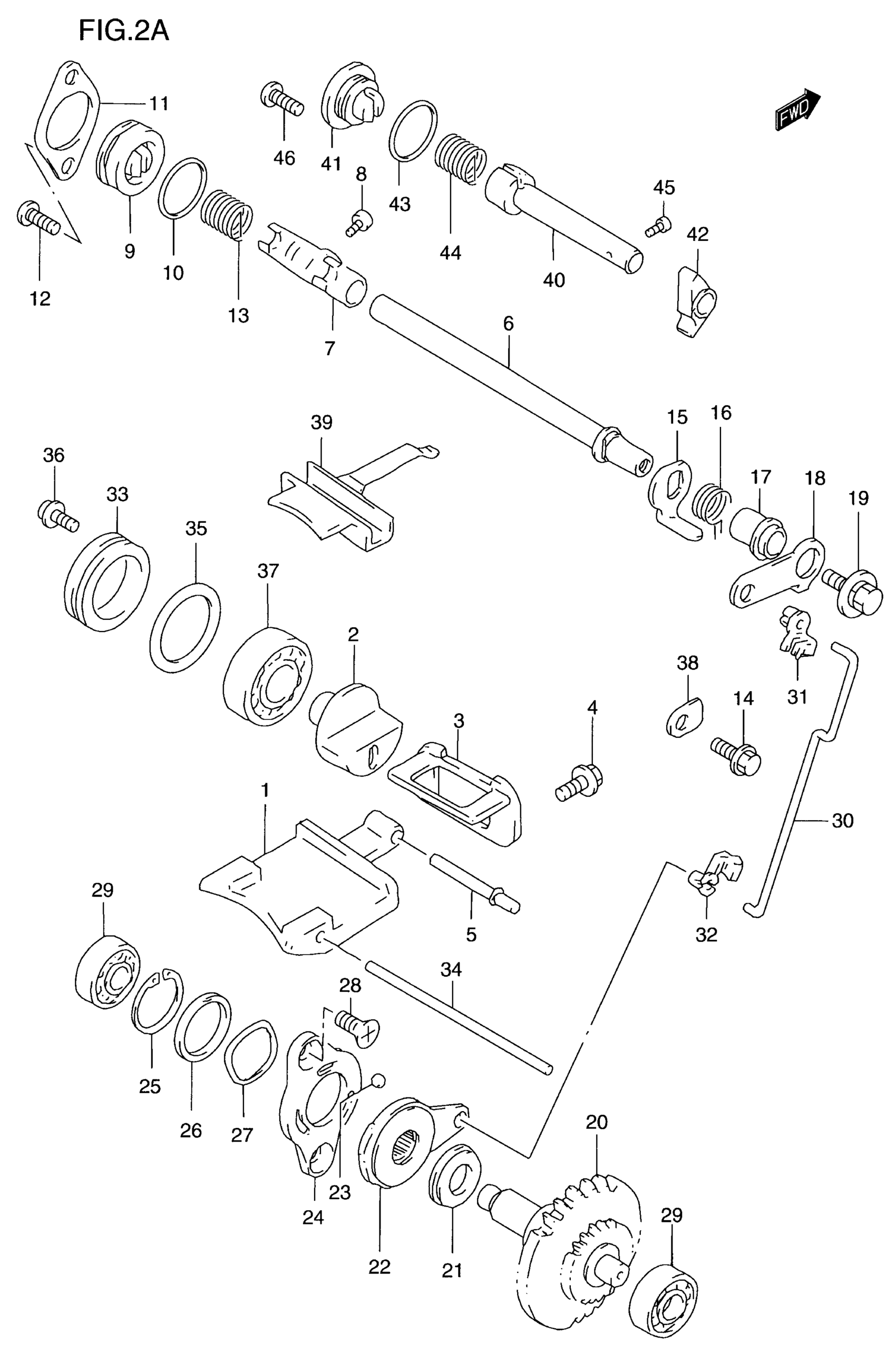

Suzuki RM250 (2000) EXHAUST VALVE (MODEL V) Diagram

#

Description
Price

1

VALVE, EXHAUST MAIN

11254-37E10

Unavailable

2

VALVE, EXHAUST SIDE

11255-37E10

Unavailable

3

GUIDE, EXHAUST VALVE

11261-37E10

Unavailable

4

.SCREW This part replaces 02112-15123.

02142-0512A

$1.49

5

PIN

11253-37E00

Unavailable

6

SHAFT, EXHAUST VALVE

11259-37E00

Unavailable

7

ARM, EXHAUST VALVE SHAFT

11264-37E00

Unavailable

8

BOLT (4X8)

09106-04003

$2.07

9

CAP, EXHAUST VALVE

11258-27C01

Unavailable

10

O RING(D:1.9,ID This part replaces 09280-23002.

09280-23003

$1.80

11

RETAINER, EXHAUST VALVE This part replaces 11265-00B21.

11265-00B22

Unavailable

12

SCREW This part replaces 02162-05123.

02162-0512A

$1.98

13

SPRING

09448-17030

Unavailable

14

BOLT This part replaces 01547-06103.

01547-0610B

$2.45

15

LEVER, EXHAUST VALVE NO.2

11267-00B21

$4.46

16

SPRING

09444-16010

Unavailable

17

SPACER This part replaces 11268-01B00.

11268-01B01

$8.65

18

LEVER, EXHAUST VALVE NO.1

11266-28C10

Unavailable

19

BOLT (5X12)

09118-05005

$3.20

20

GOVERNOR ASSY, EXHAUST VALVE

12670-37E11

Unavailable

21

BEARING (10.1X22X2.8)

09263-10002

$10.19

22

ACTUATOR, EXHAUST VALVE

12680-01820

Unavailable

23

BALL

06111-06003

$1.49

24

STATOR, ACTUATOR

12682-01B02

$36.17

25

CIRCLIP

09380-19003

$2.15

26

SHIM (19.1X25X0.3)

09181-19004

$3.78

27

LOCK WASHER

09164-19001

$4.69

28

SCREW (5X10)

09120-05003

$1.91

29

BEARING

09262-08005

$12.67

30

ROD, EXHAUST VALVE

12685-37E01

Unavailable

31

BUSH, EXHAUST VALVE ROD NO.1

12686-01B00

$1.65

32

BUSH, EXHAUST VALVE ROD NO.2

12687-01B00

$1.65

33

CAP, EX SIDE VALVE

11262-37E00

Unavailable

34

PIN

09202-04020

Unavailable

35

O RING (D:3.1,ID:26.4)

09280-26006

$2.76

36

.SCREW This part replaces 02112-15123.

02142-0512A

$1.49

37

BEARING, SIDE VALVE

08112-62017

$14.29

38

RETAINER, EX VALVE STOP

24741-21A00

$2.81

39

VALVE, EXHAUST MAIN MID

11272-37E10

Unavailable

40

SHAFT, CYLINDER COVER NO.2

11273-37E10

Unavailable

41

CAP, EXHAUST VALVE This part replaces 11274-37E10.

11274-37E11

Unavailable

42

ARM

11275-37E10

Unavailable

43

O RING (D:1.9,ID:14.5)

09280-15006

$2.90

44

SPRING

11257-37E10

$5.67

45

BOLT (4X8)

09106-04003

$2.07

46

.SCREW This part replaces 02112-15123.

02142-0512A

$1.49
