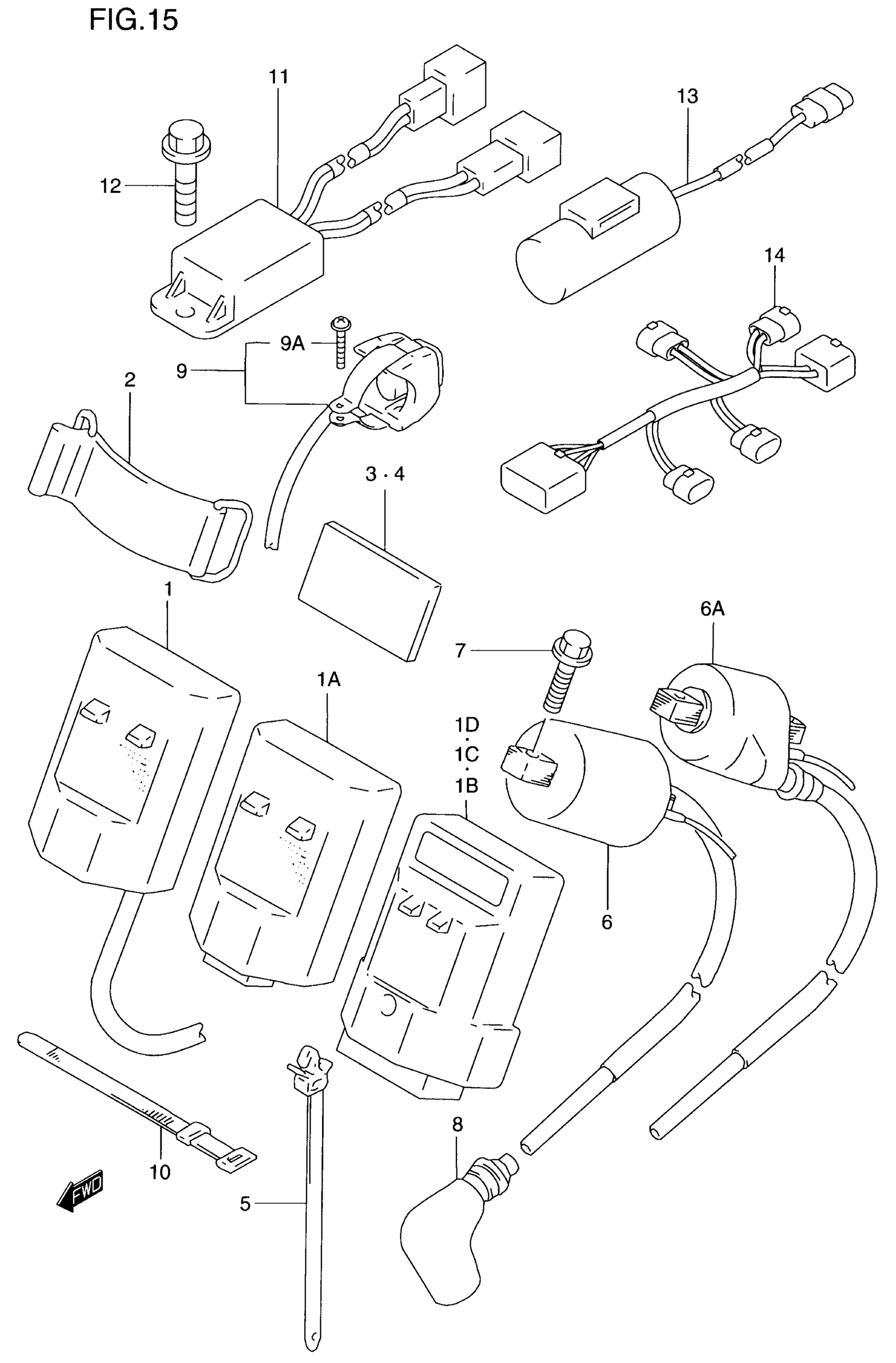

Suzuki RM250 (2000) ELECTRICAL Diagram

#

Description
Price

1

CDI, UNIT | MODEL T

32900-37E00

Unavailable

1

CDI, UNIT | MODEL V

32900-37E10

Unavailable

1A

CDI, UNIT | MODEL W

32900-37E20

Unavailable

1B

CDI, UNIT | MODEL X

32900-37E30

Unavailable

1C

CDI, UNIT | MODEL Y

32900-37E50

Unavailable

1D

CDI, UNIT | MODEL Y E28

32900-37E40

Unavailable

2

BAND, CDI UNIT | MODEL T/V/W/X

32942-14301

$11.89

2

BAND, CDI UNIT | MODEL Y

32942-14111

$8.62

3

PROTECTOR (170X95X3) | CUT AS REQUIRED PROFILE (60X45)

33651-37000

$4.48

4

PROTECTOR (170X95X3) | CUT AS REQUIRED PROFILE (20X11)

33651-37000

$4.48

5

CLAMP (L:105)

09407-11402

$1.80

5

CLAMP (L:235)

09407-25401

$4.66

6

COIL ASSY, IGNITION | MODEL T

33410-36E00

Unavailable

6A

COIL ASSY, IGNITION | MODEL V/W/X/Y This part replaces 33410-37E00.

33410-08G00

$104.07

7

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

8

CAP, SPARK PLUG This part replaces 33510-20A01.

33510-20A02

$24.39

9

SWITCH ASSY,ENGINE STOP | Includes Item(s) 9A

37820-36E00

$25.46

9A

SCREW

02112-33165

$1.49

10

CLAMP, ENGINE STOP (L:128)

09407-12402

$3.04

11

RECTIFIER ASSY | MODEL W/X/Y

32800-37E20

Unavailable

12

BOLT | MODEL W/X/Y This part replaces 01547-06123.

01547-0612B

$1.49

13

CONDENSER ASSY | MODEL W/X/Y

33640-37E20

Unavailable

14

HARNESS, WIRING | MODEL Y

36610-37E40

Unavailable
